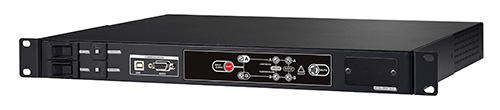

ATS

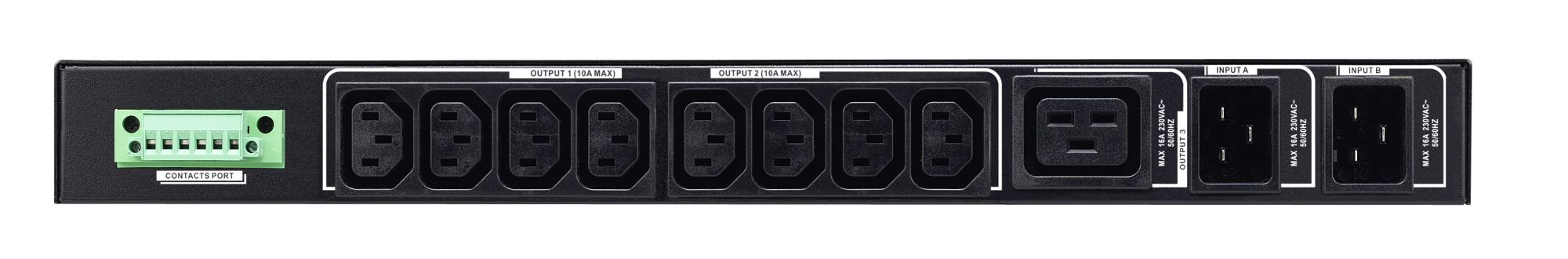

ATS Rear Panel

Automatic Transfer Switches

Single Phase ATS Systems

BPC provide intelligent Automatic Transfer Switches that can be powered from two UPS Systems, different mains supplies or a combination of both.

Automatic Transfer Switches (ATS) ensure highest availability of the power supply to sensitive and critical applications. The installation of an ATS ensures 2N architecture is achieved and allows loads with single feeds to always be supplied by the highest quality power.

The use of transfer switches and 2N architecture increases the maintainability of the switch panels and upstream equipment.

Download brochure
  • Dual Source
  • Industrial
  • Reliable

Higher reliability levels are achieved using dual power sources and outlets that can be programmed to schedule individual device shutdowns, or delay priorities ensuring maximum uptime and control for the user.

BPC Automatic Transfer Switches have distribution with compatibility for eight network devices to be connects from its output sockets.

The front panel has an LCD display providing input and output status, alarms and key measurement information which can be remotely monitored using RS232, USB or Simple Network Management Protocol (SNMP) communications.

  • Powered by two indpendent sources
  • Dual power supply for redundancy
  • Provides seamless switching for critical IT equipment
  • Selection of preferred source via the front panel
  • 19" rack design (1U) to fit into diverse environments
  • Built-in USB and RS232 communications
MODEL ATS-16
Input Voltage 220 / 230 / 240 Vac
Input Voltage Range 180 - 258 Vac
Input Frequency  50 / 60Hz
Maximum Input Current 16A
Output Voltage 220 / 230 / 240 Vac
Maximum Output Current 10 for IEC-C13 outlets / 16Afor IEC-C19 outlets
Communications USB / RS232
Transfer Time 2-12ms (typical). 16ms (max.)
Operating Temperature -5°C ~ 45°C
Dimensions (mm) WxDxH 430 x 330 x 44 (1U)
Net Weight (kgs) including accessories 8kgs
