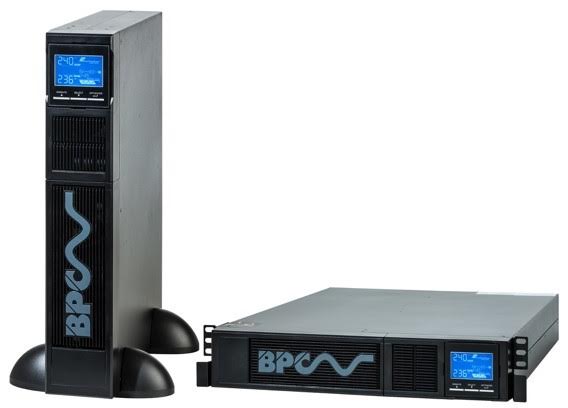

PowerPrem+ UPS

Line Interactive UPS

800VA - 5kVA

The PowerPrem+ range of Line Interactive UPS is a cost effective solution ideal for Network Server protection and inductive load applications such as lifts, roller shutter doors and motor loads.

Each model has multiple communication options available including RS232 / USB and SNMP slot. 1kVA - 3kVA long runtime models are available to provide extended backup times with larger internal charger options and matching battery cabinets, providing an enhanced and flexible product range to offer complete protection.

Download brochure
  • Line Interactive Design
  • Tower or Rackmount Convertible Design
  • Hot-Swap Battery Design (800VA - 3kVA)
  • ECO Mode for energy saving

Rack / Tower Design

The PowerPrem+ range is designed to have the flexibility of use as a floor standing tower type UPS or to be integrated into the clients exisiting 19" rack cabinet.


Adjustable LCD Display

The enhanced LCD display can be manually positioned and programmed for use as a rackmount or tower to suit mode of operation, showing all key parameters, alarms and indicators.

Hot Swappable Batteries

Having a hot swappable design for the PowerPrem+ 800VA - 3kVA ensures clean and uninterruptible power to protected equipment during battery replacement.


ECO Mode Operation for Energy Saving

The ECO Mode function is available on 800VA - 3kVA models allowing for a cost-effective operation of the system as high as 98%.

MODEL PPREM+800 PPREM+1100(L) PPREM+1500 PPREM+2000(L) PPREM+2500 PPREM+3000(L) PPREM5000
Power Rating VA/Watts 800 / 720 1100 / 990 1500 / 1350 2000 / 1800 2500 / 2250 3000 / 2700 5000 / 3500
INPUT
Nominal Voltage 208 / 220 / 230 / 240 Vac (standard) 200/220/230/240 Vac
Voltage Range 162 - 290 Vac (standard)

-20%~+24% standard

-29%~+33% adjustable

Frequency 50Hz / 60Hz (auto sensing)
OUTPUT
Nominal Voltage 208 / 220 / 230 / 240 Vac (standard) 200/220/230/240 Vac
Frequency 50Hz / 60Hz +1% (batt. mode) 50Hz / 60Hz
Transfer Time Typical 2-6ms, max. 10ms Typical <4ms
Overload Capability

103% - 120% shutdown after 5 mins and go to fault, 120% - 150% shutdown after 10 secs and go to fault,

 >150% shutdown after 1 second and go to fault

Overload alarm: 100%-120%

 Overload Shutdown: 120%-190%

Crest Factor 3:1
BATTERY
Battery Type VRLA AGM Sealed Lead Acid Maintenance Free Batteries
GENERAL
Operating Humidity 0-90% RH at 0-40degC (non-condensing) 5-90% RH @ 0-40degC (non-condensing)
Acoustic Noise Level <45 db="" 1="" metre="" td=""> <40db 1="" metre="" td="">
Management Software Included
Standard Model
Dimensions (mm) WxDxH 438 x 410 x 88 438 x 510 x 88 438 x 630 x 88 435 x 500 x 180
Net Weight (kgs) 12.9 13.4 19.5 21.5 30.63 32.24 80 (incl. battery)
Long Runtime Model
Dimensions (mm) WxDxH N/A 438 x 410 x 88 N/A 438 x 410 x 88 N/A 438 x 410 x 88 N/A
Net Weight (kgs) N/A 9 N/A 11 N/A 11.9 N/A
