Industrial XA UPS

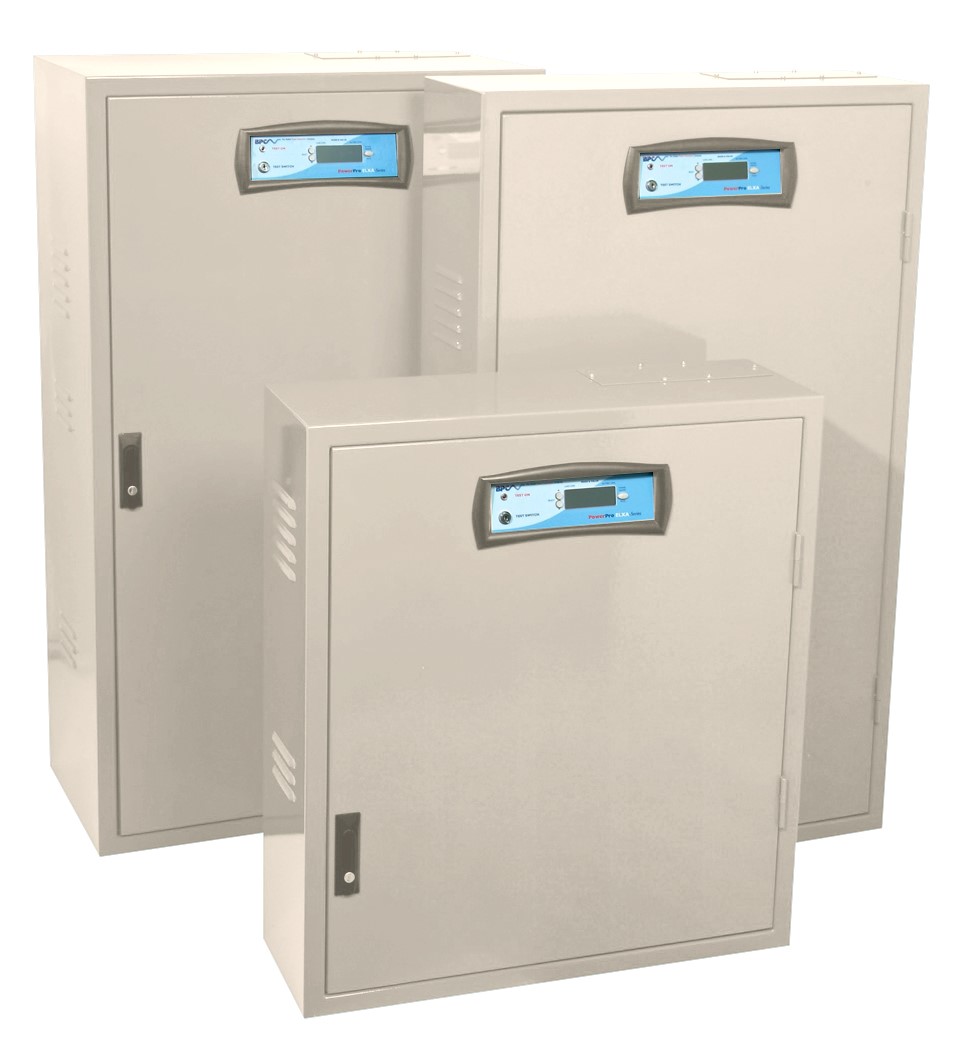

PowerPro Industrial XA UPS

Single Phase Input & Output - Online Double Conversion UPS

2.2kVA - 4kVA

The PowerPro Industrial XA Range is built specifically for clients requiring an engineered solution for a plant room environment with options for a long runtime battery autonomy in a self contained lockable cabinet.

The Industrial XA range is a compact modular power unit offering both reliability, simple maintenance and low mean time to repair.

Bespoke designs are available for AC or DC earth fault protection, galvanic isolation, surge/lighting supresssion, dry port contacts, 24/48/110 AC outputs, remote alarm panels, internal maintenance bypass switches and others.

Download brochure

Features

  • Industrial
  • Long Runtime
  • Self-Contained
  • Advanced LCD Display
  • Generator Compatible

The PowerPro Industrial XA Single Phase Uninterruptible Power Supply Range;

  • Designed for industrial plant room applications
  • True sinewave & PWM microprocessor controlled technology
  • Up to 97% efficiency
  • System and battery test function
  • Dynamic voltage control allowing wide input (Smart AVR)

  • Larger charger for faster recharge times
  • Ultra-fast Changeover Mode to Battery Mode
  • Advanced LCD panel
  • RS232 and dry contacts for communication and remote monitoring
  • Generator compatible
  • Remote monitoring panel (optional)
  • Low mean time to repair (MTTR)
MODEL IND 2200XA IND 4000XA
Power Rating kVA / Watts 2.2 / 1.35 4 / 3
INPUT
Nominal Voltage 230 Vac (1Ph + N + PE)
Voltage Range 184V - 285V
Frequency Range 50Hz +5%
Power Factor 0.8
OUTPUT
Nominal Voltage 230 Vac (1Ph + N + PE)
AC Voltage Regulation (Battery Mode) +3%
Frequency Range (Synchronised Range) +1%
Frequency Range (Battery Mode) +1%
Crest Factor 3:1
Harmonic Distortion (Linear Mode) <5%
Transfer Time  >4ms
Waveform  Sinewave
BATTERY
Battery Type VRLA AGM Sealed Lead Acid Batteries / Nickel Cadmium / Lithium Ion Batteries
GENERAL
Operating Temperature 0 - 40degC
Operating Humidity 5 - 95% (non-condensing)
Acoustic Noise <56db 1="" metre="" td="">
IP Rating IP21 (Higher IP ratings available on request)
Dimensions (mm) WxDxH 750 x 250 x 1250 750 x 400 x 1250
Net Weight (kgs) Dependent on battery configuration
