BPC Emergency Lighting

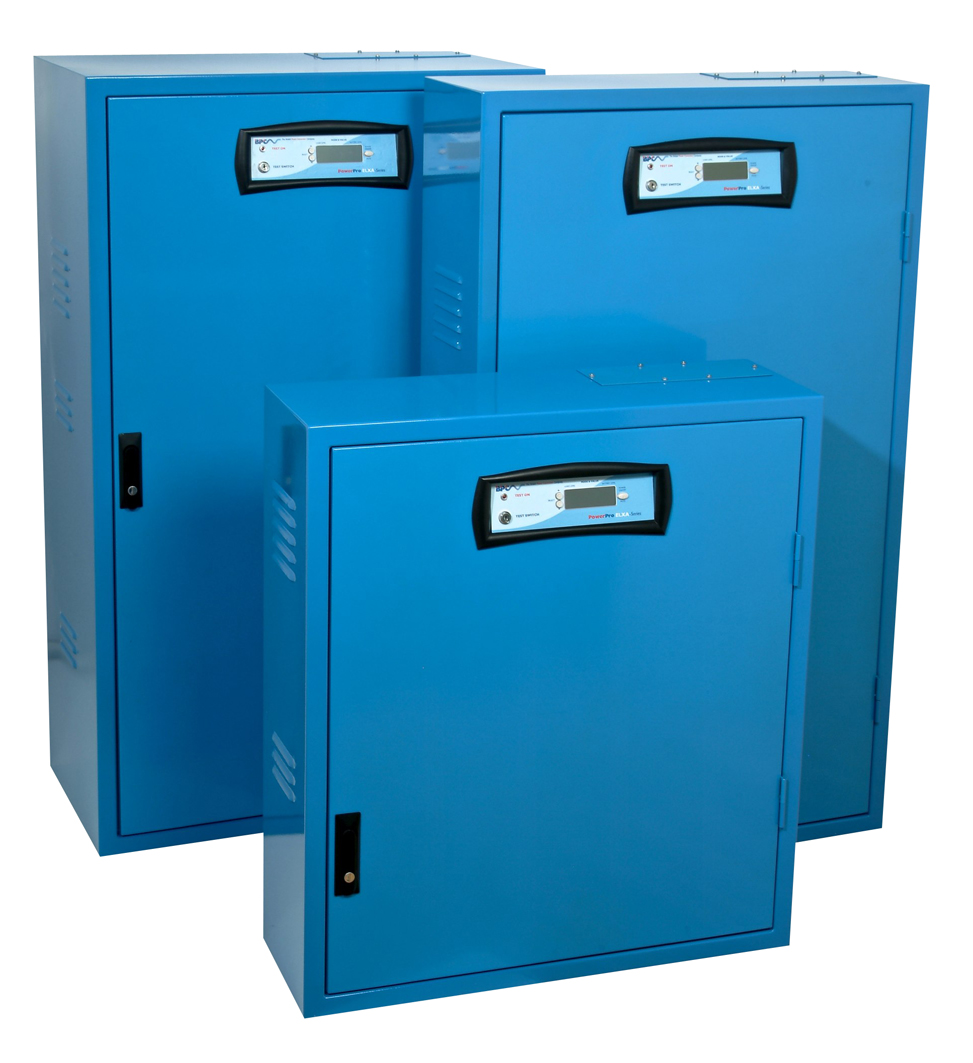

PowerPro EL100XA

Single Phase Input & Output Static Inverter

500VA - 3kVA

The PowerPro EL ranges are Static Inverter Systems designed specifically for emergency lighting applications according to European BS EN50171 specification.

The PowerPro EL100XA Series is a range of Static Inverters manufactured with the state of the art PWM and IGBT technology producing microprocessor controlled pure sinewave output for critical emergency lighting loads.

Download brochure

Features

  • Single Phase Input & Output
  • 500VA - 3kVA

The significant advantage of using PowerPro EL Static Inverters for Emergency Lighting is the ability to supply tightly regulated and controlled sinewave power to a wide range of normal functional or decorative mains luminaires as emergency fittings.

As an expansion to the standard 100 series, the XA range allows for an internal self contained battery system capable of providing the standard Emergency Lighting 3 hour autonomies. With the advantage of wall mounted and stand alone options the XA range completes the EL series with a fully encapsulated product for those lower rated requirements.

EL100 models have single phase rectifiers with "Soft Start" control incorporating thyristor controlled bridge circuitry to limit inrush current and prevent overloading marginally rated mains supplies. These models provide an excellent solution for, single phase loads and can also reduce the need for extensive re-cabling during installation.

  • True sinewave and PWM microprocessor controlled technology
  • System and battery test function
  • DC short circuit protection
  • Recharge batteries up to 80% within 20 hours
  • Fast changeover to Battery Mode
  • Built-in distribution panel (6x standard)
  • LCD panel providing accurate detailed information about load, batteries, system diagnostics & audible alarm
  • RS232 and dry contacts for communication and remote monitoring
  • Internal battery compartment
  • Reduced mean time to repair (MTTR) due to modular design
MODEL EL 1005XA EL 1012XA EL 1030XA
Power Rating VA / Watts 500 / 400 1250 / 1000 3000 / 2400
INPUT
Nominal Voltage 230 Vac (1Ph + N + PE)
Voltage Range 184V - 285V
Frequency Range 50Hz +5%
OUTPUT
Nominal Voltage 230 Vac
AC Voltage Regulation         (Battery Mode) +3%
Frequency Range (Battery Mode) +1%
Power Factor 0.8
Crest Factor 3:1
Harmonic Distortion (Linear Load) <5%
Transfer Time 0.5 secs
Waveform Sinewave
Load Circuits 6
Overload 120% continuous
Mode Operation Changeover
Maintained / Non-Maintained Maintained (standard) / Non-Maintained (optional)
BATTERY
Battery Type VRLA AGM Sealed Lead Acid Maintenance Free Batteries / Nickel Cadmium Batteries / Plante Batteries
Internal / External 1 or 3 hour internal
End of Life to EN50171 Included
Charge Battery to 80% within 2 hours Included
Deep Discharge Protection Included
DC Earth Leakage Optional
LIGHTING CONTROL INTERFACE
External Mains Fail Test Connection Optional
Non-Maintained Mode Connection** Optional
FAR Connection** Optional
External Phase Fail Connection** Optional
24Vdc Supply for External Contactor Optional
KNX Interface Optional
Volt Free Contacts 3
GENERAL
Operating Temperature 0 - 40°C
Operating Humidity 5 - 95% (non-condensed)
Acoustic Noise <56db 1="" metre="" td="">
Protection Degree IP21
Dimension (mm) WxDxH   (Excluding Batteries) 750 x 250 x 850 750 x 250 x 1250 750 x 400 x 1250
Net Weight (kgs) Dependent of battery configuration
