Complete power protection for all your home or office use.
PowerOffice provides clean and reliable backup power, not only for your high performance computer but for all the system peripherals which are an essential part of the modern small office/ home office’s electronic environment, such as fax machines, scanners, printers, modems, multimedia sound systems, cameras, telephone systems, gaming and aquariums.
PowerOffice has the highest level of protection for its configuration on the market today, giving you a powerful UPS battery backup system, an input surge suppressor, data line protection and an outlet extension block all in a compact design! No other UPS product available on the market today can offer you this kind of value and performance.
PowerOffice protects your system against surges, voltage sags and full power outages. Your PowerOffice is made even smarter and more powerful when integrated with the UPS management shutdown software. This allows you to see real time power and UPS status while providing automatic controlled shutdown in the event of a prolonged power failure.
EASY SWAPPABLE BATTERY
A Sealed Valve Regulated Lead Acid (VRLA) 12V battery is fitted internally with a typical battery design life of 3-5 years under normal operating conditions. The battery can be easily replaced by simple access from a rear battery location panel.
INTELLIGENT COMMUNICATION PORT

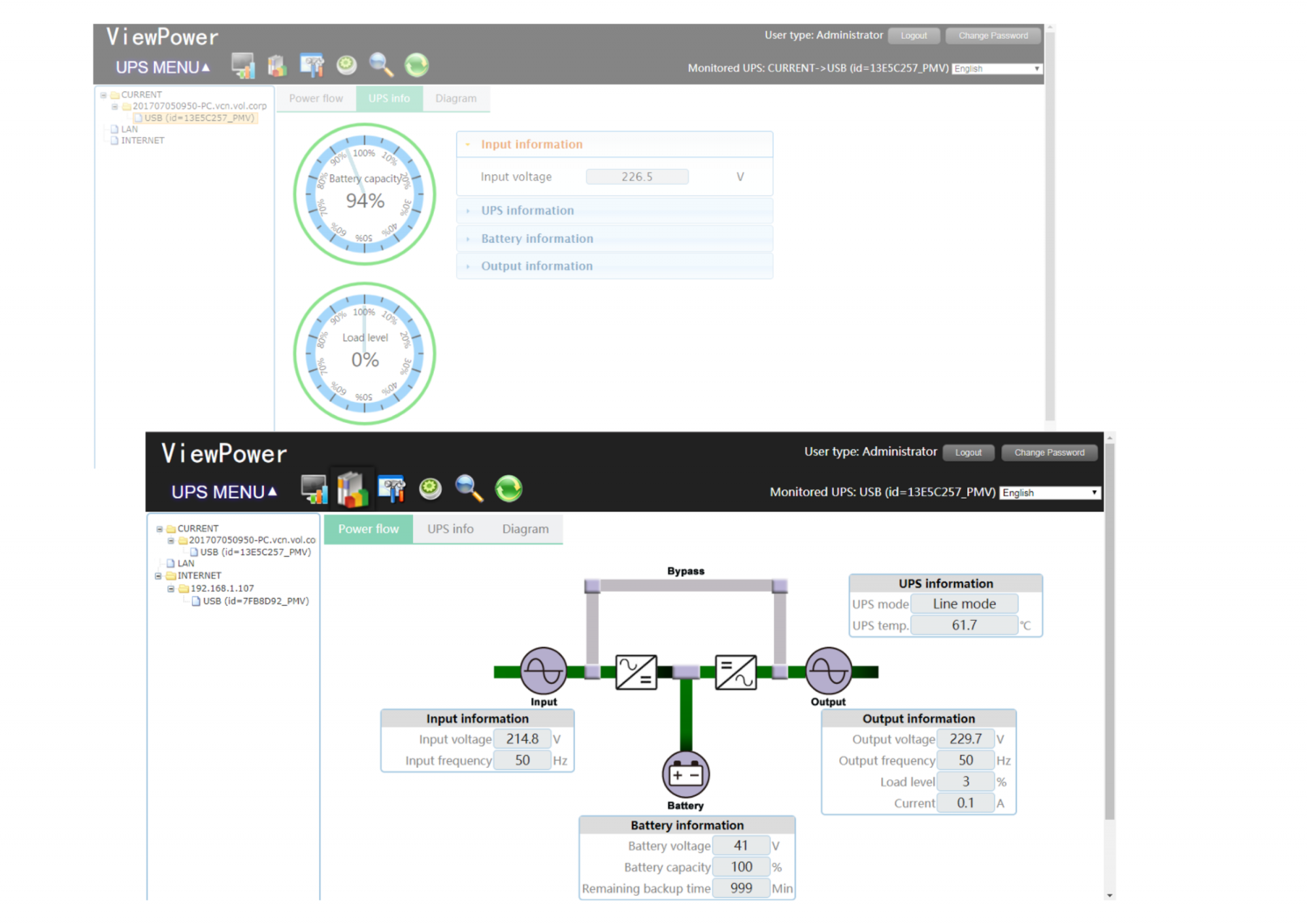

This feature will allow your computer to communicate via a USB cable and provide remote indications through the free-of-charge ViewPower downloadable intelligent software which can automatically shut down your computer system when unattended.

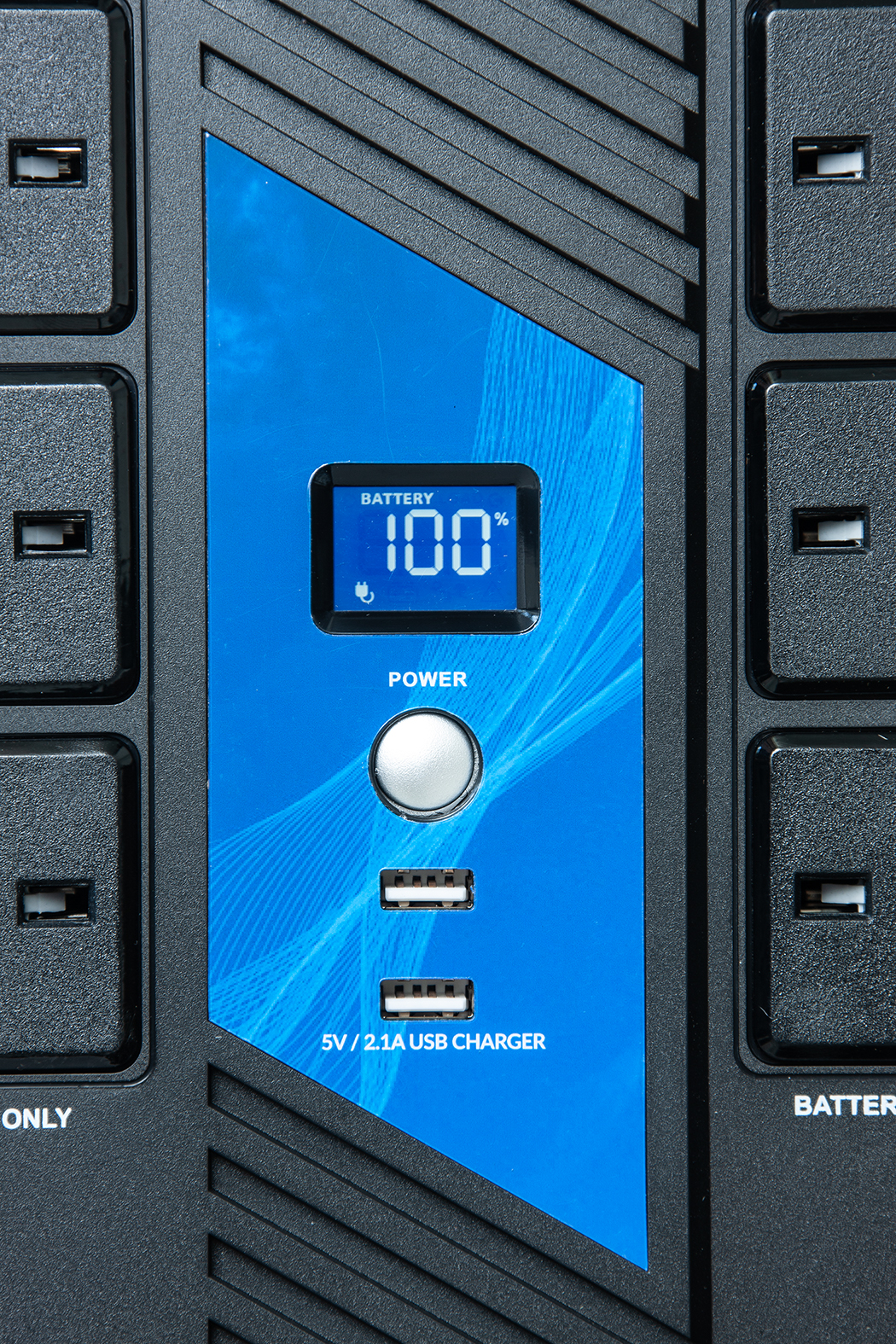

USER-FRIENDLY LCD DISPLAY PANEL

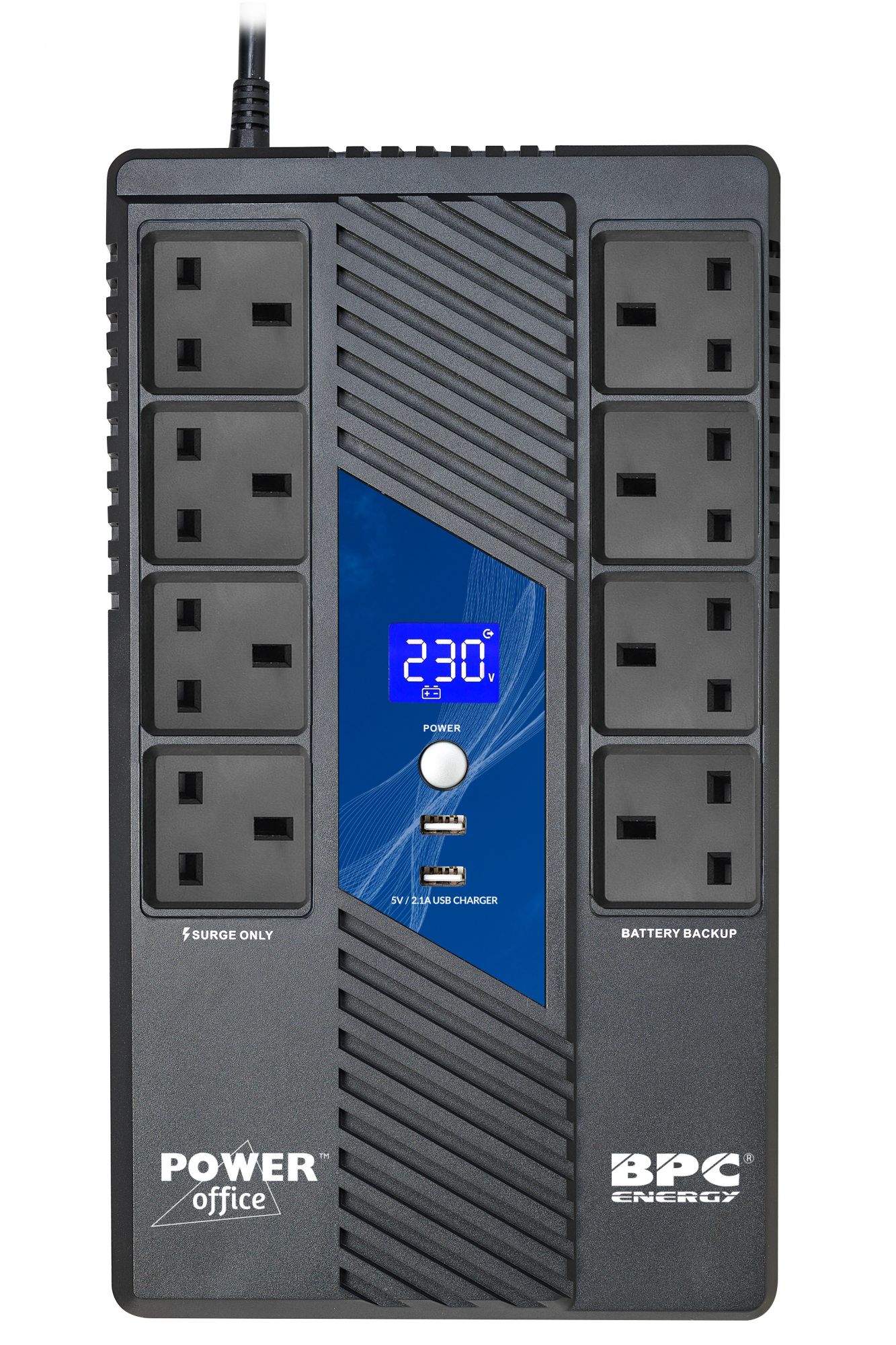

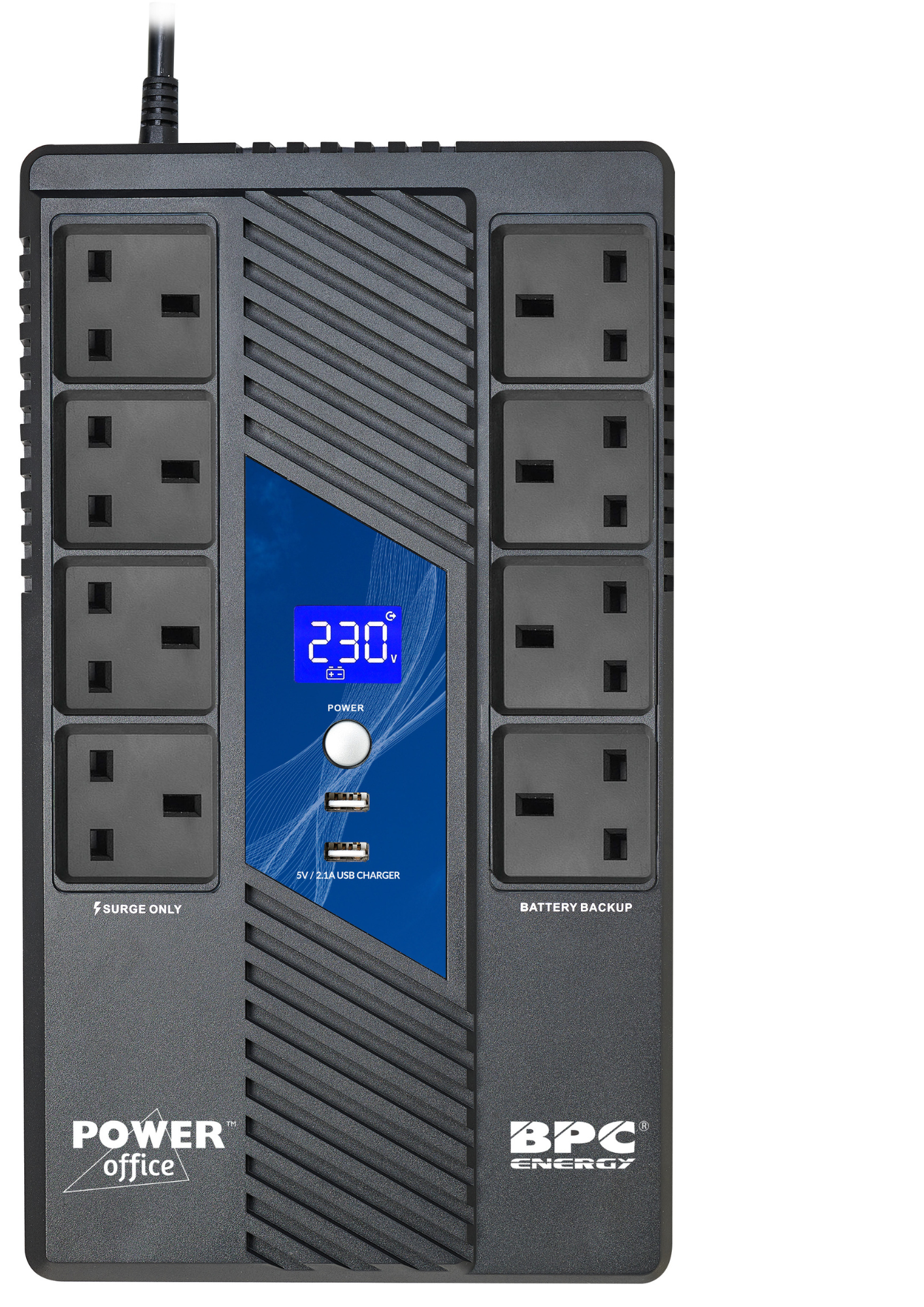

The PowerOffice backlit LCD display with touchscreen provides an intelligent display of the UPS's operating status. It shows key parameters, alarms, and indications including output and input voltage, load levels, overload, mains-On mode, battery mode, remaining battery capacity, and recharge status. Also, audible alarms provide notification of changing utility power and UPS conditions.
| MODEL | POFFICE PO100 |
| Power Rating VA / Watts | 1000VA / 600W |
| INPUT | |
| Nominal Voltage Range | 170V - 280V |
| OUTPUT | |
| Output Operation Voltage | 230V ±10% (Battery Mode) |
| Output Frequency | 50 ± 3Hz (Battery Mode) |
| Transfer Time | Typical 6ms, 10ms max |
| Waveform | Simulated Sinewave |
| EFFICIENCY | |
| Efficiency | >94% @ 230V |
| BATTERY | |
| Battery Type | VRLA AGM Sealed Lead Acid Maintenance Free Batteries |
| Hot-Swap Battery | Yes |
| Typical Back-Up Time | ≥10min @ Typical Computer Load |
| Battery Recharge Time | 6 hours recover to 90% capacity |
| Intelligent Off-Mode Charging | Intelligent off-mode charging to continue to charge |
| GENERAL | |
| Temperature/Humidity | 0°C - 40°C non-condensing 0.902RH |
| Acoustic Noise Level | ≤40dB |
| Cable Length | ≤1.83m |
| Cold Start | Yes |

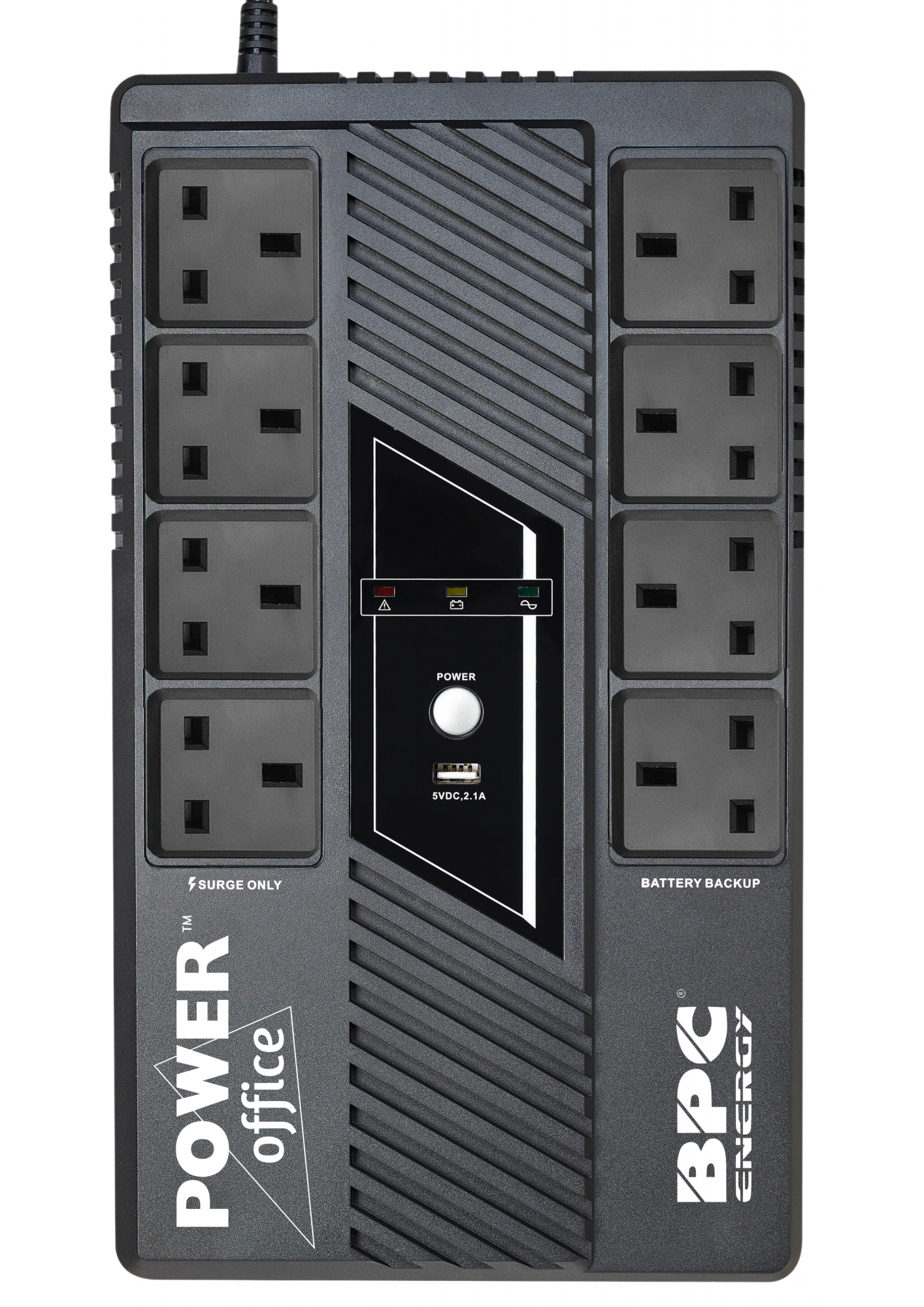

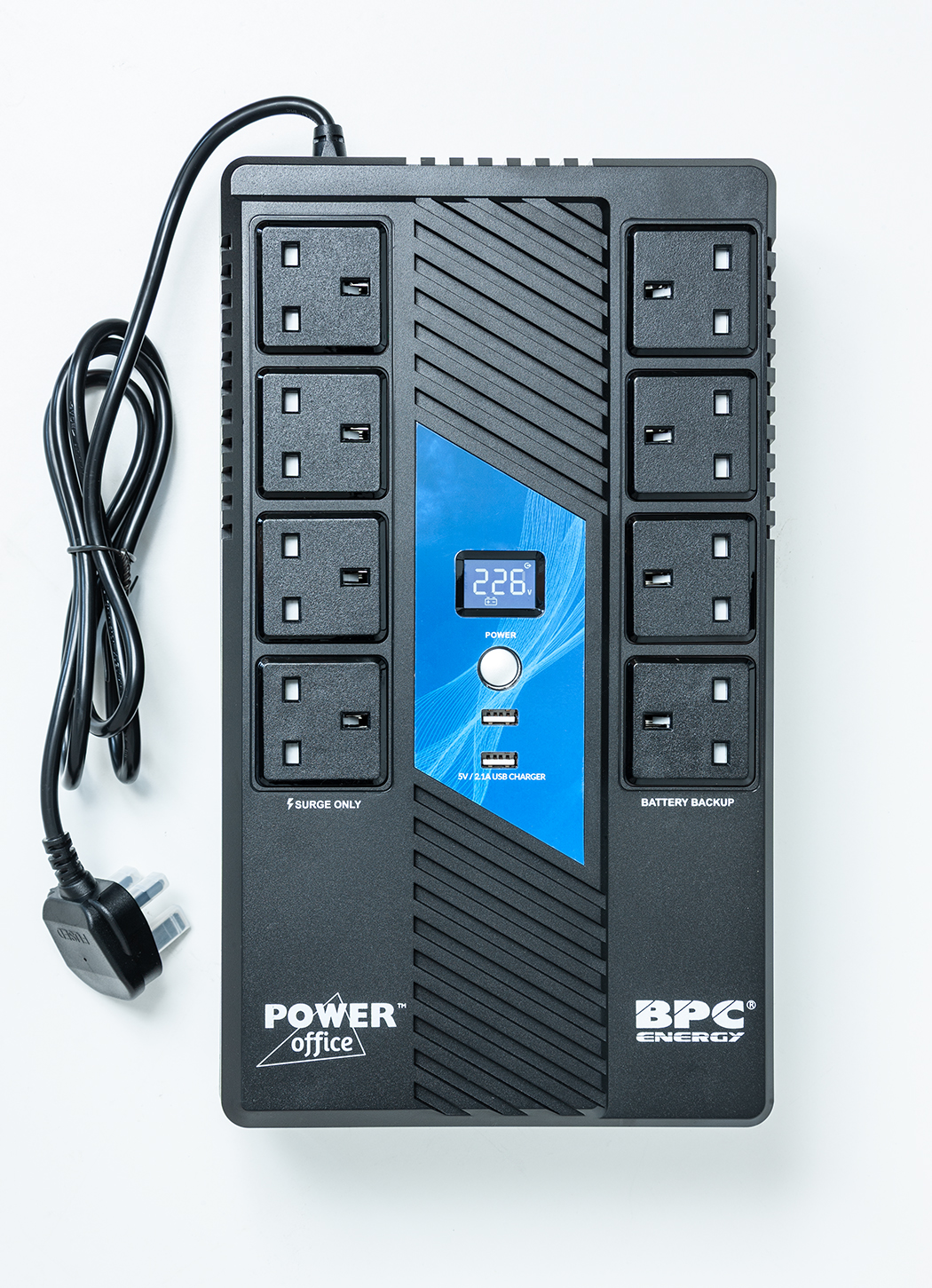

| Plug-In Outlet Sockets | 8UK BS1363 plug-in outlet sockets UK 3 Pin Plug (4 with battery backup / surge protection and 4 with surge protection) |
| USB Charging Sockets | 2 x Type A USBs |
| Mains Surge Protection | 310 Joules |
| Data Line Protection | Phone/ Fax/ Modem/ DSL/ Network Data Line Protection 1000m ensures complete protection of your equipment from surges |
| Diagnostic Testing | Automatic diagnostic testing: automatic periodic battery self-testing to provide an early battery replacement indication |
| Control Panel | LCD touchscreen status display with Online, On battery, Replace battery and Overload indicators |
| Interface Communication Ports | USB |
| Audible Alarm | Alarm when on battery/a distinctive low battery alarm/overload continuous tone alarm/temperature alarm /high voltage alarm |
| Colour | RAL9057 (Black) |
| Dimensions (mm) WxDxH | 200 x 345 x 100 |
| Weight (kgs) | 6.4 |
