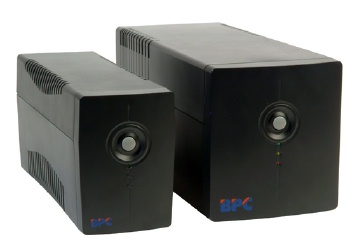

The PowerStar Xtreme range of Line Interactive UPS are designed primarily for difficult environmental site conditions that have wide voltage fluctuations in the mains power distribution.
The PowerStar Xtreme will provide a clean and reliable backup power to ensure continued data integrity and and optimum performance under a wide range of mains power conditions.
This high level of power protection can be incorporated with our advanced power management and diagnostics PowerSmart Xtreme software package that will allow your IT Manager or Systems Integrator to remotely monitor and manage both the UPS and/or Network Server.
MODEL | PSTARX 650 | PSTARX 650S | PSTARX 1000S | PSTARX 1500S | PSTARX 1500S/LCD | PSTARX 2000S | |
Power Rating | 650 / 360 | 650 / 360 | 1000 / 500 | 1500 / 900 | 1500 / 900 | 2000 / 1200 | |
INPUT | |||||||
Nominal Voltage | 230 Vac | ||||||
Voltage Range | 140 - 300 Vac | 162 - 290 Vac | |||||
Frequency | 50 Hz / 60 Hz (auto sensing) | ||||||
OUTPUT | |||||||
Nominal Voltage | 230 Vac | ||||||
Frequency | 50Hz +1Hz | ||||||
Transfer Time | Typical 4 - 8ms, max. 10ms | ||||||
Overload Capability | 110% +10% (shutdown after 15 minutes), 120% +20% (shutdown immediately) | ||||||
BATTERY | |||||||
Battery Type | VRLA AGM Sealed Lead Acid Maintenance Free Batteries | ||||||
Charging Current (max.) | Approx. 1A | ||||||
Charging Voltage | 13.7 +0.5V (normal mode) | 27.4 +1V (normal mode) | |||||
GENERAL | |||||||
Operating Humidity | 0 - 90% RH at 0 - 40 deg.C (non-condensing) | ||||||
Acoustic Noise Level | <40db 1="" metre=""> | ||||||
Management Software | N/A | Included | |||||
Dimensions (mm) WxDxH | 100 x 287 x 142 | 146 x 350 x 160 | 146 x 397 x 205 | ||||
Net Weight (kgs) | 4.25 | 8.9 | 11.1 | 11.1 | 11.5 |

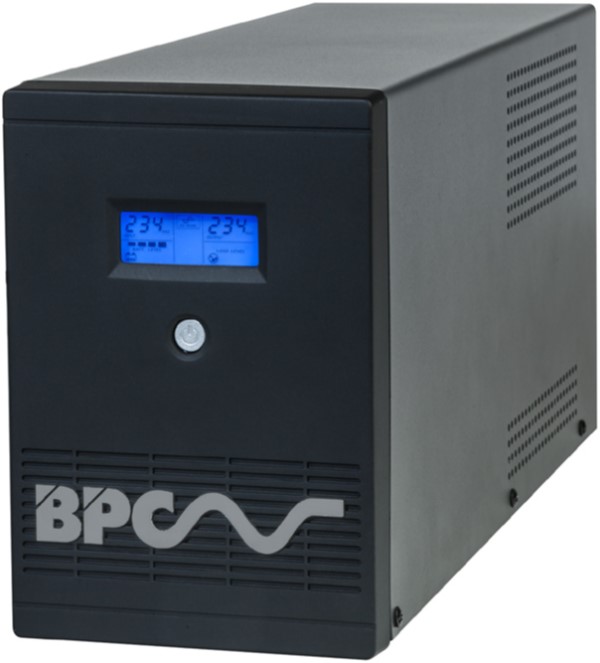

MODEL | PSTARX 1500E |
Power Rating | 1500 / 1000 |
INPUT | |
Nominal Voltage | 220 Vac |
Voltage Range | 140 - 300 Vac |
Frequency | 50 Hz (auto-sensing) |
OUTPUT | |
Nominal Voltage | 220 Vac |
Frequency | 50 Hz ±1% |
Transfer Time | Typical 4-8ms |
Overload Capability | 110% +10% (shutdown after 15 minutes), 120% +20% (shutdown immediately) |
BATTERY | |
Battery Type | Sealed Lead Acid Maintenance Free Batteries / 12v x4 |
Charging Current (max.) | Approx. 1A |
Charging Voltage | 27.4 +1V (normal mode) |
GENERAL | |
Operating Humidity | 0 - 90% RH at 0 - 40 deg.C (non-condensing) |
Accoustic Noise Level | <40db 1="" metre=""> |
Management Software | Included |
Dimensions (mm) WxDxH | 145 x 436 x 212 |
Net Weight (kgs) | 22 |
MODEL | PSTARX 1000E | PSTARX 2000E |
Power Rating VA / Watts | 1000 / 600 | 2000 / 1600 |
INPUT | ||
Nominal Voltage | 220 VAC | |
Voltage Range | 140 – 300 VAC | |
Frequency Range | 50 Hz (auto-sensing) | |
OUTPUT | ||
Nominal Voltage | 220 VAC | |
Voltage Regulation (Battery Mode) | ±10% | |
Frequency Range (Battery Mode) | 50 Hz ± 1% | |
Transfer Time | Typical 4 – 8 ms | |
Waveform (Battery Mode) | Simulated Sinewave | |
BATTERY | ||
Battery Type & Number | Sealed Lead Acid Maintenance Free Batteries / 12V x 4 | |
Typical Runtime at Full Load | Greater or equal to 5 mins | |
Typical Recharge Time | Less than 8 hrs | |
PROTECTION | ||
Overall | User / Resettable Circuit Breaker | |
Surge | Total energy dissipation 645 Joules | |
Full Protection | Short Circuit, Overload, Overcharge and Over-Discharge | |
GENERAL | ||
Output Connections | 4 x IEC with surge protection / 4 x IEC with surge protection and battery | |
Smart Communication Interface | USB Port | |
Humidity / Temperature | 0-90% RH @ 0-40°C (non-condensing) | |
Noise Level | Less than 50dB | |
Intelligent Power Management | Included | |
Control Button | On/Off button | |
LCD Display Panel | Providing information on UPS operation such as input/output voltage, mode of operation, battery level, low battery, load level, overload, fault mode for short circuit, overcharge & battery replacement | |
Audible Alarms | On battery mode, low battery, overload, battery replacement and general fault | |
Input Mains Cable | Shuko plug compatible for German and French connections | |
Accessories | 2x load IEC cables and user manual | |
Dimensions (mm) WxDxH | 145 x 436 x 212 | 145 x 436 x 212 |
Net Weight (kgs) | 22 | 25 |

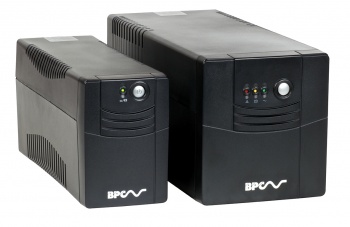

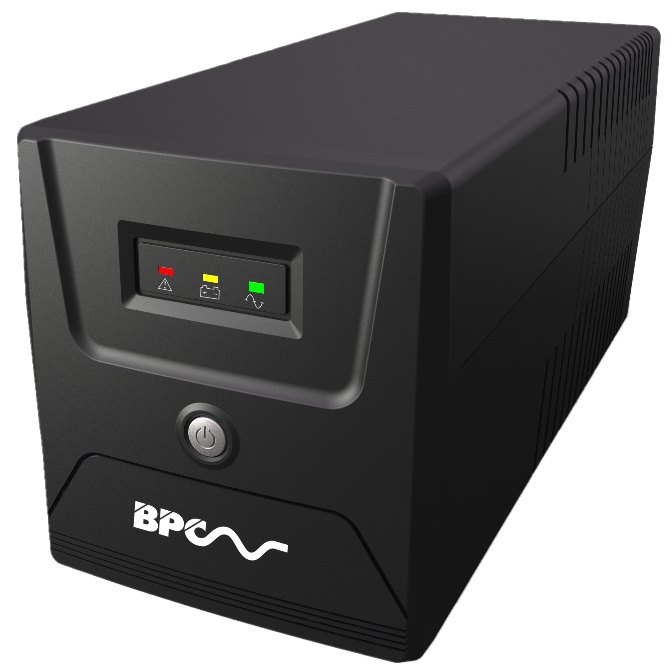

MODEL | PSTAR 800E | PSTAR 1000E |
Power Rating VA / Watts | 800VA / 480Watts | 1000VA / 600Watts |
INPUT | ||
Nominal Voltage | 220 Vac | |
Voltage Range | 140 - 300 Vac | |
Frequency Range | 50 Hz (auto-sensing) | |
OUTPUT | ||
Nominal Voltage | 220 Vac | |
Voltage Regulation (Battery Mode) | ±10% | |
Frequency Range (Battery Mode) | 50 Hz ±1% | |
Transfer Time | Typical 4-8ms | |
Waveform (Battery Mode) | Simulated Sinewave | |
BATTERY | ||
Battery Type & Number | Sealed Lead Acid Maintenance Free Batteries – 2 x 12V 7Ah | Sealed Lead Acid Maintenance Free Batteries – 2 x 12v 9Ah |
Typical Runtime at Full Load | Greater or equal to 3 mins | Greater or equal to 4 mins |
Typical Recharge Time | Less than 8 hrs to full charge and typically less than 3 hrs to 90% charge | |
PROTECTION | ||
Overall | User / Resettable circuit breaker | |
Surge | Total energy dissipation ≥ 220 joules | Total energy dissipation ≥ 240 joules |
Full Protection | Short Circuit, Overload, Overcharge and Over-discharge | |
GENERAL | ||
Output Connections | 2 x IEC with surge protection / 2 x IEC with surge protection and battery | |
Smart Communication Interface | USB Port | |
Humidity / Temperature | 0-90% RH @ 0-40°C (non-condensing) | |
Noise Level | Less than 50dB | |
Intellegent Power Management | Included | |
Control Button | On / Off Button | |
LED Display Panel | Providing information on UPS operation such as input/output voltage, mode of operation, battery level, low battery, load level, overload, fault mode for short circuit, overcharge and battery replacement | |
Audible Alarms | On battery mode, low battery, overload, battery replacement and general fault | |
Input Mains Cable | Shuko plug compatible for German and French connections | |
Assessories | 2 x load IEC cables and user manual | |
Dimensions (mm) WxDxH | 150 x 353 x 162 | 158 x 380 x 198 |
Weight (kgs) | 7.8 | 10.1 |
