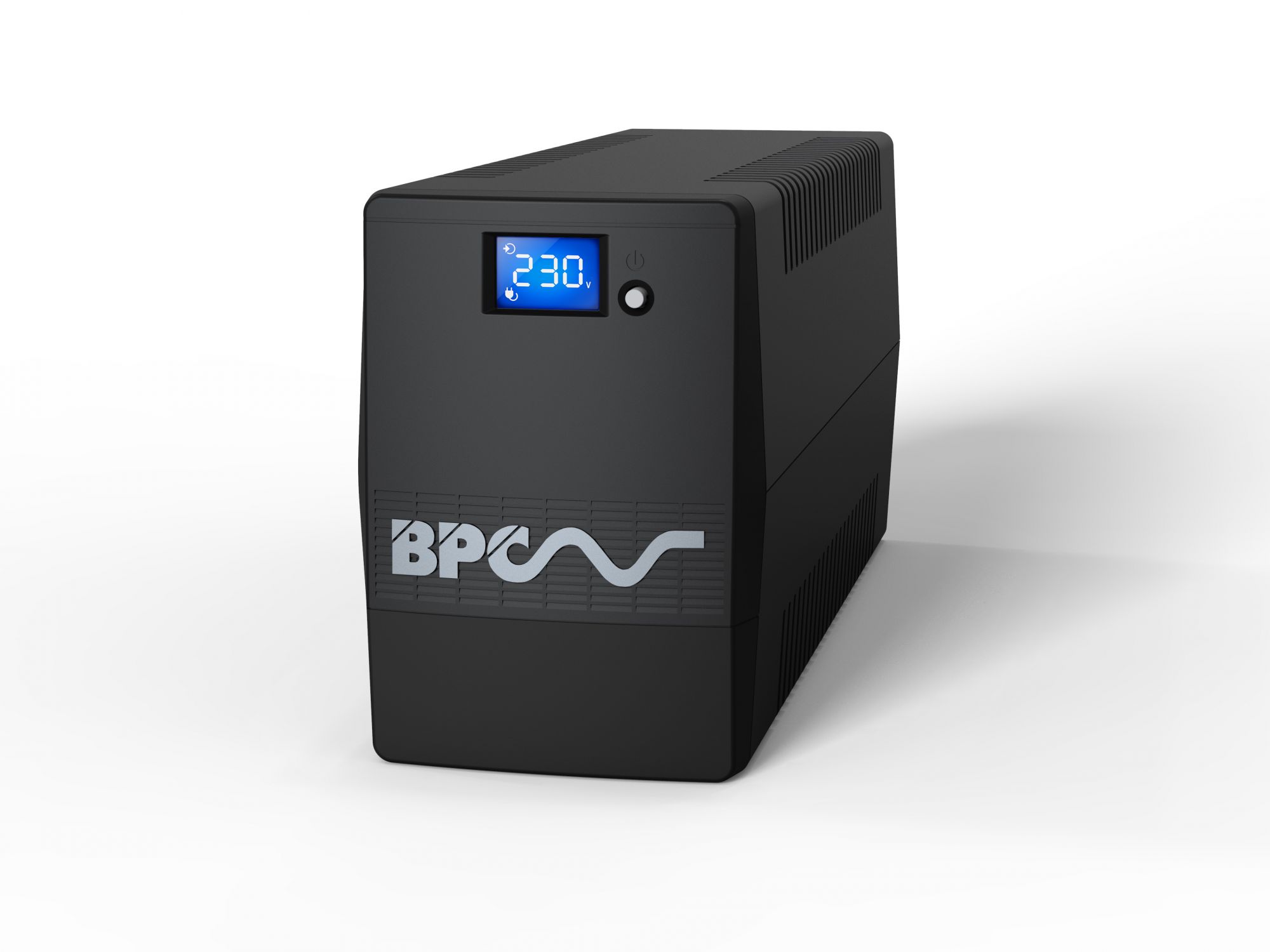

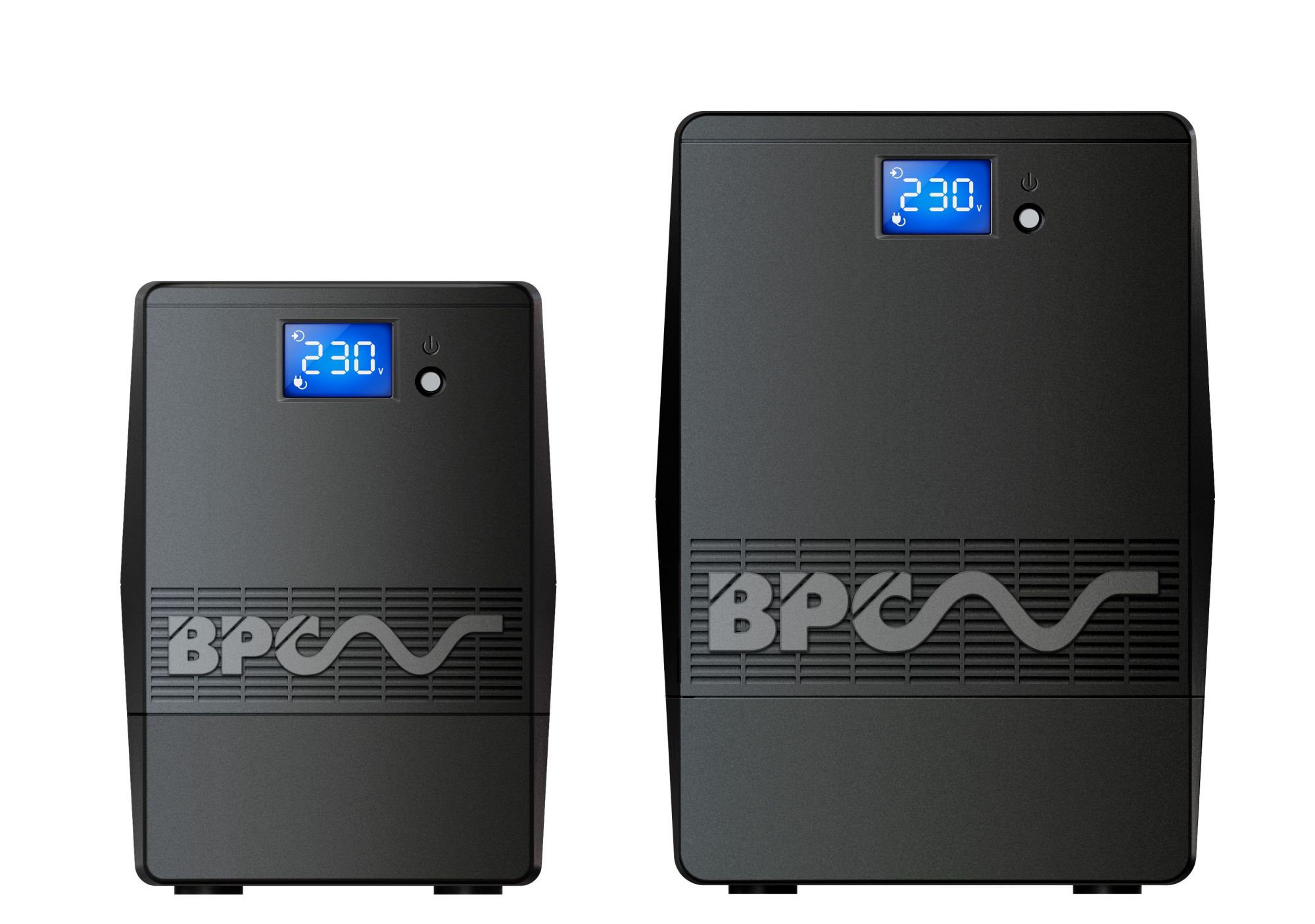

BPC have a range of intelligent Line Interactive UPS products, designed to offer total power protection to a broad range of applications.
The PowerStar i Series range will provide clean and reliable backup power to ensure continued data integrity and optimum performance under a wide range of mains power conditions to offer total power protection to a broad range of modest applications.
The PowerStar i Series range of Single Phase Uninterruptible Power Supplies will provide clean and reliable backup power to ensure continued data integrity and optimum performance under a wide range of mains power conditions to offer total power protection to a broad range of modest applications.
This high level of power protection can be incorporated with our advanced power management and diagnostics software package that will allow your IT Manager or Systems Integrator to remotely monitor and manage both the UPS and IT application.
MODEL | PSTARi600 | PSTARi800 | PSTARi1000 | PSTARi1500 | PSTARi2000 |
Power Rating VA / Watts | 600 / 360 | 800 / 480 | 1000 / 600 | 1500 / 900 | 2000 / 1200 |
INPUT | |||||
Nominal Voltage | 220 Vac / 230 Vac / 240 Vac | ||||
Voltage Range | 162 - 290 Vac | ||||
Frequency | 50 or 60 Hz (auto-sensing) | ||||
OUTPUT | |||||
Nominl Voltage | 220 Vac / 230 Vac / 240 Vac | ||||
Frequency | ±1 Hz | ||||
Transfer Time | Typical 2-6ms | ||||
Overload Capacity (online) | 110% ±10% (Fault alarm after 5 minutes), 120% ±10% (shutdown immediately) | ||||
BATTERY | |||||
Battery Type | VRLA AGM Sealed Lead Acid Maintenance Free Batteries | ||||
Charging Current (max.) | Approximately 1A | ||||
Charging Voltage | 13.7 ±0.5V (normal mode) | ||||
GENERAL | |||||
Temperature / Humidity | 0 - 40˚C / 0 - 90% (non-condensing) | ||||
Acoustic Noise Level | Less than 40dB | ||||
Management Software | Included | ||||
Dimensions (mm) WxDxH | 101 x 300 x 142 | 130 x 300 x 182 | |||
Net Weight (kg) | 4.4 | 5 | 8.2 | 10.4 | 11 |
