The rated voltage of the systems is ± 240 volts with optional rated capacities of 50, 100, 150AH. Manufactured with safety as the primary objective the high discharge range LiFePO4 (Lithium Iron Phosphate) batteries achieve both well defined performance and long-term stability. The core of each system is a high-power density 48-volt module which consists of prismatic LiFePO4 cells configured using a fully automated robotic production technic delivering a high-quality product.

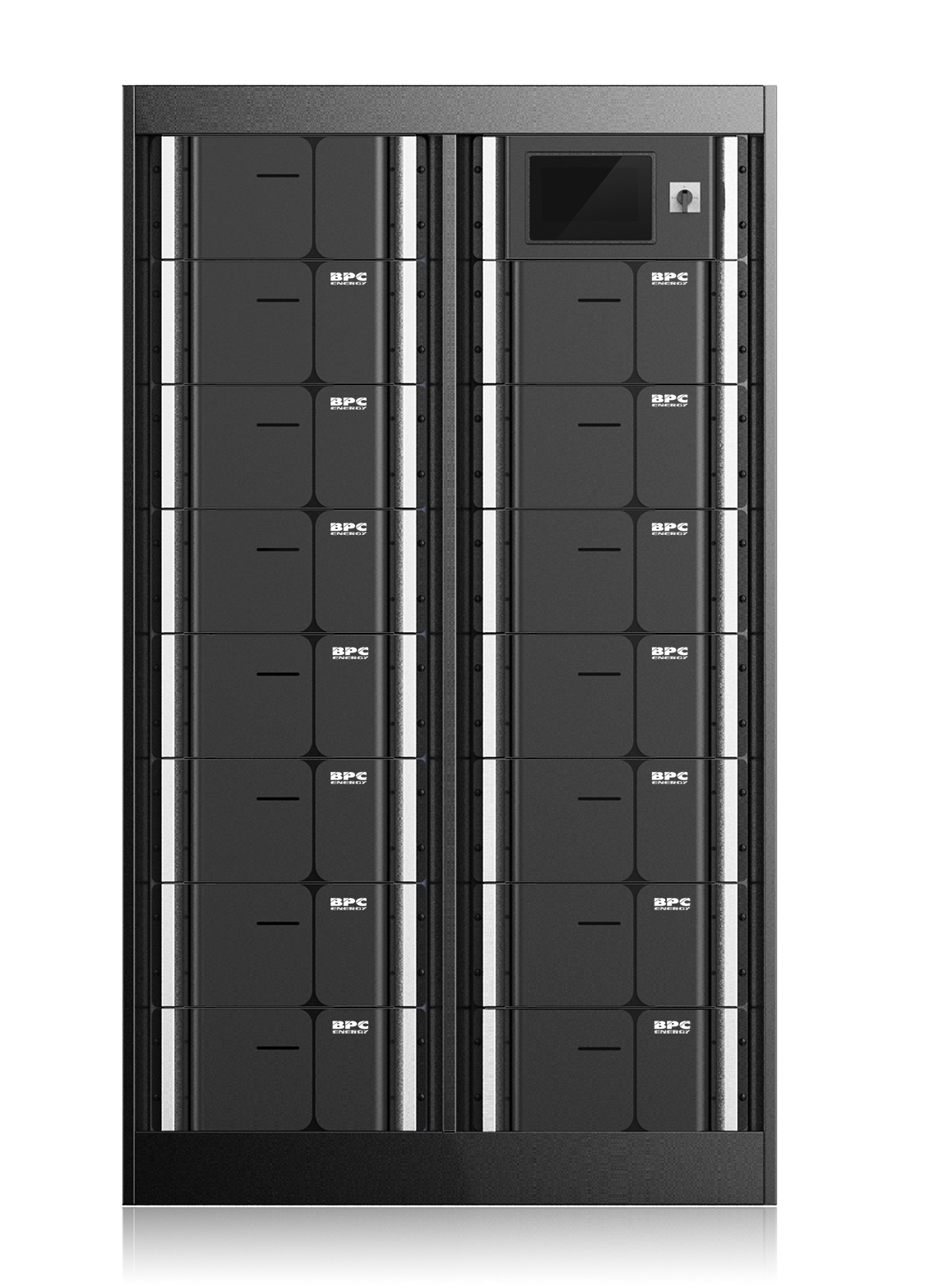

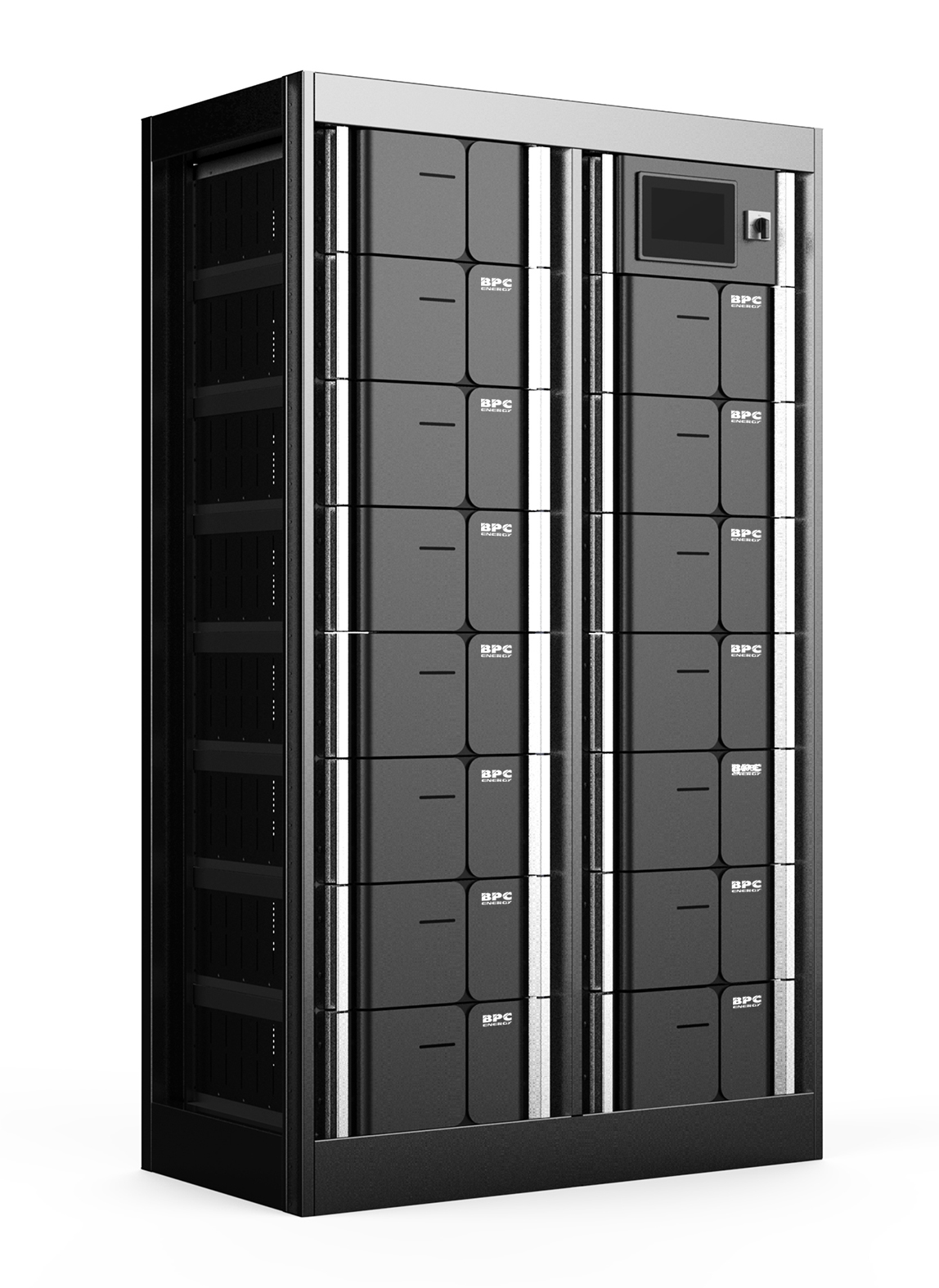

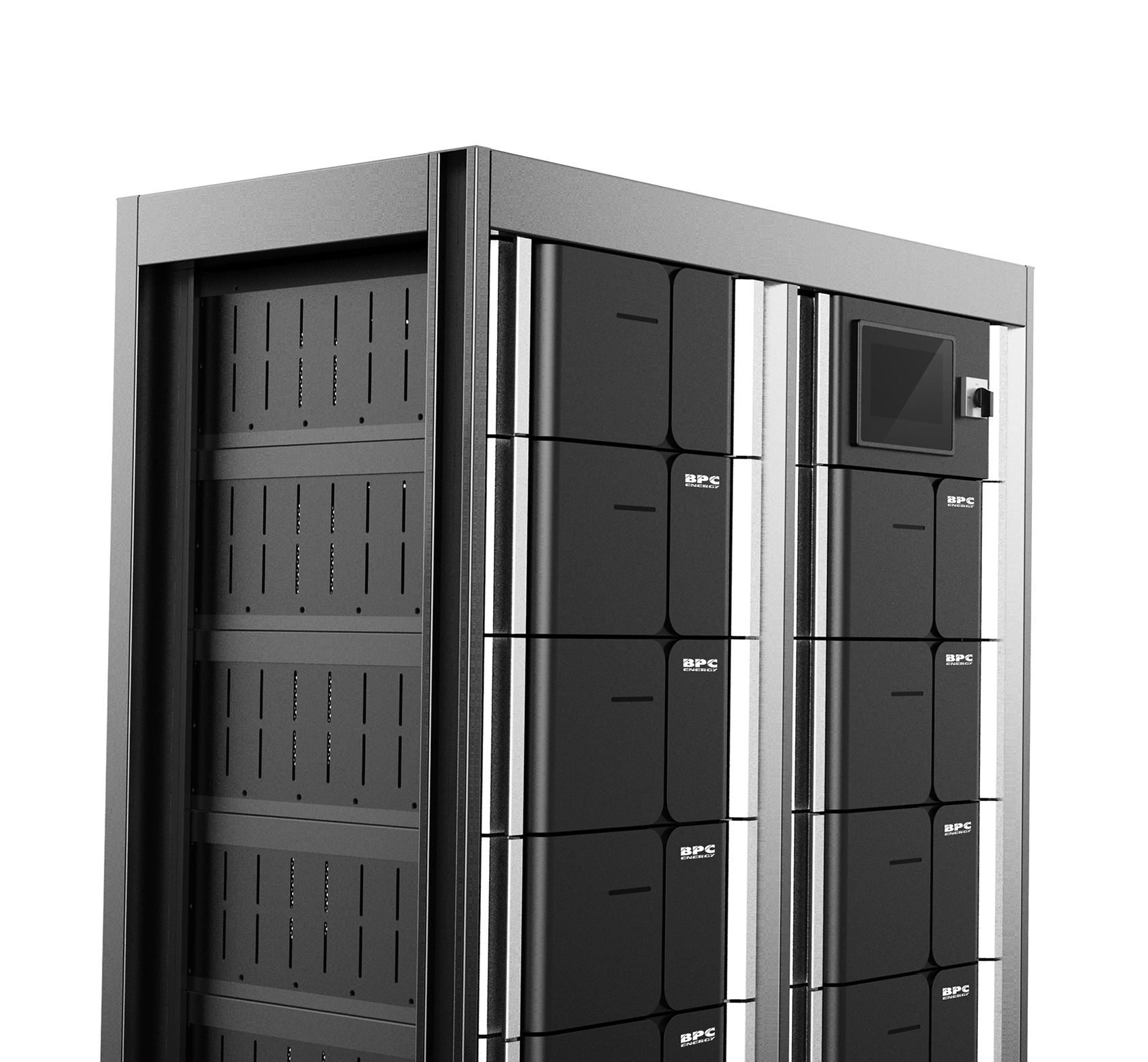

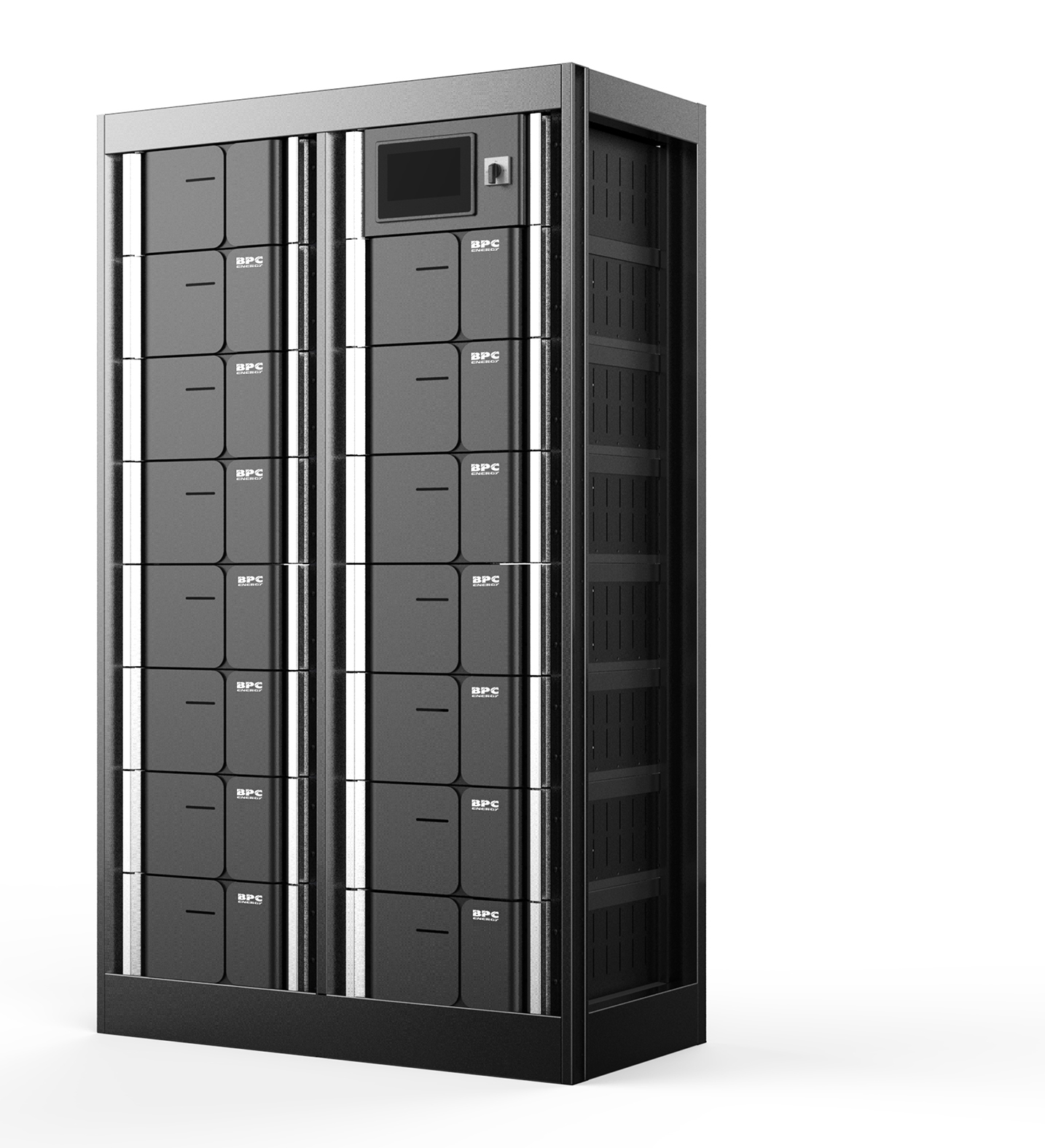

The system cabinet consists of 10 modules and a touch screen display control module which monitors the running status of the battery system in real time. Providing information on the operating status, capacity, voltage of each cell for equalisation status and details of charge / discharge performance.
Combined with an advanced three level architecture BMS design control system ensures adaptive equalisation for each cell maximising energy storage and discharge / charge performance while protecting the safety of the battery system at all times.
High Discharge C-Rating Range; Lithium-Ion Battery Energy Storage System

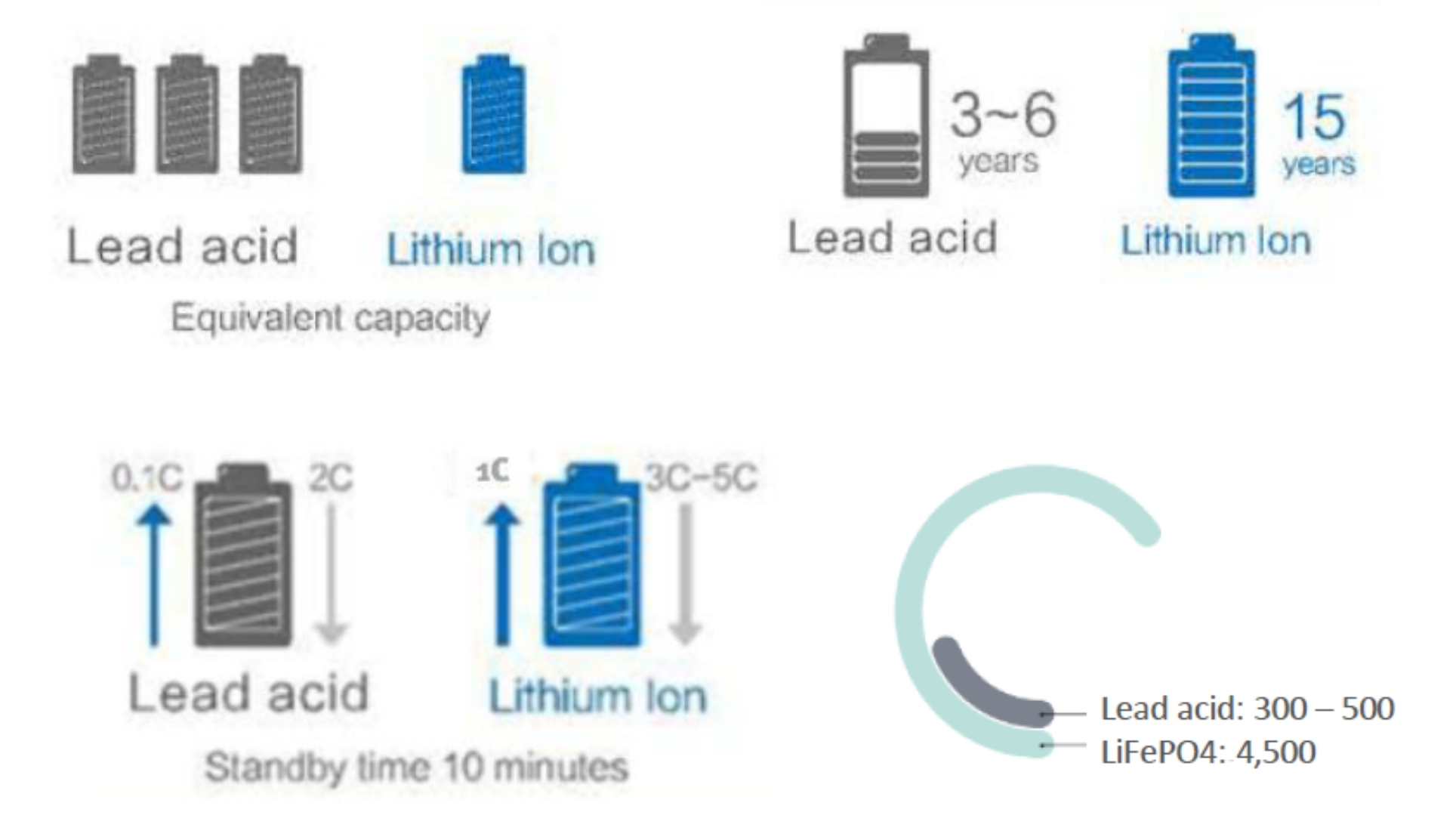

Lead-Acid Batteries vs Lithium-Ion Batteries
BATTERY MODULE SPECIFICATIONS | |||
Module Code | 1PX15S50 | 2PX15S50 | 3PX15S50 |
Cell | 3.2V 45Ah | ||
Combination | 15S1P | 15S2P | 15S3P |
Configuration | 15 cells | 30 cells | 45 cells |
Rated Energy @ 25˚C, kWh | 2.4kWh | 4.8kWh | 7.2kWh |
Maximum Discharge Power kW | 9.6kW (4C) | 19.2kW (4C) | 14.4kW (3C) |
Terminal Output | Connectors | ||
Dimensions (mm) WxDxH | 424 x 445 x 177 | 424 x 610 x 177 | 424 x 850 x 177 |
Net Weight (kgs) | 25 | 45 | 60 |
CABINET SYSTEM SPECIFICATIONS | |||
Cabinet Model Number | PTG480vLFP50/24/4C | PTG480vLFP100/48/4C | PTG480vLFP150/72/3C |
Configuration | 10 battery modules (model code as above) + 1 control module | ||
Rated Charge Rate @ 25˚C | 1c | ||
Max. Discharge Rate 25˚C | 4C | 4C | 3C |
Max. Capacity | 50Ah | 100Ah | 150Ah |
Rated Energy | 24kWh | 48kWh | 72kWh |
Maximum Continuous Discharge kW | 96kW (4C) | 192kW (4C0 | 216kW (3C) |
Rated Voltage Nomianl | ±240VDC | ||
Battery Voltage Range | ±210 - ±266VDC | ||
Communication | CAN, RS485, DRY Contacts | ||
BMS | Adaptive BMS | ||
Dimensions (mm) WxDxH | 600 x 550 x 2000 | 600 x 800 x 2000 | 600 x 950 x 2000 |
Net Weight (kgs) | 550 | 720 | 950 |
