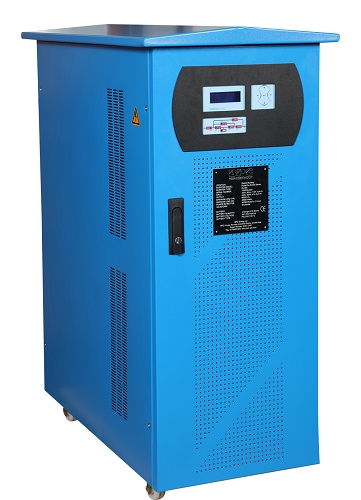

PowerPro EL300DSP

Three Phase Input & Output Static Inverter

10kVA - 160kVA

The PowerPro EL ranges are Static Inverter Systems designed specifically for emergency lighting applications according to European BS EN50171, EN50272-2, BS 5266, and ICEL 1009 specifications.

The PowerPro EL300DSP Series is a high-performance range of Static Inverters manufactured using the latest advanced Digital Signal Processor (DSP) technology producing microprocessor-controlled pure sinewave output to critical emergency lighting loads.

Download brochure


  • Three Phase Input & Output
  • 10kVA - 160kVA

EL300 models are designed to provide three phase input and output as required by the latest European EN 50171 specification for Emergency Lighting. The significant advantage of using PowerPro EL Static Inverters for Emergency Lighting is the ability to supply tightly regulated and controlled sinewave power to a wide range of normal functional or decorative mains luminaires as emergency fittings.

EL300 models have three phase rectifiers with "Soft Start" control incorporating thyristor-controlled bridge circuitry to limit inrush current and prevent overloading marginally rated mains supplies. These models provide an excellent solution for higher power, three phase loads and can also reduce the need for extensive re-cabling during installation.

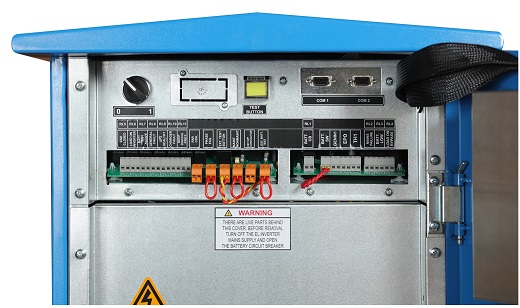

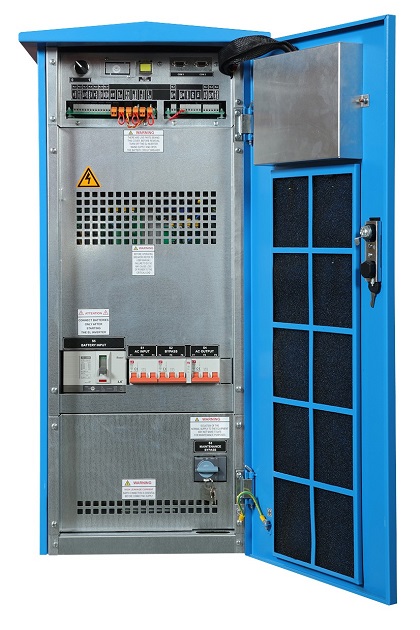

All PowerPro EL Static Inverters are simple and easy to install with all input and output terminals conveniently positioned with front access, ensuring ease of positioning, and trouble-free installation and maintenance. Low MTBF (mean time between failure) and low MTTR (mean time to repair) are both fundamental to the PowerPro EL design.

  • True sinewave and PWM microprocessor controlled technology
  • Recharge batteries up to 80% within 12 hours
  • FAR Controls including 48 Vdc suppy for Fire Alarm Panel
  • Selectable Non-Maintained / Maintained Mode with external control (if external contactor fitted)
  • External phase failure connection (if external contactor fitted)
  • External Test Facility included
  • Unique inverter design to suit high inrush lighting loads
  • User selectable Inverter or Changeover Mode
  • LCD panel providing accurate detailed information about load, batteries and inverter with advanced diagnostics
  • RS232 and dry contacts for communication and remote monitoring
Power Rating kVA / kW 10 / 9 20 / 18 30 / 27 40 / 36 60 / 54 80 / 72 100 / 90  120 / 108 160 / 144
Nominal Voltage 380/400/415 Vac (3Ph + N + PE)
Voltage Range +15%
Power Factor 0.99
Harmonic Distortion <5% at 100% load
Frequency Range 50Hz +5%
Nominal Voltage 230 / 400 Vac (3Ph + N + PE)
AC Voltage Regulation +2%
Frequency Range +1%
Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion     (Linear Load) <3%
Transfer Time <0.5 secs="" td="">
Waveform Sinewave
Load Circuits 1
Overload 120% continuous, 120 - 150% for 10 mins, 150 - 180% for 1 min
Mode Operation Changeover or Inverter selectable
Maintained / Non-Maintained Maintained (standard) / Non-Maintained (optional)
Battery Type VRLA AGM Sealed Lead Acid Maintenance Free Batteries / Nickel Cadmium Batteries / Plante Batteries
Internal / External 1 or 3 hour external
End of Life to EN50171 Included
Charge Battery to 80% within 2 hours Included
Deep Discharge Protection Included
DC Earth Leakage Optional
External Mains Fail Test Connection Included
Non-Maintained Mode Connection** Included
FAR Connection** Included
External Phase Fail Connection** Included
24Vdc Supply for External Contactor Included
KNX Interface Optional
Volt Free Contacts 9
Operating Temperature 0 - 40°C
Operating Humidity 10 - 90% (non-condensed)
Acoustic Noise <62db 1="" metre="" td=""> <64db 1="" metre="" td=""> <68db 1="" metre="" td="">
Protection Degree IP20
Dimension (mm) WxDxH (Excluding Batteries) 400 x 815 x 1040 515 x 855 x 1440 880 x 775 x1900
Net Weight (kgs) (Excluding Batteries) 91 100 173 197 209 220 232 265 482
** Only applicable if Non-Maintained Option fitted
