PowerTower Green CMS Series

Online Double Conversion Modular UPS

15kVA up to 1200kVA (parallel options up to 4.8MVA).

BPC Energy have introduced new 15kVA, 25kVA, 50kVA and 75kVA modules to provide even better vertical and horizontal scalability offering end users and data centre management power protection capacity from 15kVA up to 1200kVA in single newly-developed dedicated cabinets and parallel options up to 4.8MVA.

BPC Energy have the widest choice of selected capacity modular options in the UPS industry and design specifically for data centres, computer systems and
critical applications. PowerTower Green CMS Range is capable of achieving exceptional efficiency of ›96.5% in online double conversion mode. Also includes advances technology that boosts efficiency to above 96% at lower loads such as only 30% to 50% without effecting the online protection.

Where sites have stable mains supply and, at times, the critical loads are inactive, it would be possible to consider the ECO economy mode where efficiency of
99% can be achieved. However, note that there is a fractional break in power while the UPS switches back to the inverter.

Unique to the PowerTower Green PTG25UM/PTG50UM & PTG75UM modules are the new “SMART Energy” option which is the introduction of the “Ultra Saving Line
Mode” which can achieve efficiency up to 98.8% still meeting the IEC62040 power supply quality to the load. In addition to the backup function the modules can be used to save operating costs during peak loading.

Download brochure

Features

  • Financial Data Centre
  • Internet Data Centre
  • Disaster Recovery Data Centre
  • Telecom Central Systems
  • Government Authorities

OPTIMAL CAPITAL INVESTMENT

The BPC PowerTower can be scaled in vertical modular steps up to 1200kVA of power in a single frame, providing a cost effective method of building any data centre without oversizing that can result in energy waste. Flexibility and cost effective ‘right sizing’ of any UPS system must be priority when
increasing or decreasing power to meet future requirements.

EXCELLENT POWER PERFORMANCE

The PowerTower UPS has a near unity input power factor at full load, reducing the size of the input cables/fuses. Low total input harmonic distortion ( THDi ‹3%) reduces load pollution, increases power quality and optimises generator sizing. Overall this excellent power performance directly translates
into significant reduction in installation costs and extends the life of valuable equipment.

DYNAMIC AIR FLOW AND DUST FILTERS

The PowerTower Green dynamic air flow technology takes cool air from the front of each module. Simply directing the heat dissipated from the active power electronics and exhausting the higher core temperature out the rear. ncorporating dust filters into each cabinet for optimum cooler
and cleaner design resulting in longer component design life and increasing periods between maintenance visits. Available as standard on 25kVA, 50kVA & 75kVA modular cabinets.

SMALL FOOTPRINT

The PowerTower Green can deliver one of the smallest surface areas; less than 500kW/m2 and requires minimal clearance around the unit so floor space required in data centres for UPS can be kept to an absolute minimum.

TRUE "HOT SWAP" CAPABILITIES

The BPC PowerTower modular UPS operates a true hot swap technology where each power module is automatically synchronised to the load sharing of the system. There is no need to identify individual power modules or sequence them in any particular order. The monitoring module is also designed to be hot swappable, making system maintenance easy. Simply insert the power and monitor modules into the slots and engage. The process of replacement or vertical scalability is easily achieved, and hot swapping means no downtime and the service/ operating personnel do not require
special skills.

EASY INSTALLATION AND OPERATION

The PowerTower offers a flexible install so assembly time is greatly reduced. Bottom and top entry with generous cable management will simplify the more difficult installation. BPC’s PowerTower Green UPS is very easy to maintain and control, providing the highest reliability and best protection for
supplying power. Options are available for Galvanic Isolation Transformer cabinet, improved battery management, frequency conversion, conformal coating, input & output switchgear.

LOW MTTR AND 99.9999% AVAILABILITY

The ‘hot swap’ modularity design of the PowerTower Green provides a high mean time between failure (MTBF), allowing the user to replace and add modules without the risk of downtime, ultimately reducing mean time to repair (MTTR). Whereas a standalone unit takes typically 6 hours to repair,
the PowerTower modular UPS can be reduced to less than 30 minutes, giving ‘six nines’ power availability.

HIGH LOAD ADAPTIBILITY (BLADE FRIENDLY)

All PowerTower Green Modular UPS systems are provided with an output power factor of 0.9 & 1.0 , providing fully rated output active power without de rating in the range of 0.7 lagging to 0.8 loading in compliance with modern IT equipment.

SINGLE FRAME CONCEPTS

BPC offers more single frame solutions than any other manufacturer, with 12, 24, 36, 30, 60, 120, 150, 200, 250, 300, 400, 450, 500, 600, 900 & 1200kVA chassis, reducing the need to parallel cabinets and improving the reliability of installations. All systems can be configured to various input
and output configurations 1/1, 3/1, 1/3 and 3/3 phases.

FLEXIBLE MODULAR AND SCALABLE DESIGN

With the ever increasing demands of power, the PowerTower Green UPS allows you to increase your power capacity in small steps reducing initial costs and over sizing. This flexibility can extend both vertically and horizontally so as your business grows, the PowerTower Green UPS grows with you.

HIGH EFFICIENCY

The PowerTower Green offers true online efficiency over 96.5% even at 30% load, significantly reducing system running costs and site air conditioning expenses, thus helping to reduce the organisations carbon footprint.

Taking a small to medium data centre 200kVA/180kW load and air conditioned with coefficient performance of 3:1


• Save 127,144KwH per year compared to traditional UPS (90% efficiency)
• Save 210,240KwH per year compared to legacy UPS (86% efficiency)


In DC/AC inverter mode, when the power supply is not present, the battery efficiency is over 95% reducing actual battery capacity requirement and improving design life.

TOTAL COST OF OWNERSHIP (TCO)

The PowerTower Green UPS offers today’s data centre management the opportunity for sustainability and future growth. With flexibility and scalability combined with lower cost of service contracts, short and long term, it can increase savings on overall operations.

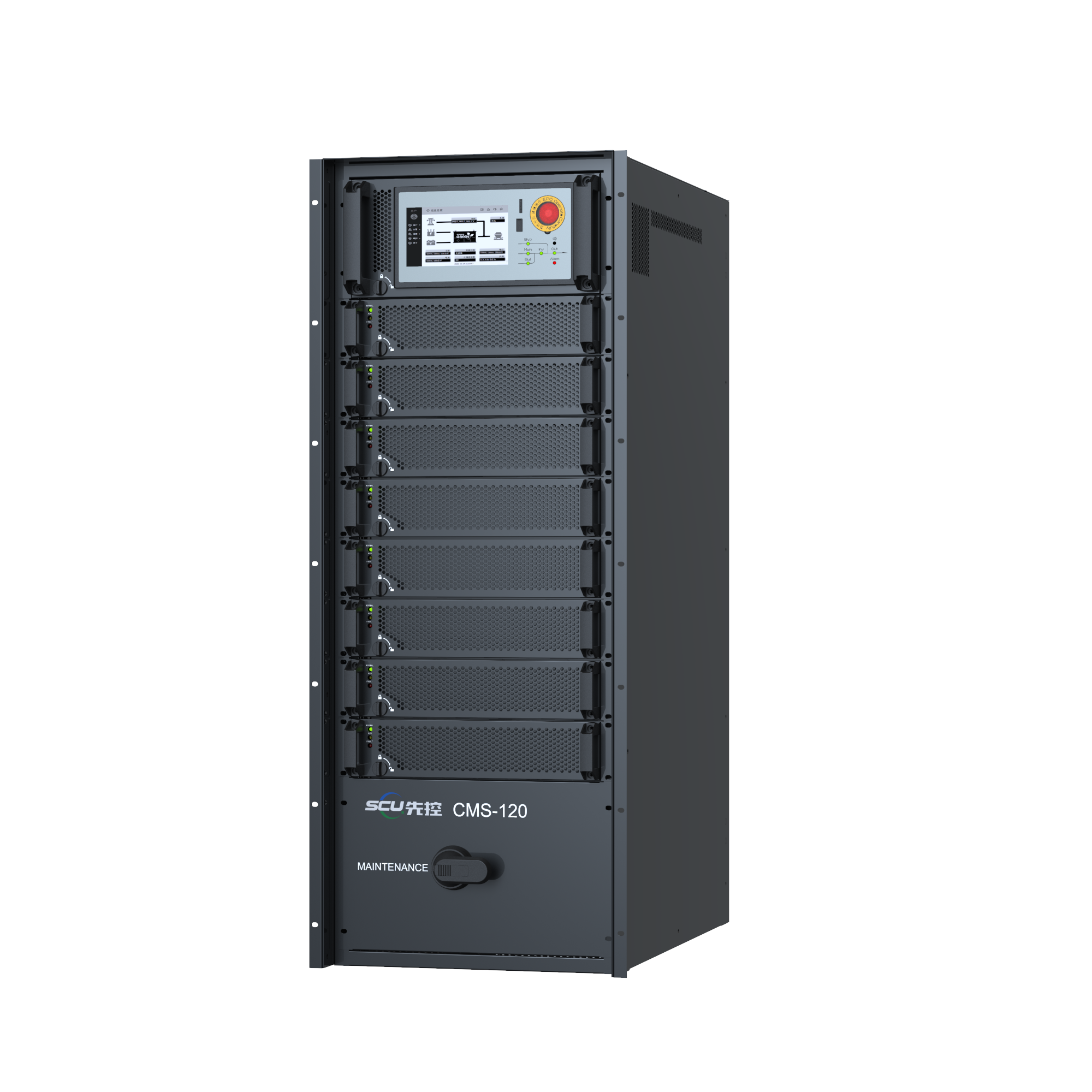

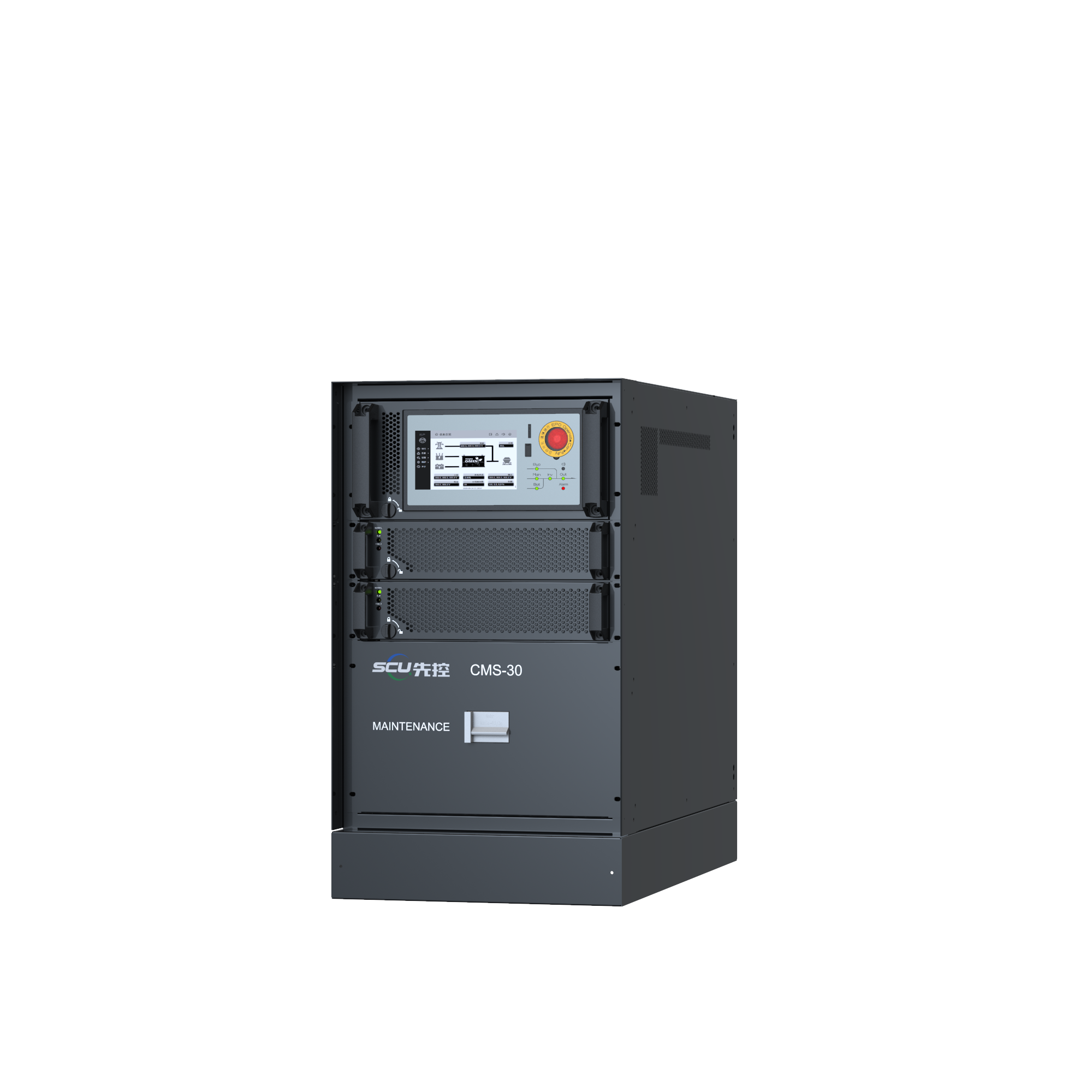

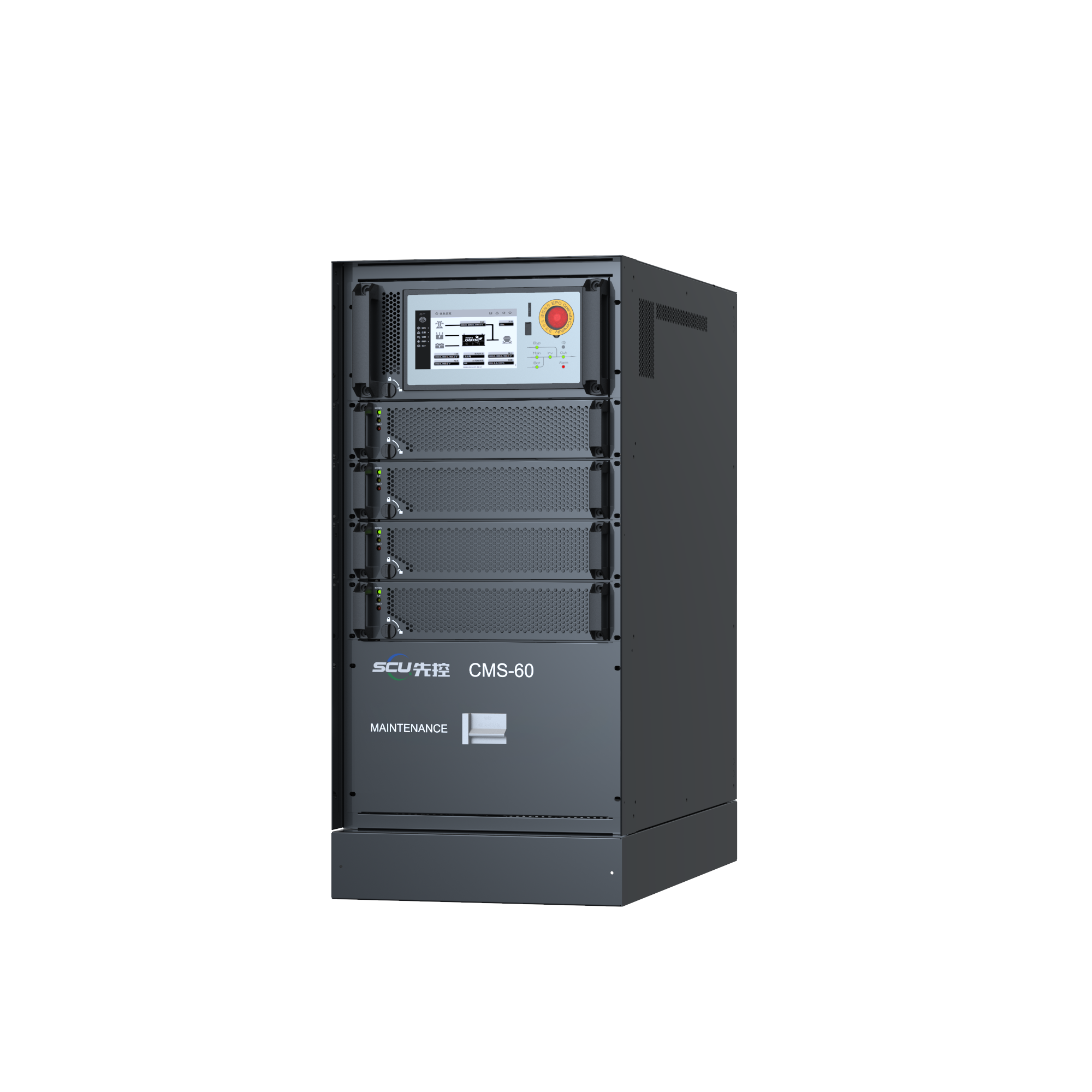

MODEL - CABINET PTGCMS 30/15U PTGCMS 60/15U PTGCMS 120/15U
Power Rating kVA/kW 30 60 120
Compatible Power Module PTG15UM
INPUT
Nominal Voltage 380V / 220V, 400V / 230V, 415V / 240V (1Ph + N + E, 3Ph + N + E)
Voltage Range 176 - 276 @ full load : 132 - 276 @ half load
Frequency Range 50 Hz or 60 Hz
Power Factor ≥0.99
OUTPUT
Nominal Voltage 380 Vac / 220 Vac, 400 Vac / 230 Vac, 415 Vac / 240 Vac (1Ph + N + E, 3Ph + N + E)
AC Voltage Regulation (Battery Mode) ±1%
Power Factor 1.0 Unity
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD <3%
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
ONLINE Mode >96%
ECO Mode >99%
Battery Mode >98%
BATTERY
Battery Type VRLA Sealed Lead Acid/ Gel/ Lithium/ Nickle Cadmium Maintenance Free Batteries
Rated DC Voltage Nominal ±240Vdc (rated 40 blocks x 12Vdc: settable from 32 - 44 blocks)
Charging Ability 10 hours (2 hours back up)
Charging Voltage Stability ±1%
GENERAL
Display Touch LCD/LED Screen
Communication RS232, RS485, 8 dry contacts, TCP/IP adaptor, SNMP (optional)
Operating Temperature 0 - 40°C
Operating Humidity 0 - 90% (non-condensed)
Acoustic Noise 70 dB @ 1 metre
Protection Degree IP20
Cabinet (Single) Dimensions (mm) WxDxH 442 x 800 x 662 442 x 800 x 840 442 x 800 x 1195
Cabinet (single) Weight (kgs) 82 92 118
MODEL - POWER MODULE PTG15UM
Capacity kVA/kW 15kVA/15kW
Input/Output Mode 1/1, 3/1, 1/3, 3/3 (Ph + N + E)
Input Power Factor ≥0.99
THDI ≥3%
Overload Ability 110% for 60 mins, 125% for 10 mins, 150% for 1 sec
Max. Charging Power 3A
Max. Heat Dissipation 590W
Dimensions (mm) WxDxH 380 x 590 x 88
Net Weight (kgs) 16

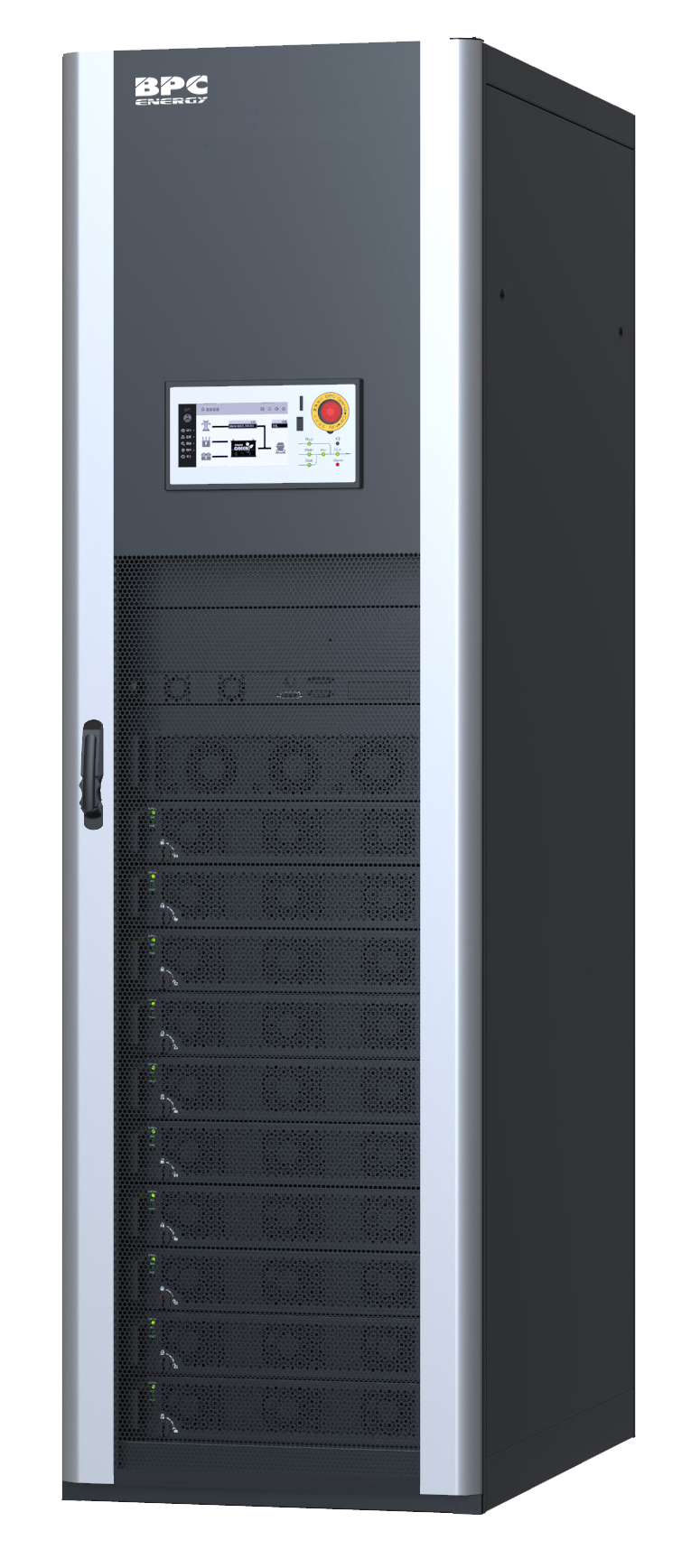

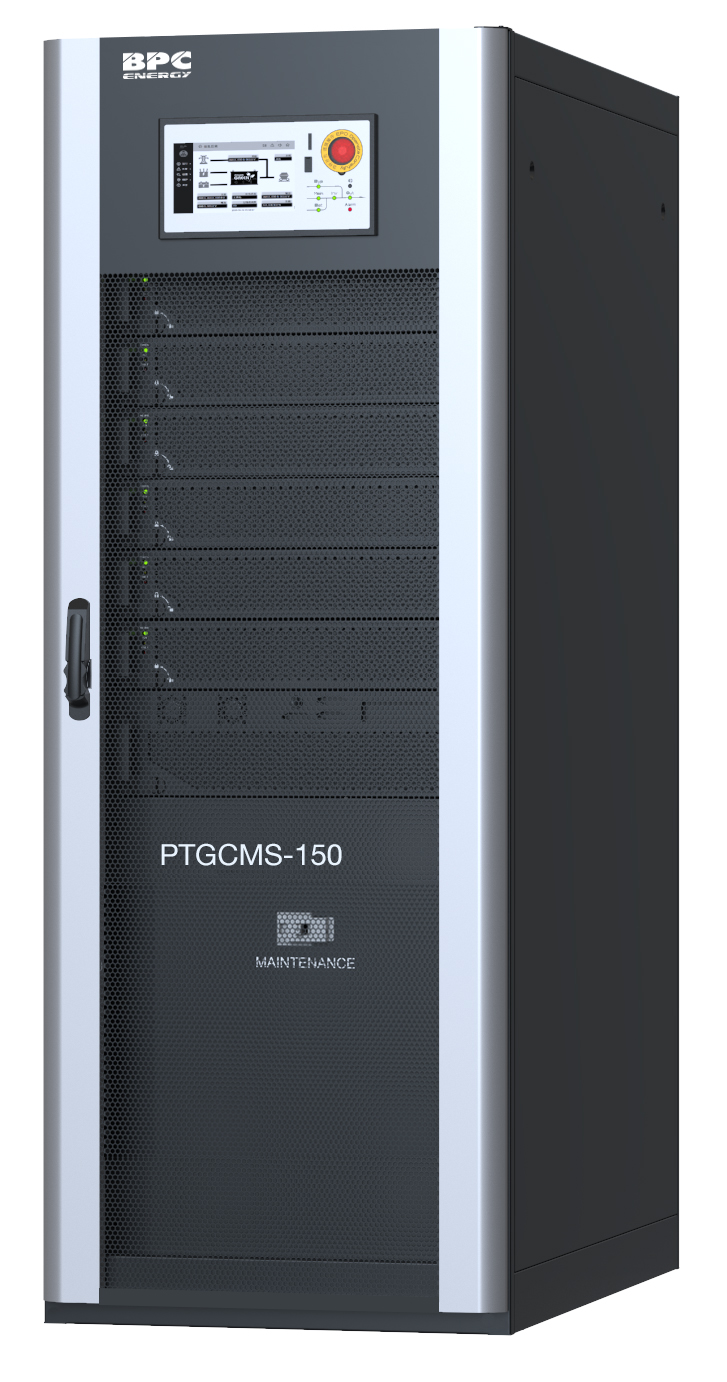

MODEL - CABINET PTGCMS150/25U PTGCMS250/25U
Power Rating kVA/kW 150/150 250/250
Compatible Power Module PTG25UM
INPUT
Nominal Voltage 380 V / 220 V, 400 V / 230 V, 415 V / 240 V (1Ph + N + E, 3Ph + N + E)
Voltage Range 176 - 276 @ full load : 132 - 276 @ half load
Frequency Range 50 Hz or 60 Hz
Power Factor ≥0.99
OUTPUT
Nominal Voltage 380 Vac / 220 Vac, 400 Vac / 230 Vac, 415 Vac / 240 Vac (1Ph + N + E, 3Ph + N + E)
AC Voltage Regulation (Battery Mode) ±1%
Power Factor 1.0 Unity
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD ≤3%
Transfer Time Zero
Waveform Waveform
EFFICIENCY
ONLINE Mode >96%
ECO Mode 99%
Battery Mode >95%
BATTERY
Battery Type VRLA Sealed Lead Acid / Gel / Lithium / Nickel Cadmium Maintenance Free Batteries
Rated DC Input Voltage Nominal ±240Vdc (rated 40 blocks x 12Vdc: settable from 32 - 44 blocks)
Charging Ability 10 hours (2 hours back up)
Charging Voltage Stability ±1%
GENERAL
Display Touch LCD/LED Screen
Communication RS232, RS485, 8 Dry Contacts, TCP/IP Adaptor, SNMP (Optional)
Operating Temperature 0 - 40°C
Operating Humidity 0 - 90% (non-condensed)
Acoustic Noise 70 dB @ 1 metre
Protection Degree IP20
Cabinet (Single) Dimensions (mm) WxDxH 600 x 1000 x 1600 600 x 1000 x 2000
Cabinet (Single) Net Weight (kgs) 210 260
MODEL - POWER MODULE PTG25UM
Capacity kVA/kW 25/25
Input/Output Mode 1/1, 3/1, 1/3, 3/3, (Ph + N + E)
Input Power Factor ±0.99
THDI ≥3%
Overload Ability 110% for 60 mins, 125% for 10 mins, 150% for 1 sec
Max. Charging Power 5A
Max. Heat Dissipation 900W
Dimensions (mm) WxDxH 442 x 590 x 88
Weight (kgs) 19

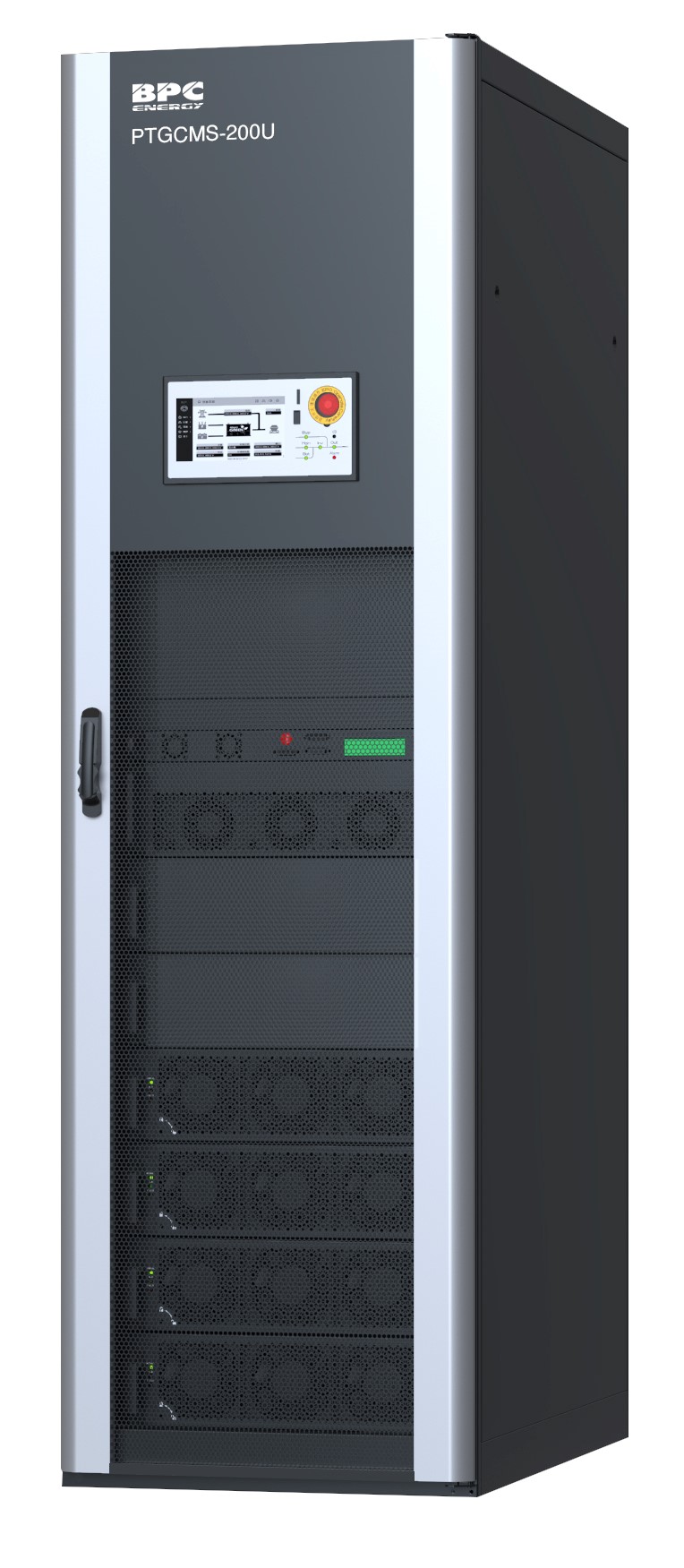

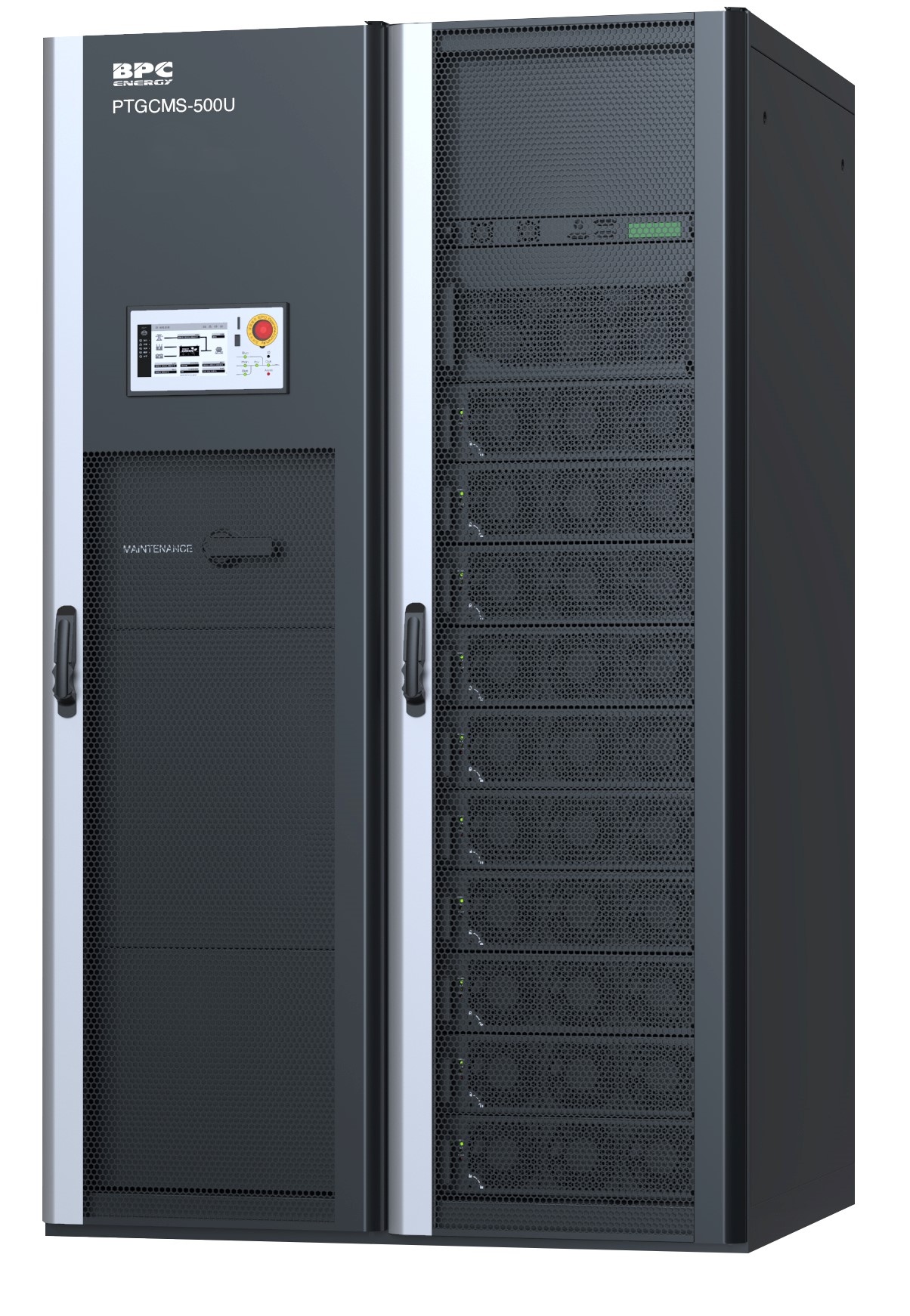

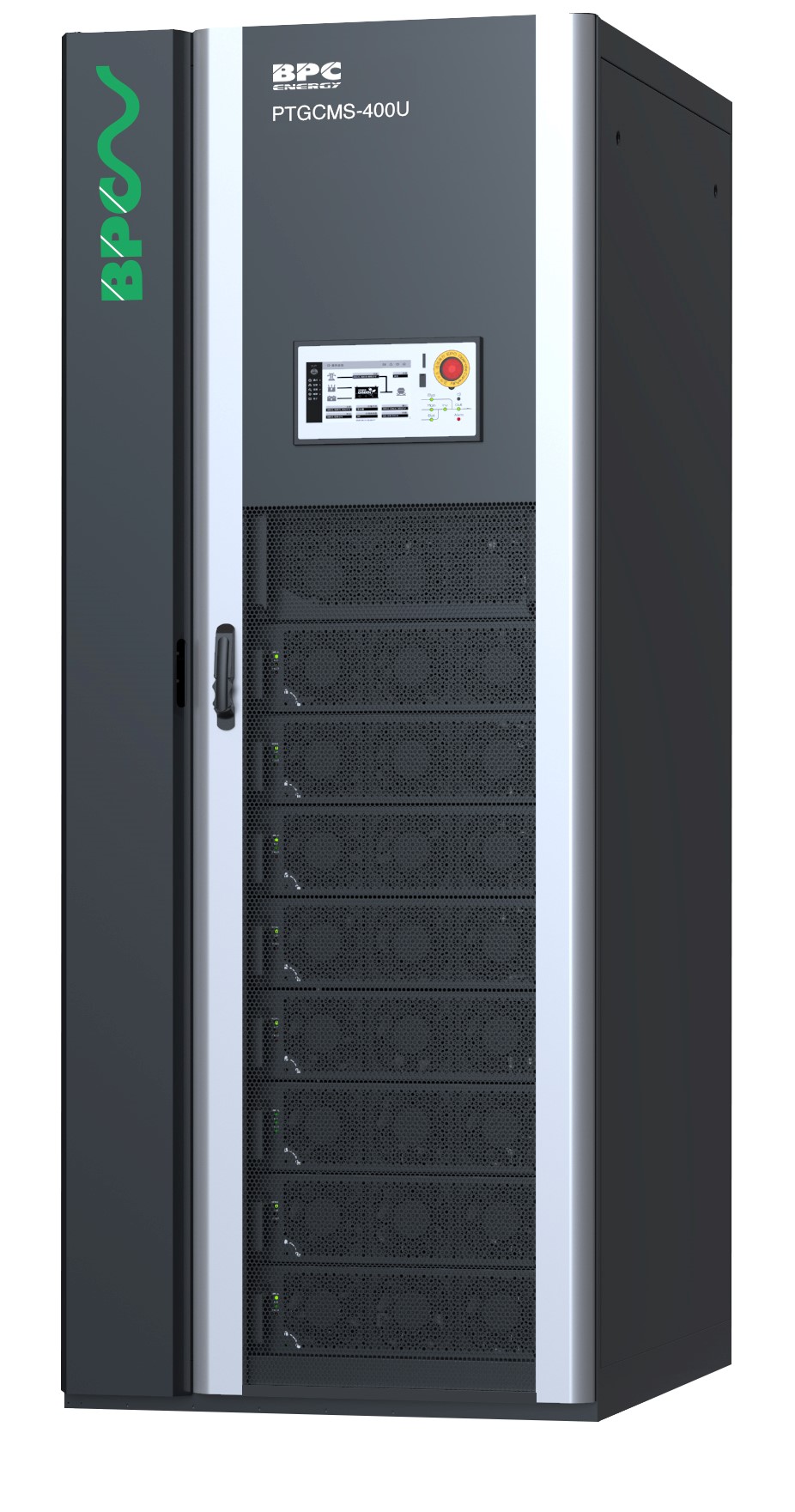

MODEL - CABINET PTGCMS200/50U PTGCMS300/50U PTGCMS400/50U PTGCMS500/50U
Power Rating kVA/kW 200 300 400 500
Compatible Power Module PTG50UM
INPUT
Nominal Voltage 380V/220VAC, 400V/230VAC, 415V/240VAC
Voltage Range 132-276 VAC, (If 132-176VAC, 50% load max.)
Frequency Range 40-70Hz
Power Factor ≥0.99
OUTPUT
Nominal Voltage 380V/220VAC, 400V/230VAC, 415V/240VAC
AC Voltage Regulation (Battery Mode) ±1%
Power Factor 1.0 Unity
Crest Factor 3:1
Harmonic Distortion (Linear Load) ≤2%
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
ONLINE Mode 96.5%
ECO Mode 99%
Battery Mode ›95%
BATTERY
Battery Type VRLA Sealed Lead Acid / Gel / Lithium / Nickel Cadmium Maintenance Free Batteries
Rated DC Input Voltage Nominal ±240Vdc (rated 40 blocks x 12Vdc: settable from 32 - 44 blocks)
Charging Ability 10 hours (2 hours back up)
Charging Voltage Stability ±1%
GENERAL
Display Touch LCD/LED Screen
Communication RS232, RS485, 8 Dry Contacts, TCP/IP Adaptor, SNMP (Optional)
Operating Temperature -5°C - 40°C
Operating Humidity ≤95%, (non-condensed)
Acoustic Noise ≤70 dB @ 1 metre
Protection Degree IP20
Cabinet (Single) Dimensions (m) WxDxH 600 x 1000 x 1600 900 x 1000 x 1200 900 x 1000 x 2000 1200 x 1000 x 2000
Cabinet (Single) Net Weight (kgs) 220 300 340 380
MODEL - POWER MODULE PTG50UM
Capacity kVA/kW 50/50
Input/Output Mode 1/1, 3/1, 1/3, 3/3, (Ph + N + E)
Input Power Factor ≤0.99
THDI ‹3%
Overload Ability 110% for 60 mins, 125% for 10 mins, 150% for 1 sec
Max. Charging Power 6kW
Max. Heat Dissipation 1500W
Dimensions (mm) WxDxH 482 x 622 x 129
Weight (kgs) 30

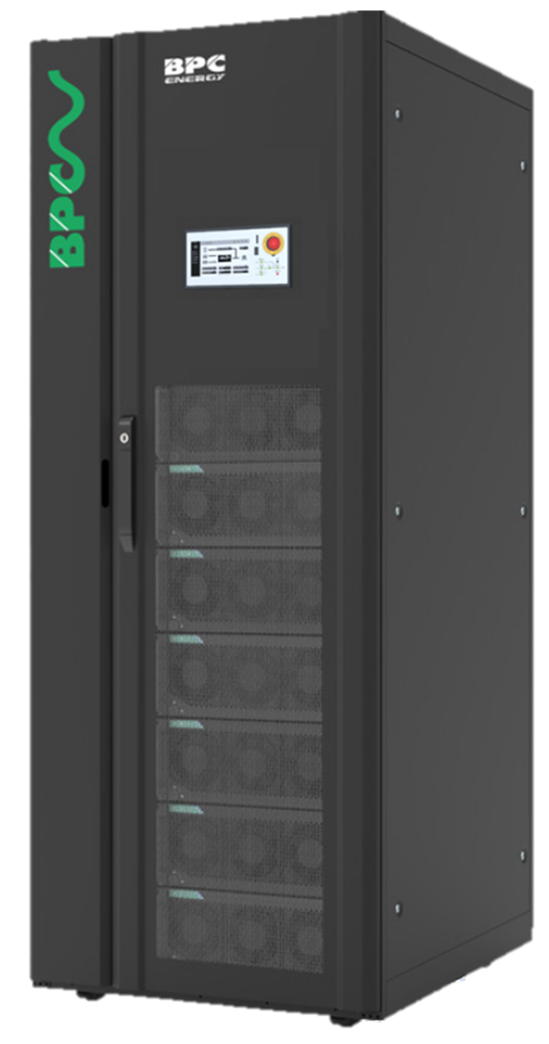

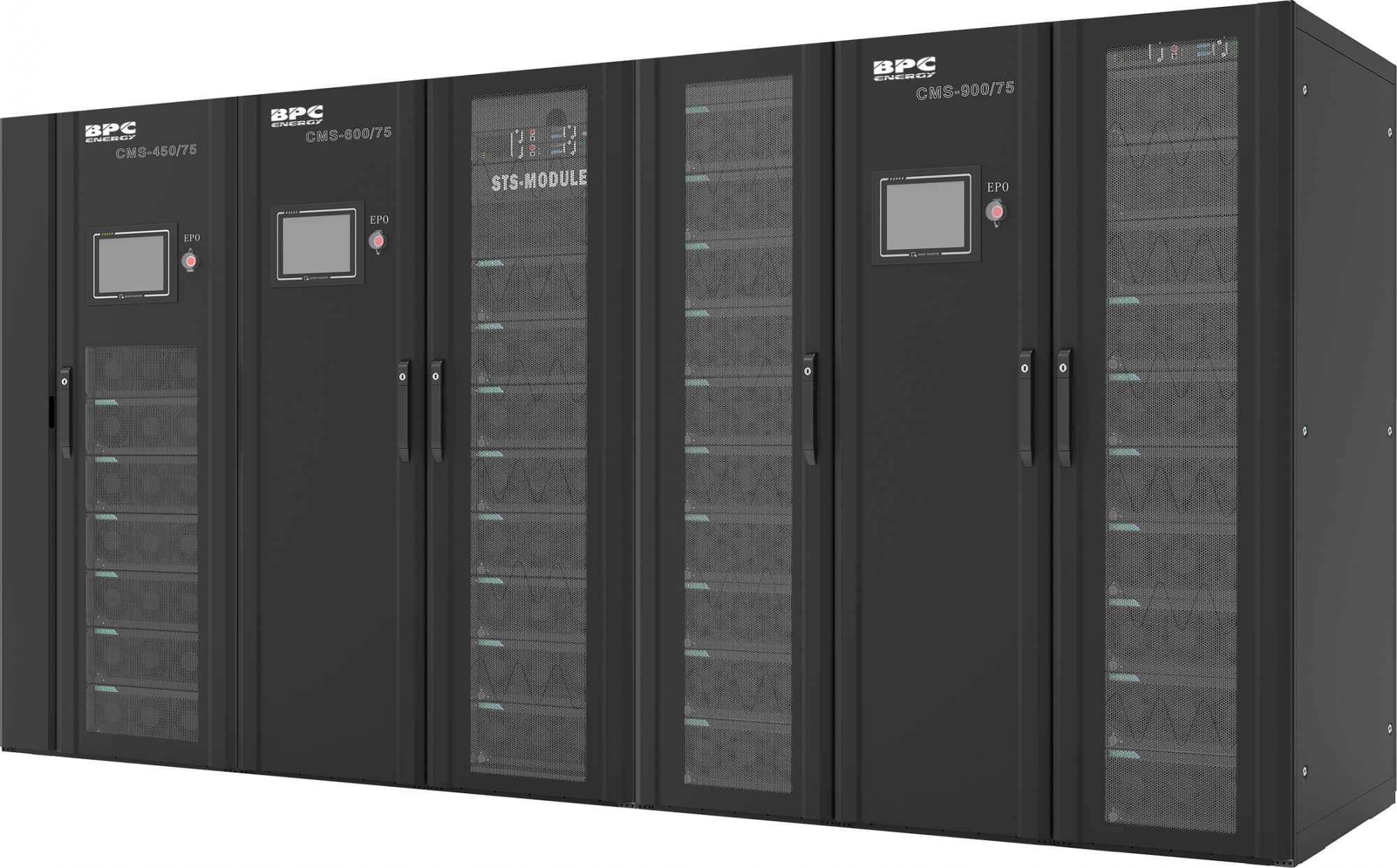

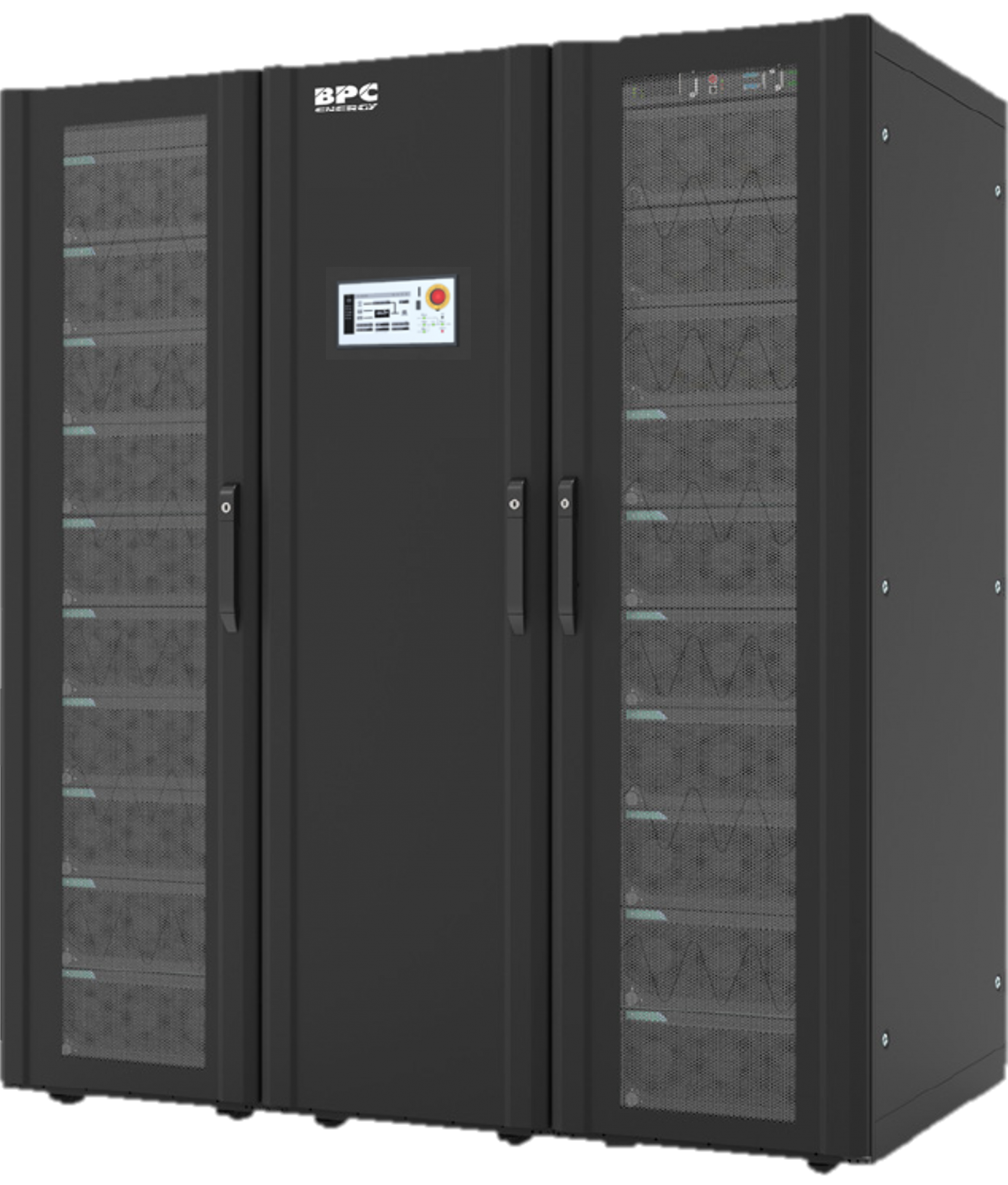

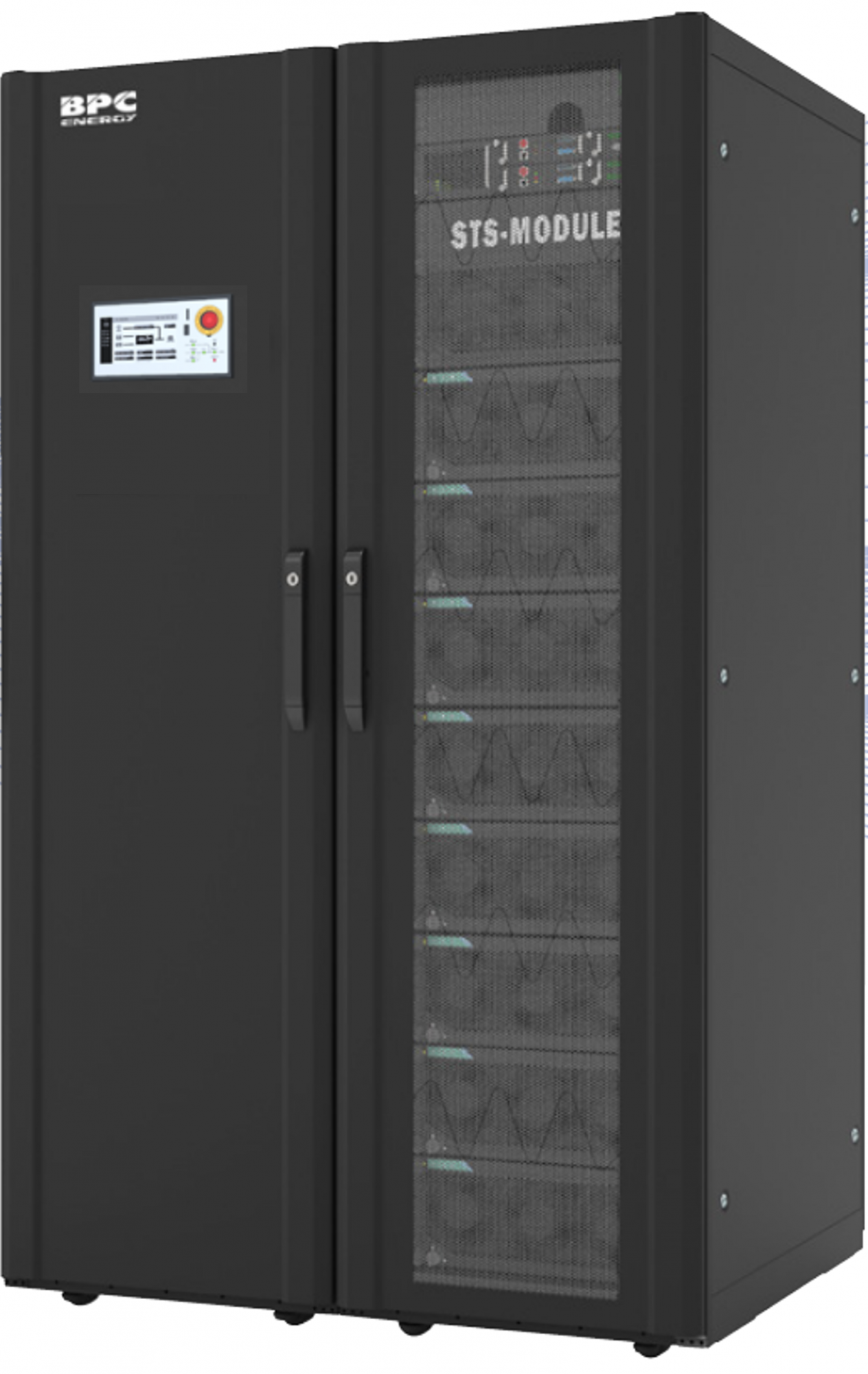

MODEL - CABINET PTGCMS450/75U PTGCMS600/75U PTGMCS900/75U PTGCMS1200/75U
Power Rating kVA/kW 450/450 600/600 900/900 1200/1200
Compatible Power Module PTG75UM
INPUT
Nominal Voltage 380 V / 220 V, 400 V / 230 V, 415 V / 240 V (1Ph + N + E, 3Ph + N + E)
Voltage Range 176 - 276 @ full load : 132 - 276 @ half load
Frequency Range 50 Hz or 60 Hz
Power Factor ≥0.99
OUTPUT
Nominal Voltage 380 Vac / 220 Vac, 400 Vac / 230 Vac, 415 Vac / 240 Vac (1Ph + N + E, 3Ph + N + E)
AC Voltage Regulation (Battery Mode) ±1%
Power Factor 1.0 Unity
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD ≤3%
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
ONLINE Mode ›96.5%
ECO Mode ›99%
SMART Energy Mode ›98.5%
Battery Mode ›95%
BATTERY
Battery Type VRLA Sealed Lead Acid / Gel / Lithium / Nickel Cadmium Maintenance Free Batteries
Rated DC Input Voltage Nominal ±240Vdc (rated 40 blocks x 12Vdc: settable from 32 - 44 blocks)
Charging Ability 10 hours (2 hours back up)
Charging Voltage Stability ±1%
GENERAL
Display Touch LCD/LED Screen
Communication RS232, RS485, 8 Dry Contacts, TCP/IP Adaptor, SNMP (Optional)
Operating Temperature 0 ~ 40°C
Operating Humidity 0-90% (non-condensed)
Acoustic Noise 70dB @ 1 metre
Protection Degree IP20
Cabinet (Single) Dimensions (mm) WxDxH 900 x 1000 x 2000 1200 x 1000 x 2000 1800 x 1000 x 2000 2000 x 1000 x 2200
Cabinet (Single) Net Weight (kgs) 364 413 658 700
MODEL - POWER MODULE PTG75UM
Capacity kVA/kW 75/75
Input/Output Mode 1/1, 3/1, 1/3, 3/3, (Ph + N + E)
Input Power Factor ±0.99
THDI ≥3%
Overload Ability 110% for 60 mins, 125% for 10 mins, 150% for 1 sec
Max. Charging Power 15A
Max. Heat Dissipation 2900W
Dimensions (mm) WxDxH 482 x 628 x 176
Weight (kgs) 45
