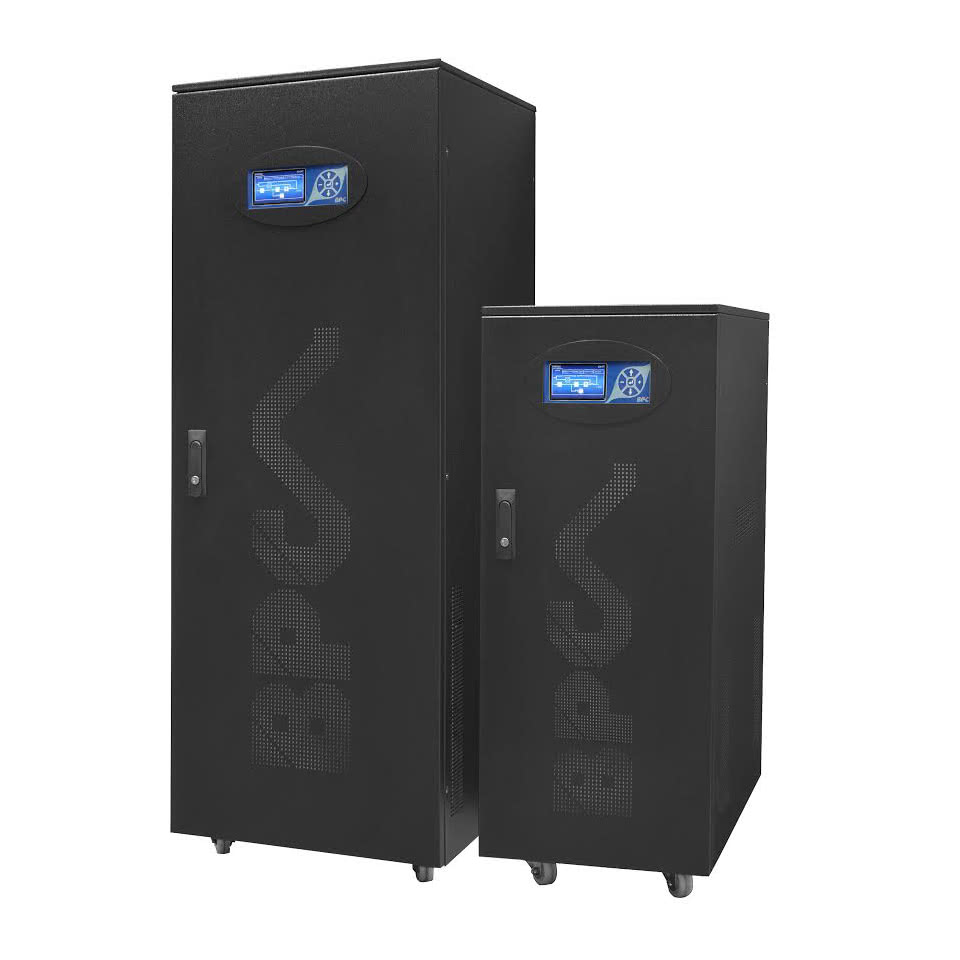

PowerPro EF 300 Series

PowerPro EF300 Series

Three Phase Input & Output Online Transformerless UPS

10kVA - 650kVA (Parallelable up to 5.2MVA)

The PowerPro Eco-Friendly Uninterruptible Power Supply is a combination of BPC's advanced Digital Signal Processor (DSP) control technology and a firm pursuit of a green manufacturing philosophy.

With minimum space, fewer components and controlled levels of noise pollution, the PowerPro EF 300 Series has a significantly reduced environmental impact. Therefore, it is feasible to design a UPS with reduced carbon footprint whilst achieving clean, continuous power for industrial and computing loads.

Download brochure

Features

  • Data Centres
  • Financial Services
  • Healthcare
  • Industrial
  • Telecommunications

MODULAR DSP ARCHITECTURE

The PowerPro EF300 Series is designed with internal DSP architecture, with seperate DSP for the Rectifier, Inverter and display. With the use of a CAN Bus System, other modules can be added easily to update or configure the system for multiple use design.


INCREASED RELIABILITY

Up to 8 PowerPro EF300 units can be connected in parallel, providing a total power capacity of 5.2MVA. The system can also be configured to provide N+1 redundancy offering the highest reliability. This flexibility allows you to install a system that can grow with your business power requirements.


ADVANCED COMMUNICATIONS

The PowerPro EF300 Series comes with internal and external SNMP options with full environmental features. The UPS has a specially designed USB memory stick to record internal history of the system which provides easy way to send information of UPS faults to the BPC Technical team for analysis if there are any concerns with the UPS operation.


LOW RUNNING COSTS

Low Total Harmonic Distortion (THDi) and close to unity power factory mean better matching of generators and reduced costs due to oversizing.


SPACE SAVING DESIGN

The PowerPro EF300 Series has been designed with class leading power density, maximising valuable floor space in your data centre. The range boasts small footprints of 0.32² up to 30kVA, 0.44m² up to 160kVA, 0.68m² up to 250kVA and 0.97m² up to 500kVA.

ADVANCED GRAPHIC DISPLAY
A precise graphic backlit display providing real time status and parameter readings via its own DSP controller. An easy to navigate control pad allows for a complete and comprehensive overview of measurements, controls and settings with event logging up to 192 event memory record system.


HARSH ENVIRONMENTS
The PowerPro EF300 Series can be offered with IP31 or IP42 options (others on request) to safeguard against unstatble environments where the need to counter ingress of harmful particles and liquids is essential.


MULTIPLE APPLICATIONS

PowerPro EF300 LIFT Series

With new BS999 regulations now stating that lifts used for an evacuation are required by law to have their own independent back up supply, the EF300 LIFTS UPS has become the ideal solution.

EF LIFT Regenerative Load Operation

The EF LIFT UPS incorporates an intelligent braking system, using IGBT controllers to electronically absorb any regenerative back feed energy from the lift. Regenerative load causes reverse current to flow to the output of the UPS system. This reverse energy causes the internal DC bus within the UPS to rise above safe levels of the UPS design and can cause damage to the DC Capacitors, Rectifier and Inverter. The PowerPro EF Lift system has a separate IGBT Controlled Regeneration Box that connects directly to the UPS DC Bus. The DC bus voltage of the UPS typically floats at ±405Vdc and can boost up to 435Vdc. The Regen Box monitoring system continuously analyses the internal rise of the DC bus voltage, when the voltage increases over 435Vdc fast switching IGBTs connect DC resistors and dissipate the energy into heat, protecting the UPS components and Inverter operation. When the DC bus voltage decreases back down to an acceptable level, the Regen Box self deactivates.

PowerPro EF300 MEDICAL Series

With specially designed DSP software, the EF MEDICAL UPS provides better operation against MRI loads that have transformers at their input. The MEDICAL UPS also has better operation against short circuits and provides higher inrush capacity to prevent problems caused by IGBT saturation. The system has the capability to accommodate an Internal Galvanic Isolation Transformer up to 60kVA whilst systems up to 600kVA have the Isolation Transformer provided in a matching battery cabinet design.

PowerPro EF300 HYBRID Series

The PowerPro EF300 HYBRID Series senses the availability of solar power, grid power and the battery power for supplying the connected loads, using the most economical and ecological combination of these energy sources. The system primarily works from solar wenergy to return your investment. MPPT algorithm provides maximum energy available in the PV panels to the load connected at the output of the solar converter which arranges power redundancy automatically. The battery bank stores the unused clean energy and protects against power failures.

PowerPro EF300 TR Series

The PowerPro EF300TR series completes the range offering a UPS incorporating galvanic isolation on the output of the inverter. This technology enables complete galvanic isolation between the DC bus and the output to the loads to ensure power continuity. The series is available from 10kVA to 600kVA, providing a solution for any application.

MODEL EF 310C (U) EF 315C (U) EF 320C (U) EF 330C (U)
Power Rating kVA / kW 10 / 9 15 / 13.5 20 / 18 30 / 24
INPUT
Voltage 380 / 400 Vac 3P + N + G ± 20% (415 Vac + 15%, -25% optional)
Frequency 50 Hz / 60 Hz ±5%
Power Factor (at 100% load) ≥0.99
THD (at 100% load) ≤4% (depends on mains input conditions)
Bypass Voltage 380 / 400 Vac 3P + N, 4 wires, ± 10%
Protection Fuses, Voltage & Frequency Tolerance
OUTPUT
Power Factor 0.9 (unity 1.0 optional) 0.8
Voltage 380/400 VAC 3P + N + G ± 1% (415 VAC optional)
Frequency 50 Hz / 60 Hz
Frequency Tolerance Line synchronized: ± 2% / Free running ± 0.1%
Efficiency (at 100% load) 94%
Crest Factor 3:1
Overload Protection 100% - 125% load: 10 min, 125% - 150% load: 1min, - ›150% load: by pass
Protection Fuses, Advanced short circuit, Voltage tolerance, DC balance, Regenerative load, Current limiting
Voltage THD ≤2% (at 100% linear load)
BATTERIES
Number Battery / Type 60 (± 30) batteries (Internal battery options available)
Float Charging Voltage ± 405 VDC (adjustable)
End of Discharge Voltage ± 300 VDC (adjustable)
Battery Protection 3 level alarms, Battery fuses, Charging current limit, Temperature compensation (optional)
Automatic Battery Test Standard: Every 72 hours (adjustable)
GENERAL
Advanced Self diagnostics, 3 maintenance time indicators, Calibration over RS232, Operating hour meter
Communication RS232 Serial port, 4 standard DRY contact alarm relays
Protection Power module over temperature, Over current, Temperature high alarms / IP21
Operating Temperature / Relative Humidity / Altitude 0˚C - 40˚C / 90% max. (non condensing) / ›1000m above sea level
Accoustic Noise ›55dBA ›57dBA
Dimensions (mm) W x D x H 300 x 770 x 700 (without battery)
Weight (kg) 47.5 49.5 51 55
MODEL (with attached battery cab) EF310CBC9 EF315CBC9 EF320CBC9 EF330CBC9
Dimensions (mm) W x D x H 300 x 800 x 1170 (up to 9ah battery)
Weight (kg) 75 77 83 83
Comms. Adaptors Optional SNMP, MODBUS, RS485, Remote Panel, Bacnet
MODEL EF 310R (U) EF 315R (U) EF 320R (U) EF 330R (U) EF 340R (U) EF 360R (U) EF 380R (U) EF 3100R (U)
Power Rating kVA / kW 10 / 9 15 / 13.5 20 / 18 30 / 27 40 / 36 60 / 54 80 / 72 100 / 90
INPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
Voltage Range ±20 - 40% @ 70% load%
Frequency 50 Hz / 60 Hz, ±5%
Power Factor 0.99 @ full load (Unity Power Factor - optional)
Harmonic Distortion* ‹3% @ 100%
OUTPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
AC Voltage Regulation ±1%
Frequency Range 50 Hz or 60 Hz, ±2%
Power Factor 0.9 (Unity Power Factor optional)
Crest Factor 3:1
Harmonic Distortion (Linear Load) ‹3% @ 100% load
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
On-Line Mode Up to 95%
ECO Mode Up to 98%
BATTERY
Battery Type VRLA Sealed Lead Acid Maintenance Free Batteries, Nickel Cadmium Batteries
Battery Numbers ±60 blocks (Internal battery options available) 100kVA External Only
GENERAL
Operating Temperature 0 - 40°C
Operating Humidity 95% (non-condensed)
Acoustic Noise ‹57 dB @ 1 metre ‹62 dB @ 1 metre ‹65 dB @ 1 metre
Protection Degree IP20 (other on request)
Management Software Included
Dimensions (mm) WxDxH 400 x 815 x 1040 515 x 855 x 1440
Net Weight (kg) 93 97 100 173 197 209 220
Comms. Adaptors Optional SNMP, MODBUS, RS485, Remote Panel, Bacnet

*Depending on power and input/output conditions

MODEL EF 3120XU EF 3160XU EF 3200XU
Power Rating kVA / kW 120 / 120 160 / 160 200 / 200
INPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
Voltage Range ±20% - 40% @ 70% load
Frequency 50 Hz / 60 Hz selectable, ±5 Hz
Power Factor 0.99 @ full load (Unity Power Factor - optional)
Harmonic Distortion* ‹3% @ 100%
OUTPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
AC Voltage Regulation ±1%
Frequency Range 50 Hz / 60 Hz, ±2%
Power Factor Unity
Crest Factor 3:1
Harmonic Distortion (Linear Load) ‹2% @ 100% load
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
On-Line Mode Up to 95.5% Up to 96%
ECO Mode Up to 98%
BATTERY
Battery Type VRLA Sealed Lead Acid Maintenance Free Batteries, Nickel Cadmium Batteries, Gel Batteries
Battery Numbers ±60 blocks external
GENERAL
Operating Temperature 0 - 40°C
Operating Humidity 90% (non-condensed)
Acoustic Noise ‹62 dB @ 1 metre ‹65 dB @ 1 metre
Protection Degree IP20 (other on request)
Management Software Included
Dimensions (mm) WxDxH 475 X 890 X 1440
Net Weight (kg) 220 262 270
Comms. Adaptors SNMP, MODBUS, RS485, Remote Panel, Bacnet

*Depending on power and input/output conditions

MODEL EF 3250R EF 3300R EF 3400R
Power Rating kVA / kW 250 / 225 300 / 270 400 / 360
INPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
Voltage Range ±20%
Frequency 50 Hz / 60 Hz selectable, ±5 Hz
Power Factor 0.99 @ full load
Harmonic Distortion* ‹3% @ 100%
OUTPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
AC Voltage Regulation ±1%
Frequency Range 50 Hz / 60 Hz, ±2%
Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion (Linear Load) ‹3% @ 100% load
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
On-Line Mode Up to 94% Up to 95%
ECO Mode Up to 98%
BATTERY
Battery Type VRLA Sealed Lead Acid Maintenance Free Batteries, Nickel Cadmium Batteries, Gel Batteries
Battery Numbers ±60 blocks external
GENERAL
Operating Temperature 0 - 40°C
Operating Humidity 95% (non-condensed)
Acoustic Noise ‹68 dB @ 1 metre ‹73 dB @ 1 metre
Protection Degree IP20 (other on request)
Management Software Included
Dimensions (mm) WxDxH 880 x 775 x 1900 1245 x 775 x 1900
Net Weight (kg) 525 635 680
Comms. Adaptors SNMP, MODBUS, RS485, Remote Panel, Bacnet

*Depending on power and input/output conditions

Models are available up to 600kVA, contact us for more details

MODEL EF 310TR EF 320TR EF 330TR EF 340TR EF 360TR EF 380TR EF 3100TR EF 3120TR EF 3160TR EF 3200TR EF 3250TR EF3300TR
Power Rating kVA / kW 10 20 30 40 60 80 100 120 160 200 250 300
INPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
Voltage Range ±2%
Frequency 50 Hz / 60 Hz, ±5%
Power Factor 0.99 @ full load
Harmonic Distortion* ‹3% @ 100%
OUTPUT
Nominal Voltage 380 / 400 / 415 Vac (3Ph + N + PE)
AC Voltage Regulation ±1%
Frequency Range 50 Hz / 60 Hz, ±2%
Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion (Linear Load) ‹3% @ 100% load
Transfer Time Zero
Waveform Sinewave
EFFICIENCY
On-Line Mode Up to 93.5%
ECO Mode Up to 98%
BATTERY
Battery Type VRLA Sealed Lead Acid Maintenance Free Batteries, Nickel Cadmium Batteries, Gel Batteries
Battery Numbers 56 (±28) blocks external
GENERAL
Operating Temperature 0 - 40˚C
Operating Humidity 90% (non-condensed)
Acoustic Noise ‹57 dB @ 1 metre
Protection Degree IP20 (other on request)
Management Software Included
Dimensions (mm) WxDxH 400 x 815 x 1040 515 x 855 x 1440 825 x 855 x 1770 1250 x 1055 x 1900
Net Weight (kg) 187 244 270 393 457 536 539 595 647 910.5 1150 1283
Comms. Adaptors SNMP, MODBUS, RS485, Remote Panel, Bacnet

*Depending on power and input/output conditions
