BPC PowerCentre is an intelligent, clean, and modular static generator system integrating Lithium Ferro Phosphate (LFP) batteries, bidirectional DC / AC converters, Solar Converters, Static switch, and Power management systems.
Power Centre can be used to directly connect to the grid power supply, an off-grid power supply or as an off grid uninterrupted power supply.
The system can be developed to access renewable energy, power grid, or diesel generator as well as configuration and scientific utilisation to provide users with green, environmental protection, noise free, high reliability, and high security power services.

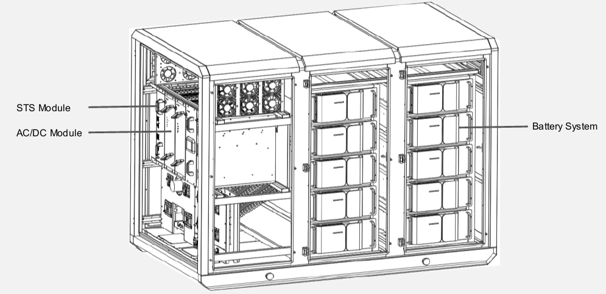

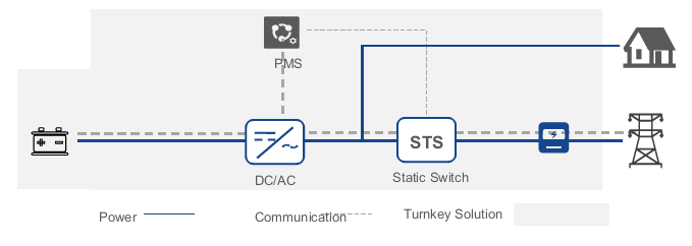

The PowerCentre LSG system is a true modular design combining: Lithium Ferro Phosphate (LFP) battery, DC/AC Bi-directional Converter, static transfer Switch (STS) and Power Management System (PMS) to provide all in one storage outdoor generator.
In normal operation the STS is in a closed state with the mains feeding the load and charging the LFP battery. When the mains power is interrupted the static switch is immediately disconnected (within 10ms) and the battery is discharged into the load. When the power returns the STS closes and the battery is recharged.

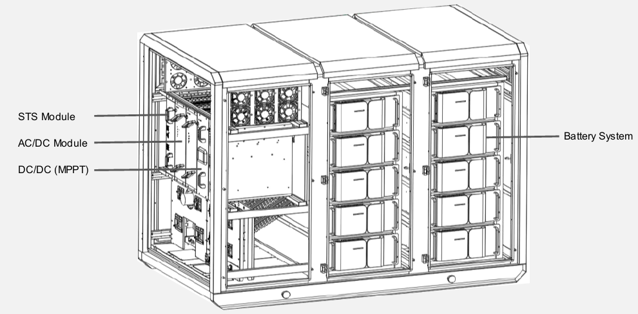

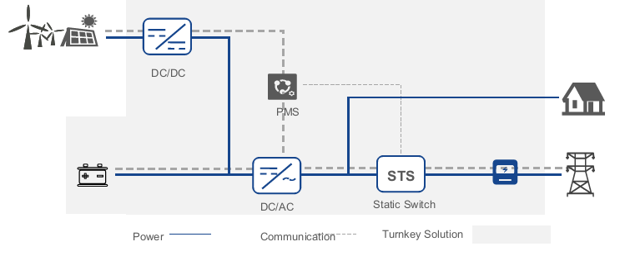

The PowerCentre LSSG system is a true modular design combining: Lithium Ferro Phosphate (LFP) battery, DC/AC Bi-directional Converter, DC/DC Converter, static transfer Switch (STS) and Power Management System (PMS) to provide all in one storage outdoor generator with direct Solar integration.
In normal operation the STS is in a closed state with the mains and solar feeding the load and charging the LFP battery. When the mains power is interrupted the static switch is immediately disconnected (within 10ms) and the battery and solar is discharged into the load. When the power returns the STS closes and the battery is recharged.
- Integrated BMS, DC, AC multi-layer protection
- Maximum safety performance design
- No air conditioning resulting in high energy efficiency
- Integrated system with ease of maintenance and capacity expansion
- Intelligent multi-energy management with easy access to multiple energy sources
- Remote monitoring and equipment management with remote troubleshooting and data analysis

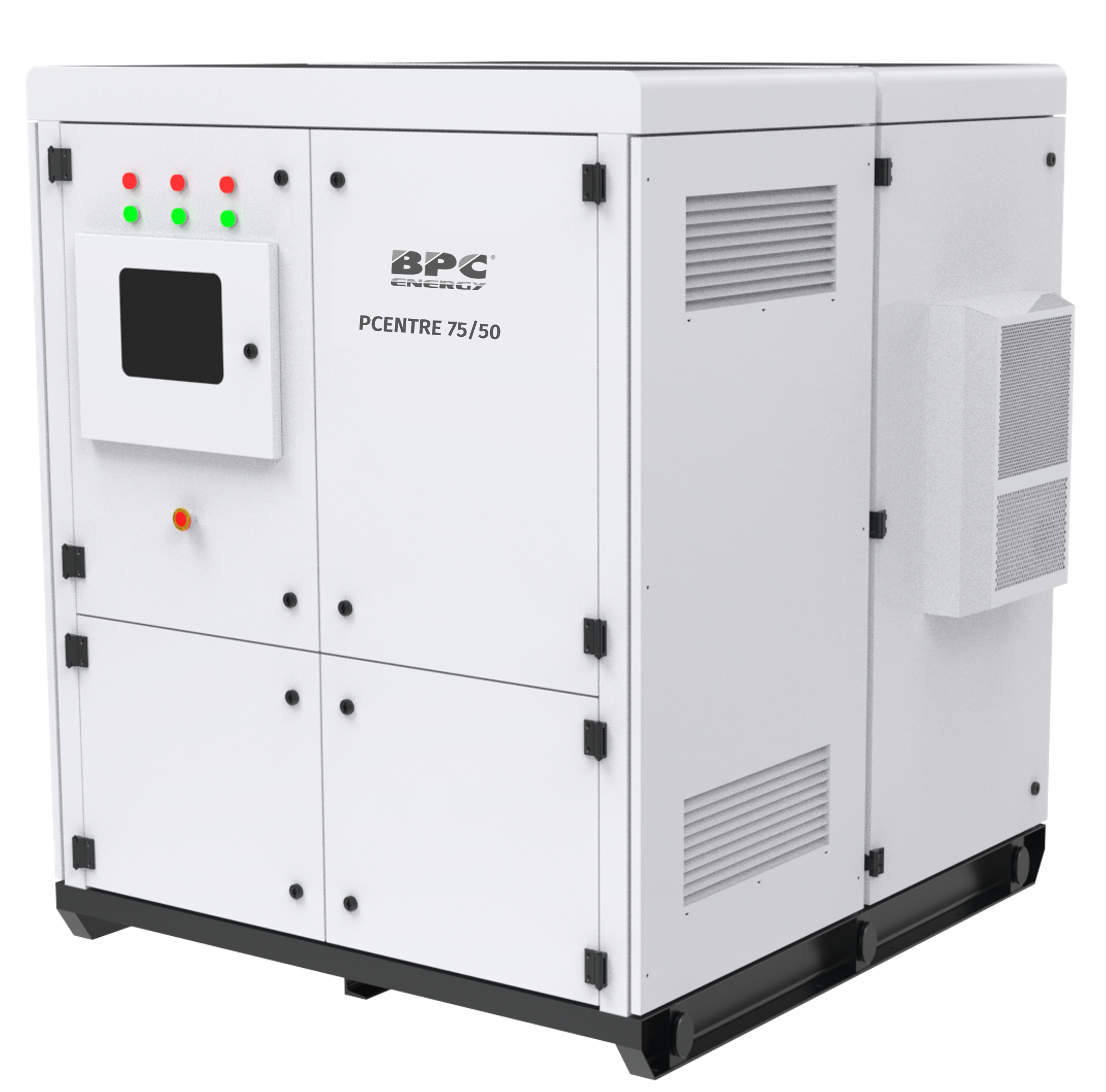

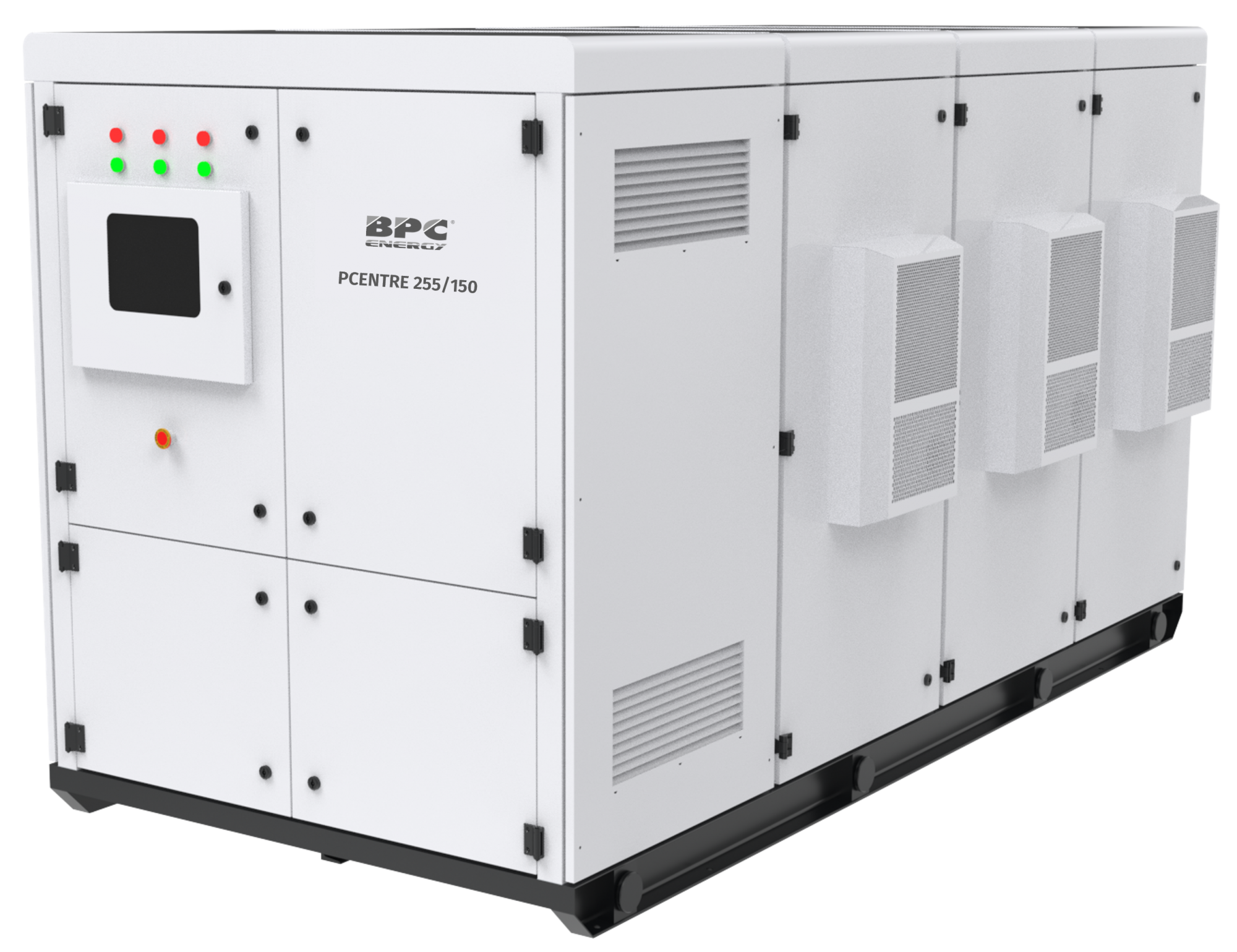

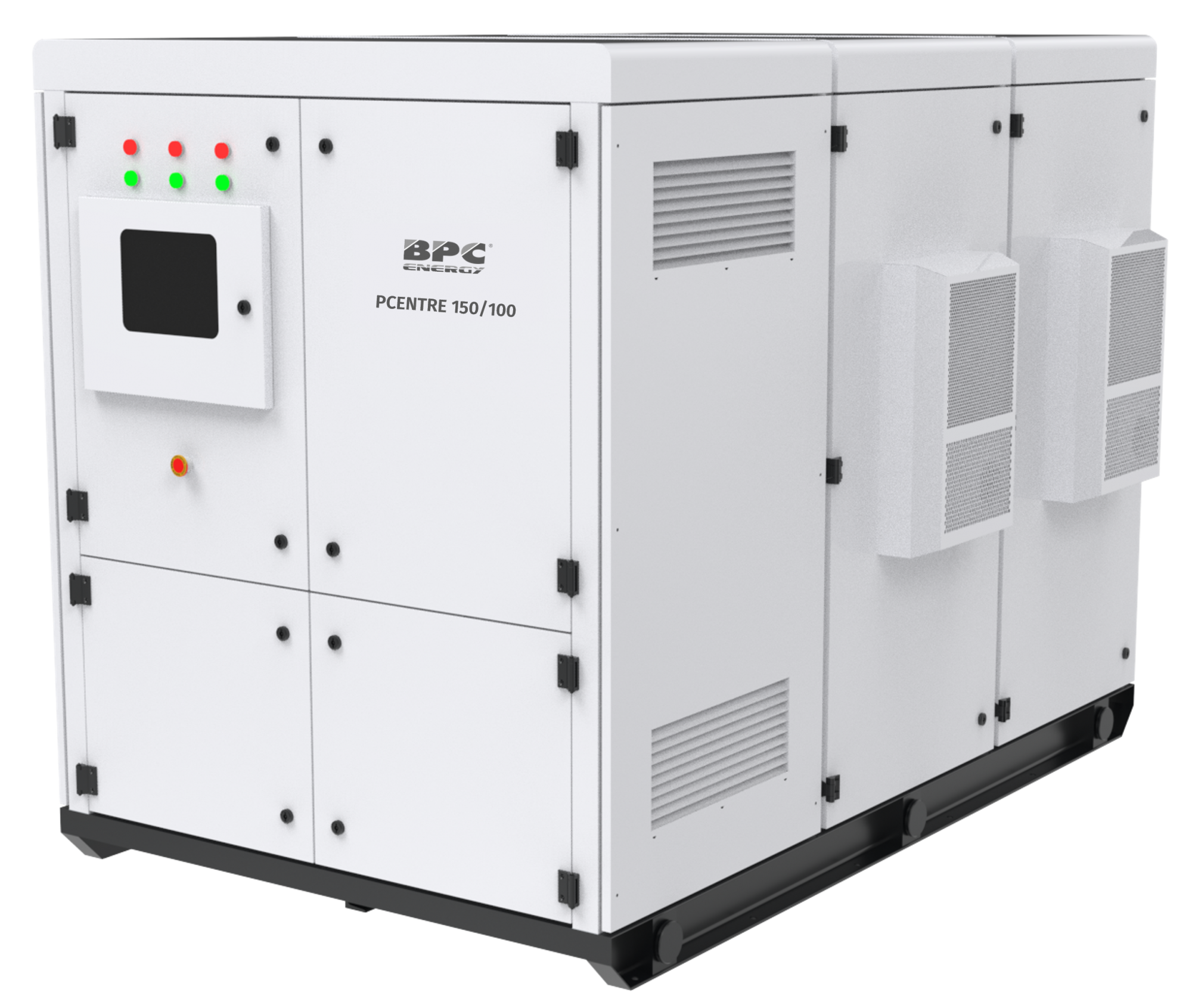

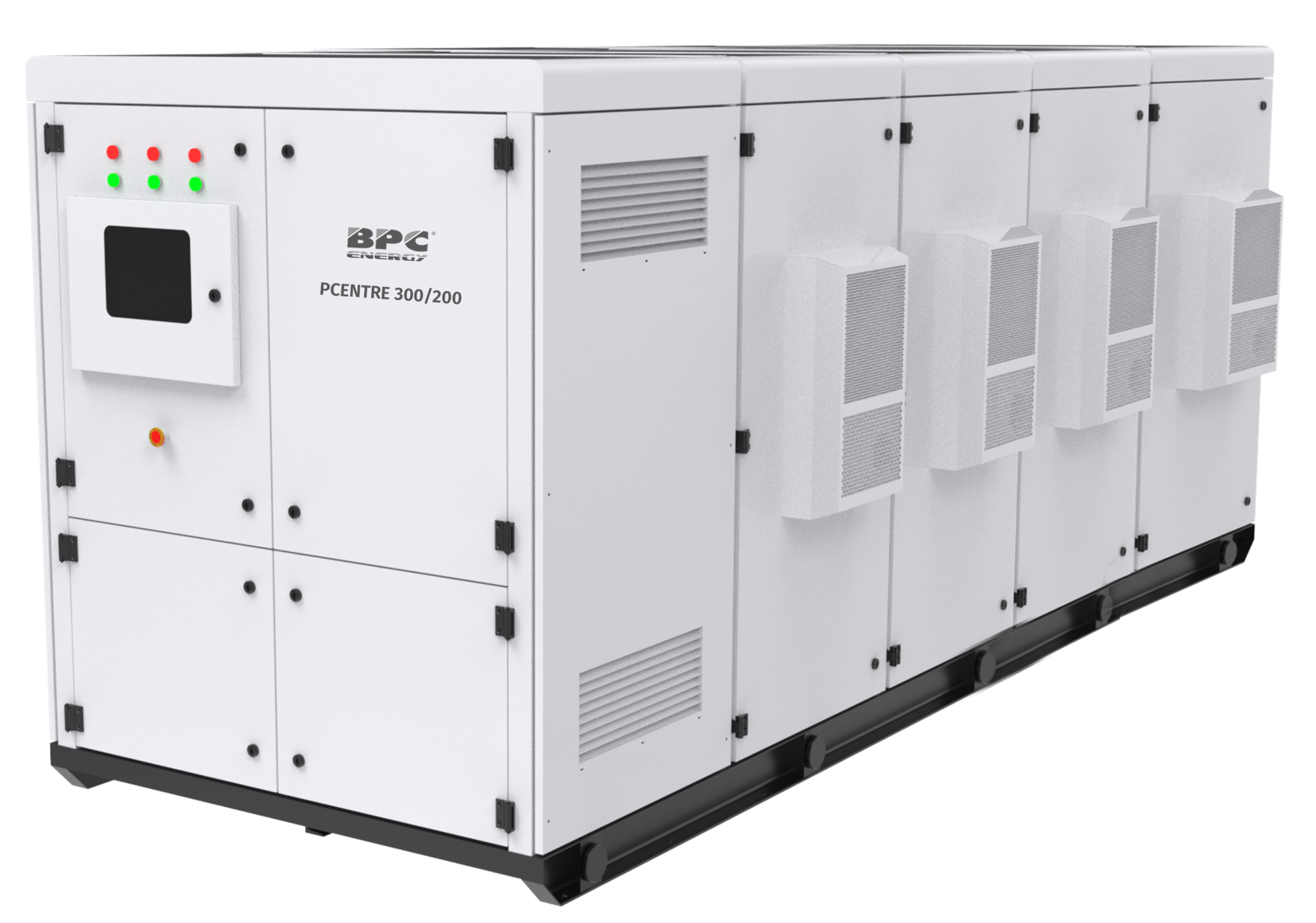

| MODEL | PCENTRE 75/50 | PCENTRE 150/100 | PCENTRE 225/150 | PCENTRE 30/200 |
| Power Rating (kW) | 50 | 100 | 150 | 200 |
| AC PARAMETERS | ||||
| Nominal Voltage | 3W+N+PE, 400 | |||
| Grid Connection Range | Voltage -15% + 10% / Frequency +/- 2Hz | |||
| Frequency Range | 50 Hz | |||
| Overload Capacity | 105% for 10min 120% for 1 min | |||
| THDi | <3% (Linear Load) | |||
| Power Factor (Grid Connected) | >0.99 | |||
| DC Component | <0.5%In | |||
| Maximum Efficiency | 95% | |||
| SYSTEM PARAMETERS | ||||
| DC Switch | Included | |||
| AC Switch | Included | |||
| Grid Monitoring | Included | |||
| ON/OFF Grid Switching | STS Included | |||
| Isolation Transformer | Not Included | |||
| STS Transfer Time | 10ms | |||
| Surge Protection | DC / AC 2nd Level | |||
| BATTERY | ||||
| Battery Type | Lithium Ferro Phosphate (LFP) | |||
| Module Energy (kW) | 15.36 | |||
| Module Quantity | 5 | 10 | 15 | 20 |
| Total Power (kWh) | 76.8 | 153.6 | 230.4 | 307.2 |
| Max. Continuous Charge | 1C | |||
| Max. Continuous Discharge | 2C | |||
| Runtime (hr) | 1.5 (Full Load) | |||
| Cycle Life | @25˚C and 100% Depth of Discharge and 80% End of Life. Expectations are ≥2500 | |||
| MODEL | PCENTRE LSSG 75/50 | PCENTRE LSSG 150/100 | PCENTRE LSSG 225/150 | PCENTRE LSSG 300/150 |
| Power Rating (kW) | 50 | 100 | 150 | 150 |
| DC/DC CONVERTER - LSSG ONLY | ||||
| Voltage Range | DC220V – DC900V | |||
| Full Load Voltage Range | DC350V – DC900V | |||
| Rated Power | 50kW | 50 - 100kW | 50 - 100kW | 50 - 100kW |
| MPPT QTY | 1 | 1-2 | 1-2 | 1-2 |
| Voltage Stabilisation Accuracy | <1% | |||
| GENERAL | ||||
| Operating Temperature | Normally -20˚C to 55˚C (>45˚C derating is necessary) | |||
| Operating Humidity | 0 - 95% (non-condensed) | |||
| Management Software | Included | |||
| Display | Touch Screen | |||
| Communication | RS485, CAN, LAN | |||
| Cooling & Heating | Intelligent fan air cooling (anti-condensation option available) | |||
| Acoustic Noise | ≤70 dB @ 1 metre | |||
| Air Conditioning | Optional | |||
| Protection | Outdoor IP54 | |||
| Dimensions (WxDxH) | 1300x1500x1700 | 1300x2270x1700 | 1300x3020x1700 | 1300x3830x1700 |
| Weight (kg) | 1060 | 1780 | 2470 | 3170 |
