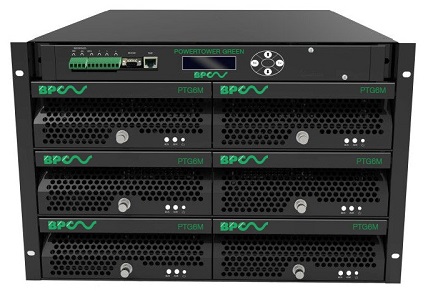

PowerTower Green RIT06 UPS

PowerTower Green RIT06

Rack Independent Online Double Conversion UPS

6kVA - 36kVA

The PowerTower Green RIT06 series is a rack-independent modular UPS of low and medium power developed by BPC.

With a flexible structure, it can be embedded into any standard 19 inch cabinet and can be configured to operate in any requirement.

Ranging from 6-36kVA using 6kVA modules in a functional rack-independent solution, the PowerTower Green RIT06 Series is ideal for the space-conscious enterprise networking manager.

Download brochure

Features

  • Rack Independent
  • Modular Construction Design
  • Hot Swappable
  • Multiple User Options
  • N+X module level redundancy UPS system
  • 1/1 and 3/3 configuration via display
  • Multi-level decentralised control technology and master-slave synchronisation in sequence control eliminating system failure bottleneck
  • Each module equally shares the input and output current automatically
  • All UPS modules share the batteries
  • Battery discharge management
  • Auto-transfer between floating and equal charging
  • Temperature Compensation
  • C/S-Orientated Architecture Software available to monitor multiple UPS up to 600 sets
  • B/S-Orientated Architecture available to check via internet browser
  • Multiple user options: RS232, RS485, dry contacts, TCP/IP adaptor for local and remote communication
  • Optional input/output transformer
  • Optional battery IPDS (Intelligent Power Distribution System)
MODEL PTGRIT 12/6 PTGRIT 24/6 PTGRIT 36/6
Maximum Power kVA 12kVA 24kVA 36kVA
Compatible Power Module PTG6M
INPUT
Nominal Voltage 380V / 220V +25% (1Ph + N  + E)

380V / 220V +25%

400V / 230V +25%

415V / 240V +25%

(1Ph + N + E) or (3Ph + N + E)

Frequency Range 50Hz +10%, 60Hz +10%
Power Factor >0.99
OUTPUT
Nominal Voltage 220, 230, 240 Vac (1PH + N + E)

380V / 220 Vac

400V / 230 Vac

415V / 240 Vac

(1Ph + N + E) or (3Ph + N + E)

AC Voltage Regulation +1%
Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion (Linear Load) <1% THD
Transfer Time  Zero
EFFICIENCY
AC Mode >95%
Battery Mode >98%
BATTERY
Rated DC Input Voltage + 240Vdc
Charging Ability Within 10 hours (2 hours backup)
GENERAL
Display LCD/LED Screen
Communication RS232, RS485, 2 dry contact, TPC/IP adaptor
Ambient Temperature -25°C ~ +60°C
Operating Temperature -5°C ~ +40°C
Operating Humidity <95% (non-condensed)
Dimensions (mm) WxDxH 480 x 600 x 133 (3U) 480 x 600 x 222 (5U) 480 x 600 x 311 (7U)
Net Weight (kgs) 12 16 20
MODEL - POWER MODULE PTG6M
Capacity kVA/kW 6kVA/5.4kW
Input/Output Mode 1/1 and 3/3 (Ph + N + E)
Input PF >0.99
THDI >3%
Overload Ability 125% for 10 min, 150% for 1 min
Max. Charging Power 1.5kW
Max. Heat Dissipation 338W
Dimensions (mm) WxDxH 219 x 487 x 83
Net Weight (kgs) 7.5
