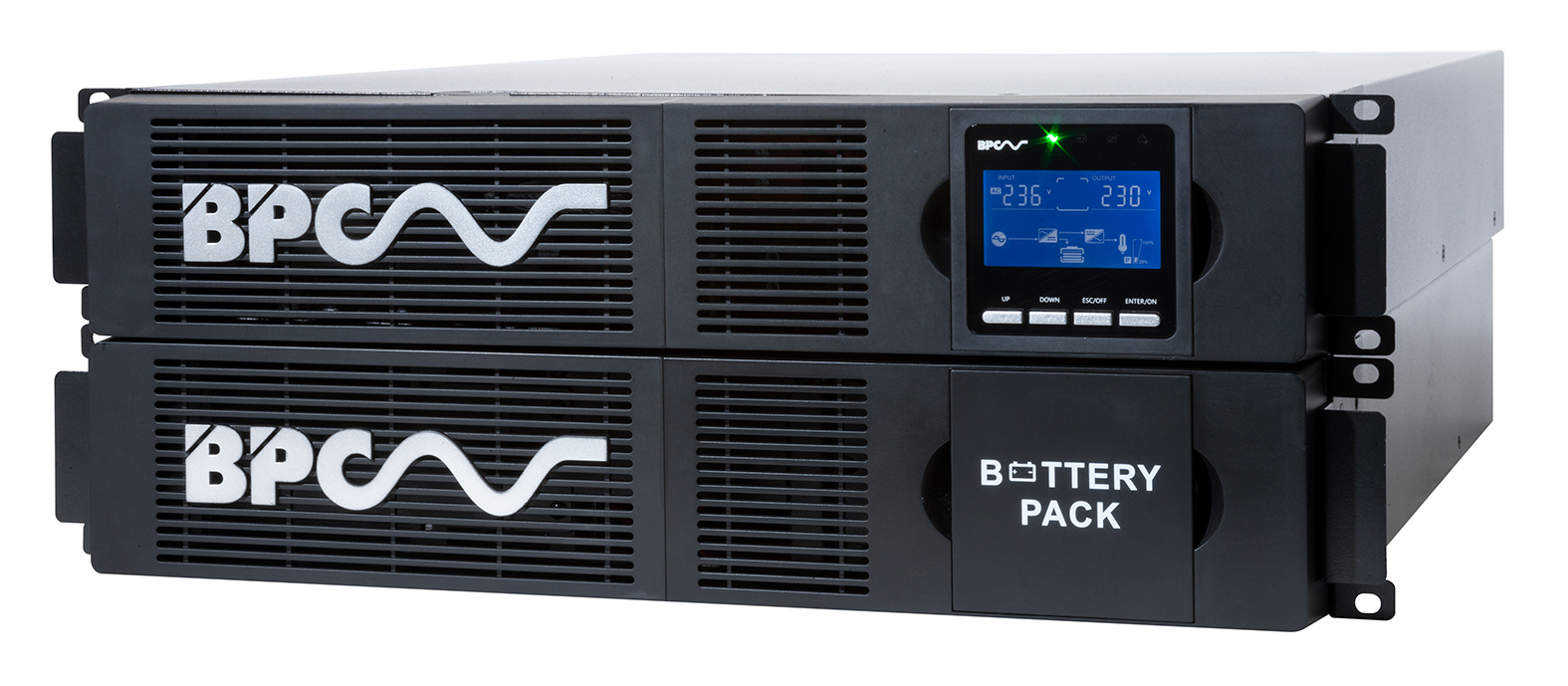

RACK/ TOWER CONFIGURATION

The PowerGem Plus RT range is extremely versatile and designed to have the flexibility to use as a floor standing tower type UPS or to be integrated into the client's 19” rack cabinet. The enhanced programmable LCD display can be manually positioned to suit both modes of operation by simply removing and rotating the display panel.

UNITY POWER FACTOR

The PowerGem Plus RT range adopts DSP and highly efficient electronic IGBT inverter technology providing one of the highest power density ratios in the UPS industry. Advanced inverter circuitry delivers unity power factor maximising power output.

ADVANCED FUNCTIONAL LCD DISPLAY

The PowerGem Plus RT DSP controlled UPS provides an intelligent high-density system suitable for powering a wide range of devices both simply and accurately. A precise backlit comprehensive LCD display with schematic operation status of the UPS, LED indicators and function keys allowing all the key parameters, alarms and indications to be shown.

WIDE INPUT VOLTAGE

Part of the unique design of the PowerGem Plus RT is to improve the performance in extreme site conditions with a wide input voltage window, ranging from 110 volts to 300 volts, without the need for the system to transfer into Battery Mode.

COMMUNICATION INTERFACE

This feature will allow either the USB or RS232 communication port to work with an SNMP simultaneously. The internal slot is provided for remote control and monitoring agents like SNMP or relay cards.

LOW NOISE LEVEL

More often the PowerGem Plus RT range will be installed in an office workspace and the environment will be an important factor in the design. Therefore, by using modern high frequency technology the noise dissipation is reduced to less than 50dBA for smaller units.

ENERGY DENSITY

BPC LFP batteries have high energy density which is equivalent to one third of valve regulated lead acid batteries.

HIGH AMBIENT TEMPERATURES

BPC LFP cells have a better temperature coefficient of resistance and can resist thermal runaway unlike VRLA products which have problems with high temperature and over-charging. LFP cells have less heat dissipation and no gas emissions, so they can easily operate in sealed cabinets without the need for air conditioning.

HIGHER CYCLE LIFE

BPC LFP battery options have the capability to perform numerous deep discharge cycles which would normally damage or create permanent failure to other types of batteries. Under normal circumstances, this battery can be considered to achieve 10 times better Cycling performance than conventional lead acid batteries.

LONGER LIFE EXPECTANCY

Each BPC LFP cell is fully protected by a sophisticated specially designed management system that constantly monitors to ensure the battery is always optimized for best performance and longevity.

ARDUOUS APPLICATIONS AND ULTRA RELIABILITY

LFP technology is used on the International Space Station, Boeing 787 Dreamliner's, and the growing industrial standards for Electric Vehicles, Utility Scale standby and power back-up in general. The optimal design for these applications require ultra reliability, high energy density, unparalleled cycling ability and long life.

SAFETY

BPC LFP batteries are intrinsically safer because they are fully protected by a sophisticated BMS system and the natural use of synthetic materials, excellent thermal and chemical stability improves the overall battery safety. All BPC LFP battery products are UN subsection 38.3 certified.

• True online double conversion
• Digital Signal Processor (DSP) technology
• Wide input voltage (110V-300V)
• Tower or rackmount convertible design
• Unity output power factor
• Intelligent self-diagnostics
• Pure Sinewave output
• Multiple communication ports
• Emergency Power Off (EPO) function
• ECO mode operation for energy saving
• Optional dust filter for hazardous environments

ENVIRONMENTALLY FRIENDLY ENERGY SAVING

The intelligent microprocessor-based control system allows for the very low power consumption offered by the interactive ECO mode which provides efficiencies as high as 97%. PowerGem Plus RT switches instantaneously to online double conversion operation automatically when the mains become unstable and fluctuate outside the normal frequency and voltage parameters.
