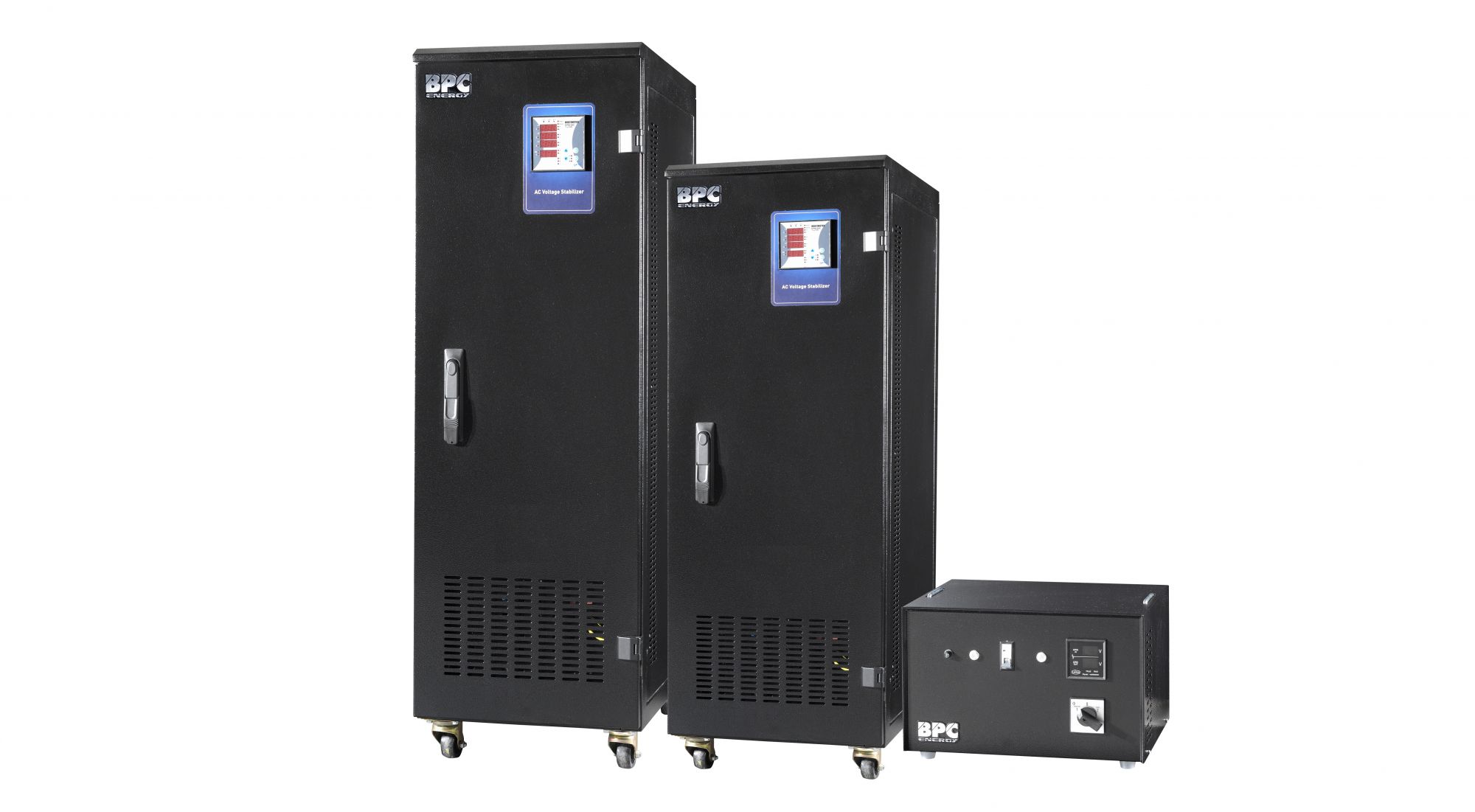

The PowerMaster Automatic Voltage Regulator protects voltage fluctuations from the incoming supply affecting your load and is designed to maintain constant set voltage at all times.
The Power Master range includes single and three phase models and can be supplied with phase or phase & neutral and fan or oil filled cooling.
The output voltage can be monitored via the front panel analogue voltmeter and certain models are provided with high and low voltage LED indicator alarms.
The PowerMaster range includes single and three phase models and can be supplied with phase or phase & neutral options.
Wide input voltage range models are available and the standard output voltage range of these may be altered upon request.
| MODEL | AVR105 | AVR107 | AVR110 | AVR115 | AVR120 | AVR125 | AVR130 | AVR140 | AVR150 |
| Power kVA | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| REGULATOR INPUT | |||||||||
| Input Voltage Settings | 110 – 240 / 160 – 260 / 180 – 260 VAC | ||||||||
| Input Voltage Range | 90 – 285 VAC | ||||||||
| Operation Frequency | 47 - 65 Hz | ||||||||
| Line Input Protection | Overcurrent, Low and High voltage protection | ||||||||
| REGULATOR OUTPUT | |||||||||
| Output Voltage | 220 / 230 / 240 VAC RMS + 1% | ||||||||
| Overloading | 10 Sec. 200% Load | ||||||||
| Correction Speed | ~ 90 Volt / Sec. | ||||||||
| Correction Range | ~ 90 Volt / Sec. (160 VAC – 260 VAC) | ||||||||
| Output Protection | Protects load by opening the circuit when overburden, short circuit occurs. (Optional) | ||||||||
| GENERAL | |||||||||
| Working Principle | Servo Motor, Microprocessor Controlled, Full Automatic | ||||||||
| Cooling | Smart Fan System | ||||||||
| Measured Value Monitor | RMS Panel Voltmeter (74 x 74mm) output voltage and line voltage monitorisation | ||||||||
| Total Efficiency | ˃ 96% | ||||||||
| Mechanical Bypass | “Manually Controlled Line – PAKO Switch Selects Voltage Regulator” Switch Turn On / Off | ||||||||
| Protection Level | IP 20 | ||||||||
| ENVIRONMENTAL | |||||||||
| Working Temperature | - 10˚C / 50˚C | ||||||||
| Storage Temperature | -25˚C / 60˚C | ||||||||
| Relative Humidity | ˂ 90%, DIN (40040) | ||||||||
| Working Altitude | ˂ 300m. | ||||||||
| Acoustic Level | ˂ 50 dB (1m²) | ||||||||
| Standards | CE / ISO 9001 | ||||||||
| DIMENSIONS | |||||||||
| Dimensions (mm) W x D x H | 55 x 37 x 30 | 60 x 42 x 32 | 50 x 50 x 75 | 50 x 60 x 75 | |||||
| Weight (Kg) | 30 | 34 | 47 | 55 | 95 | 110 | 130 | 155 | 180 |
| MODEL | AVR310 | AVR315 | AVR322 | AVR330 | AVR345 | AVR360 | AVR375 | AVR3100 | AVR3120 | AVR3150 |
| Power kVA | 10 | 15 | 22.5 | 30 | 45 | 60 | 75 | 100 | 120 | 150 |
| REGULATOR INPUT | ||||||||||
| Input Voltage Settings | 190 - 485 / 275 - 450 / 310 - 450 VAC | |||||||||
| Input Voltage Range | 155 - 490 VAC | |||||||||
| Operation Frequency | 47 - 65 Hz | |||||||||
| Line Input Protection | Overcurrent, Low and High voltage protection | |||||||||
| REGULATOR OUTPUT | ||||||||||
| Output Voltage | 380 / 400 / 415 VAC RMS ± 1 % | |||||||||
| Overloading | 10 Sec. 200% Load | |||||||||
| Correction Speed | ~ 90 Volt / Sec. | |||||||||
| Correction Range | ~ 90 Volt / Sec. (160 VAC – 250 VAC) | |||||||||
| Output Protection | Protects load by opening the circuit when overburden, short circuit occurs | |||||||||
| GENERAL | ||||||||||
| Working Principle | Servo Motor, Microprocessor Controlled, Full Automatic | |||||||||
| Cooling | Smart Fan System | |||||||||
| Measured Value Monitor | RMS Panel Voltmeter (74 x 74mm) output voltage and line voltage monitorisation | |||||||||
| Total Efficiency | ˃ 96% | |||||||||
| Mechanical Bypass | “Manually Controlled Line – PAKO Switch Selects Voltage Regulator” Switch Turn On / Off | |||||||||
| Protection Level | IP 20 | |||||||||
| ENVIRONMENTAL | ||||||||||
| Working Temperature | - 10˚C / 50˚C | |||||||||
| Storage Temperature | -25˚C / 60˚C | |||||||||
| Relative Humidity | ˂ 90%, DIN (40040) | |||||||||
| Working Altitude | ˂ 200m | |||||||||
| Acoustic Level | ˂ 50 dB (1m²) | |||||||||
| Standards | CE / ISO 9001 | |||||||||
| DIMENSIONS | ||||||||||
| Dimensions (mm) W x D x H | 40 x 63 x 110 | 40 x 63 x 119 | 88 x 60 x 140 | 93 x 65 x 165 | ||||||
| Weight (kg) | 95 | 105 | 125 | 145 | 165 | 260 | 280 | 310 | 400 | 425 |
| MODEL | AVR 3200 | AVR 3250 | AVR 3300 | AVR 3400 | AVR 3500 | AVR 3600 | AVR 3800 | AVR 31000 | AVR 31250 | AVR 31500 | AVR 31600 | AVR 32000 | AVR 32500 | AVR 33000 |
| Power kVA | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 | 1500 | 1600 | 2000 | 2500 | 3000 |
| REGULATOR INPUT | ||||||||||||||
| Input Voltage Settings | 190 - 485 / 275 - 450 / 310 - 450 VAC | |||||||||||||
| Input Voltage Range | 155 - 490 VAC | |||||||||||||
| Operation Frequency | 47 - 65 Hz | |||||||||||||
| Line Input Protection | Overcurrent, Low and High voltage protection | |||||||||||||
| REGULATOR OUTPUT | ||||||||||||||
| Output Voltage | 380 / 400 / 415 VAC RMS ± 1 % | |||||||||||||
| Overloading | 10 Sec. 200% Load | |||||||||||||
| Correction Speed | ~ 90 Volt / Sec | |||||||||||||
| Correction range | ~ 90 Volt / Sec. (160 VAC – 250 VAC) | |||||||||||||
| Output Protection | Protects load by opening the circuit when overburden, short circuit occurs | |||||||||||||
| GENERAL | ||||||||||||||
| Working Principle | Servo Motor, Microprocessor Controlled, Full Automatic | |||||||||||||
| Cooling | Smart Fan System | |||||||||||||
| Measured Value Monitor | RMS Panel Voltmeter (74 x 74mm) output voltage and line voltage monitorisation | |||||||||||||
| Total Efficiency | ˃ 97% | |||||||||||||
| Mechanical Bypass | “Manually Controlled Line – PAKO Switch Selects Voltage Regulator” Switch Turn On / Off | |||||||||||||
| Protection Level | IP 20 | |||||||||||||
| ENVIRONMENTAL | ||||||||||||||
| Working Temperature | - 10˚C / 50˚C | |||||||||||||
| Storage Temperature | -25˚C / 60˚C | |||||||||||||
| Relative Humidity | ˂ 90%, DIN (40040) | |||||||||||||
| Working Altitude | ˂ 3000m | |||||||||||||
| Acoustic Level | ˂ 50 dB (1m²) | |||||||||||||
| Standards | CE / ISO 9001 | |||||||||||||
| DIMENSIONS | ||||||||||||||
| Dimensions (mm) W x D x H | 180 x 120 x 122 | 60 x 117 x 170 | 180 x 120 x 152 | 210 x 120 x 185 | 210 x 200 x 185 | 210 x 260 x 185 | 240 x 260 x 195 | TBA | ||||||
| Weight (kg) | 1050 | 1100 | 1200 | 1650 | 2000 | 2100 | 2900 | 3450 | 3900 | 4300 | 4750 | 6000 | TBA | |
| MODEL | PM1005E | PM1010E | PM1015E | PM1020E | PM1035E |
| Power Rating VA/kVA | 0.5VA | 1kVA | 1.5kVA | 2kVA | 3.5kVA |
| REGULATOR INPUT | |||||
| Input Voltage Range | 130 – 260 Volt | ||||
| Operation Frequency | 47 – 65Hz | ||||
| Line Input Protection | Low & High Voltage Protection | ||||
| REGULATOR OUTPUT | |||||
| Output Voltage | 220 VAC RMS ± 5% (230 V or 240 V optional) | ||||
| Overloading | 10 seconds at 150% load | ||||
| Correction Speed | 500 Volts / second | ||||
| Output Protection | Overload and short circuit | ||||
| GENERAL | |||||
| Cooling | Smart Fan System | ||||
| Functional LCD Display | Input and Output voltages | ||||
| Total Efficiency | >96% | ||||
| Mechanical Bypass | Manual switch | ||||
| Protection Level | IP20 | ||||
| ENVIRONMENT | |||||
| Operation Temperature | -10˚C - 50˚C | ||||
| Storage Temperature | -25˚C - 60˚C | ||||
| Relative Humidity | <90%, DIN (40040) | ||||
| Operation Altitude | <2000m | ||||
| Acoustic Level | <50dB | ||||
| PHYSICAL | |||||
| Dimensions (mm) WxDxH | 170 x 90 x 300 | 300 x 210 x 370 | |||
| Net Weight (kgs) | 2.8 | 3.6 | 11 | 12.5 | |
