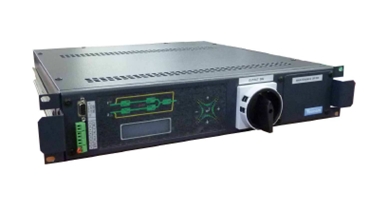

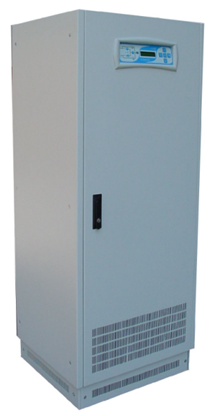

BPC Automatic Static Transfer Switches (STS) enable automatic or manual transfer between two AC power supply sources, ensuring a transfer time of less than 1/4 of a cycle.
Static Transfer Switches ensure the highest availability of the power supply to sensitive and critical applications. The installation of an STS ensures 2N architecture is achieved and allows loads with single feeds to always be supplied by the highest quality power.
The use of transfer switches and 2N architecture increases the maintainability of the switch panels and upstream equipment.
The use of an STS within an electrical distribution system provides a means of secure protection against any potential disruption of the power supply due to interruptions of the supply source or failure of distribution lines caused by environmental phenomena or human error.
The Static Transfer Switch provides a guaranteed means of switching between two alternative and independent power sources, thus ensuring a continued supply of power to any critical load.
The switching can either be AUTOMATIC, should the incoming supply fall outside the predefined window of operation (user-defined), or MANUAL, should an operator want to force switching between the two input supply sources from the mimic display panel or via a remote connection.
| MODEL | 2 POLE | 3 POLE | 4 POLE |
| Range | 32A / 63A / 120A | 50A / 100A / 150A / 200A / 250A / 300A / 400A / 600A / 800A | |
| Input Voltage (Ph-Ph) | 220 / 230 / 240 VAc (1Ph + N + PE) | 380 / 400 / 415 Vac (3Ph + N + PE) | |
| Input Voltage Range | 180 - 246 Vac (Line to Neutral) | ||
| Input Frequency | 50 / 60Hz | ||
| Transfer Type | ''Break Before Make' | ||
| Transfer Methods | Automatic / Manual / Remote | ||
| Transfer Control | Synchron | Adjustable display delay (non-synchron) | Zero current (non-synchron) |
| Transfer Time | <4ms for synchronous sources, <10ms for non-synchronous sources | ||
| Switching Type | 2 poles: 1 phase + neutral switching | 3 poles: 3 phase switching | 4 poles: 3 phase + neutral switching |
| Output Current Crest Factor | 3:1 | ||
| Admissable Overload | 0 - 100% continuous / 101 - 150% for 1 min / 151 - 200% for 10 sec / >200% for 250ms | ||
| LCD Panel and Mimic | Standard | ||
| Protections | Output overload and short circuit protection, over temperature protection, back feed protection, SCR fault protection | ||
| Communications | RS232 standard / RS485 optional | ||
| TCP/IP Connection | Optional | ||
| Dry Contacts (programmable relay outputs) | 3 | 4 | |
| Cooling | Forced Cooling (redundant fans) | ||
| Operating Temperature | 0 - 40°C | ||
| Storage Temperature | -10°C ~ +50°C | ||
| Relative Humidity | 90% max. (non-condensed) | ||
| Protection Degree | IP20 | ||
| Standards | EN62310-1, EN62310-2 | ||
