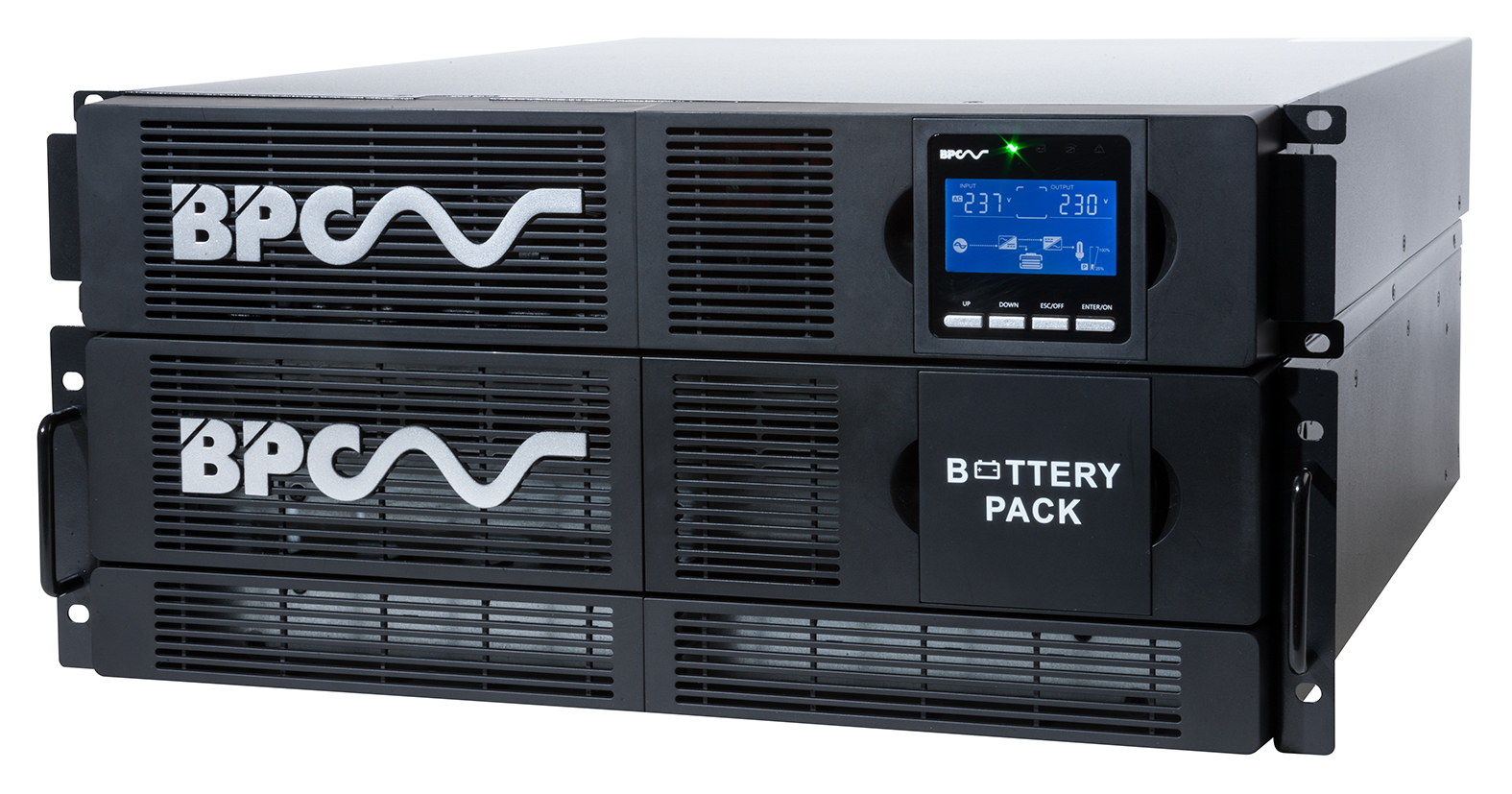

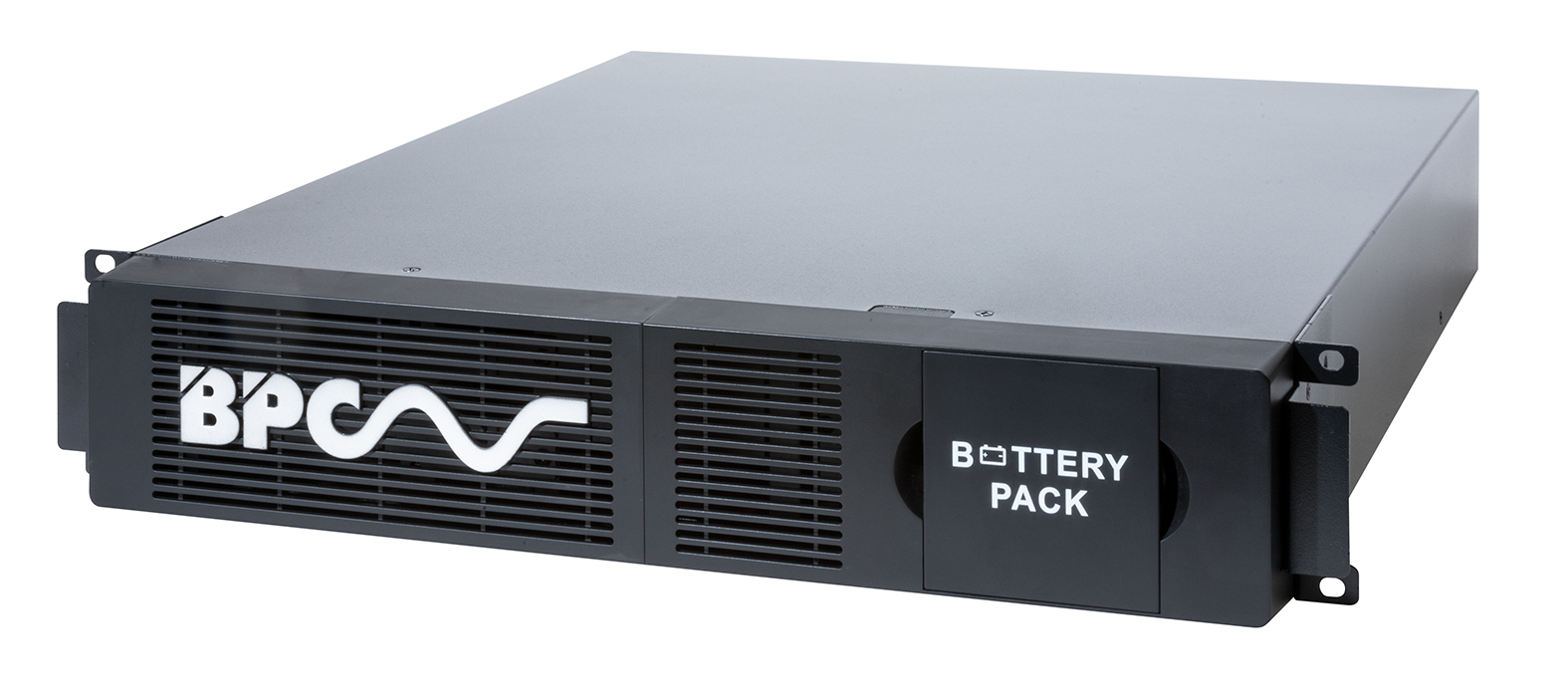

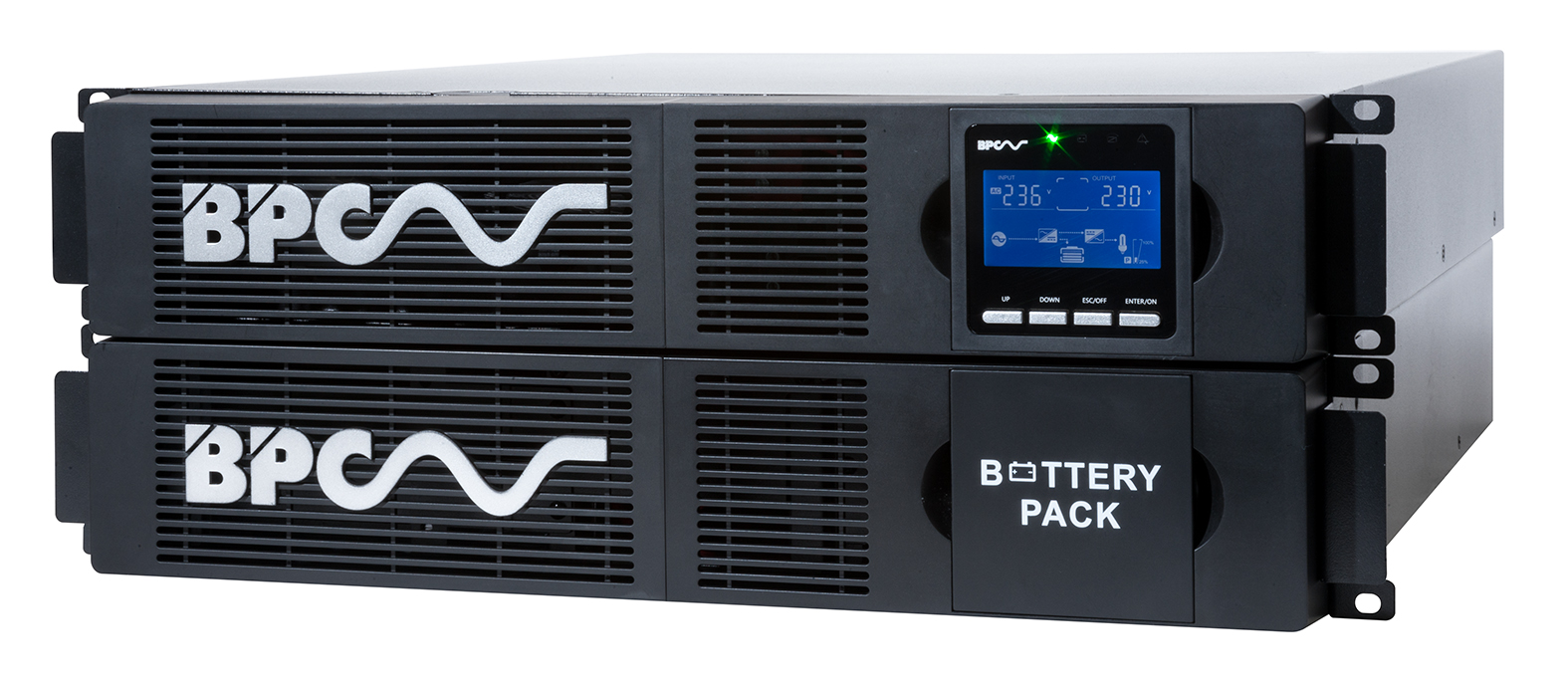

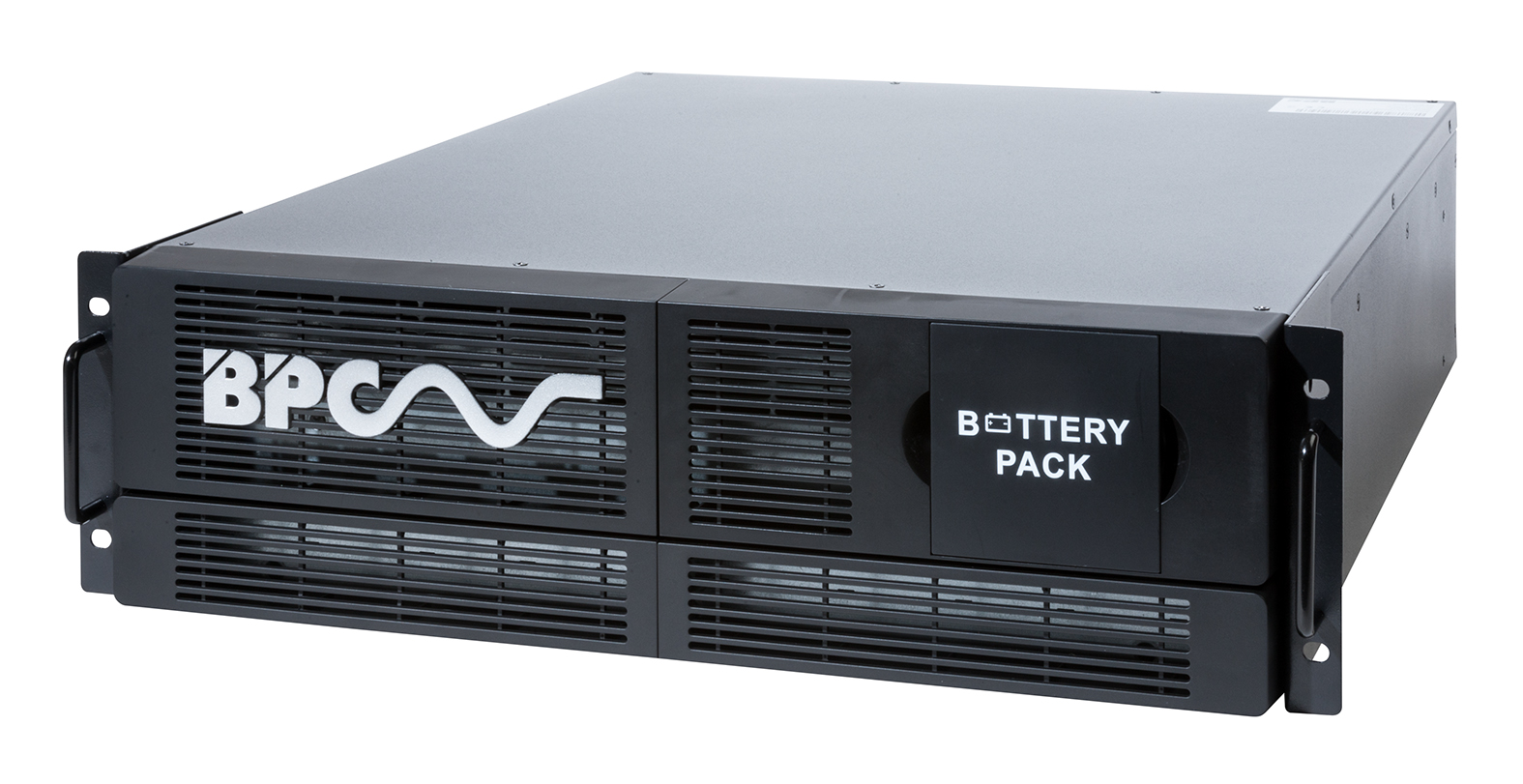

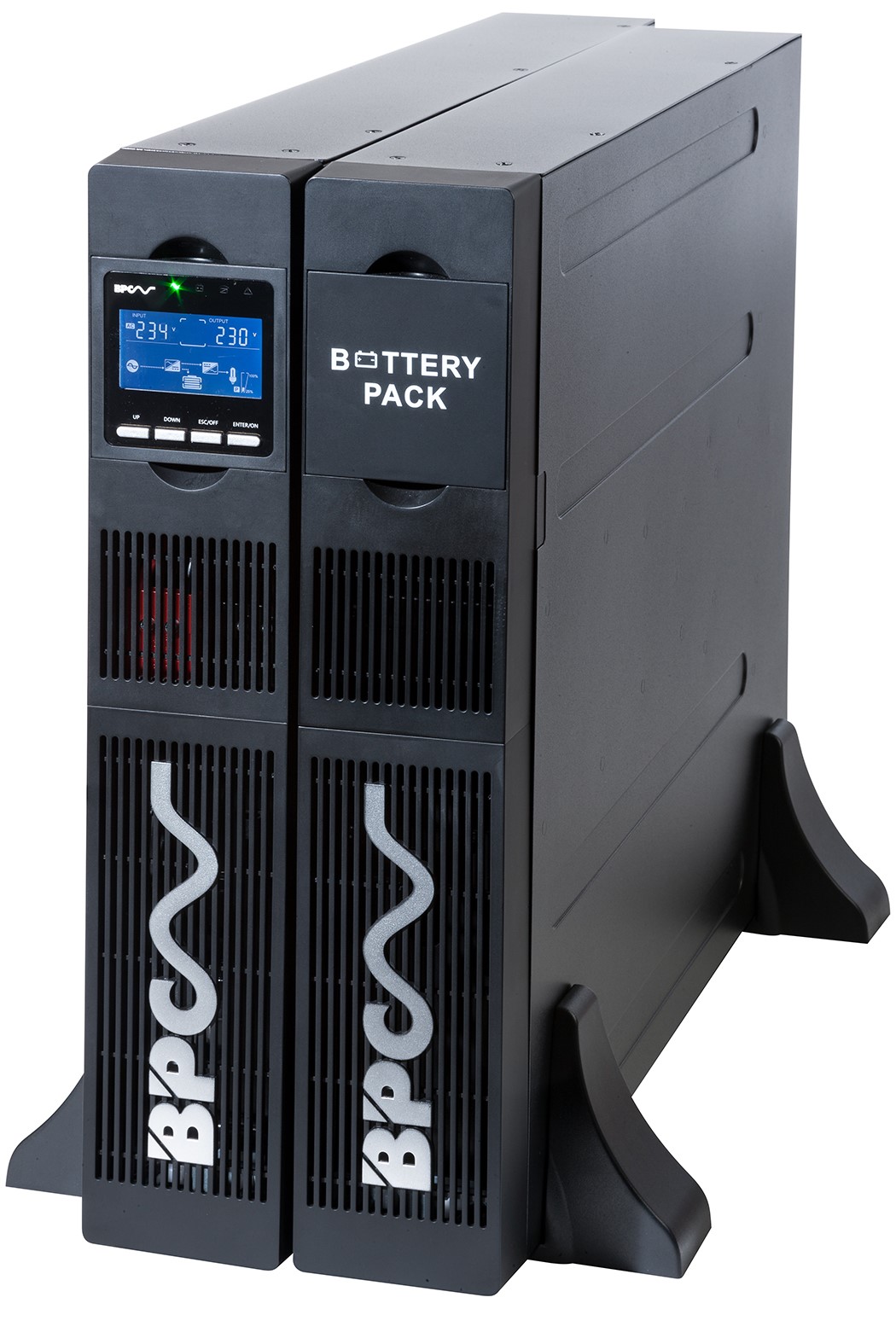

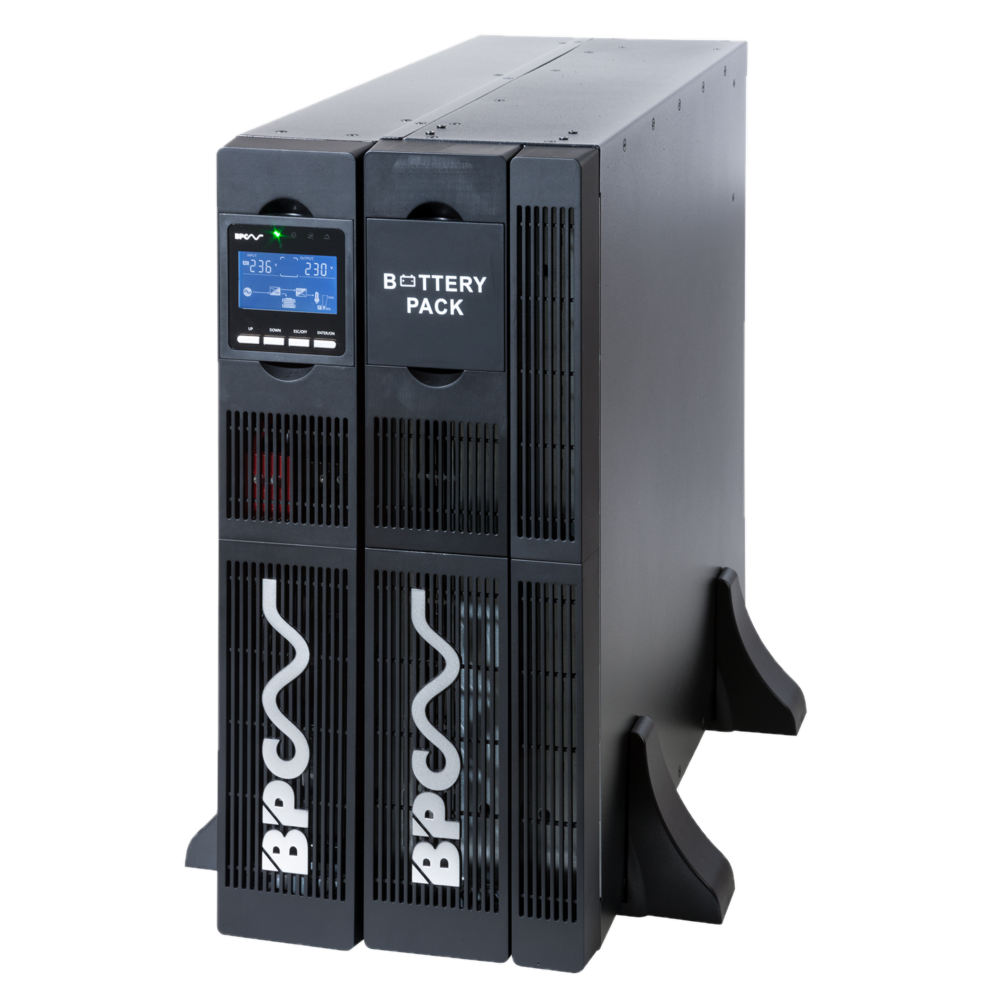

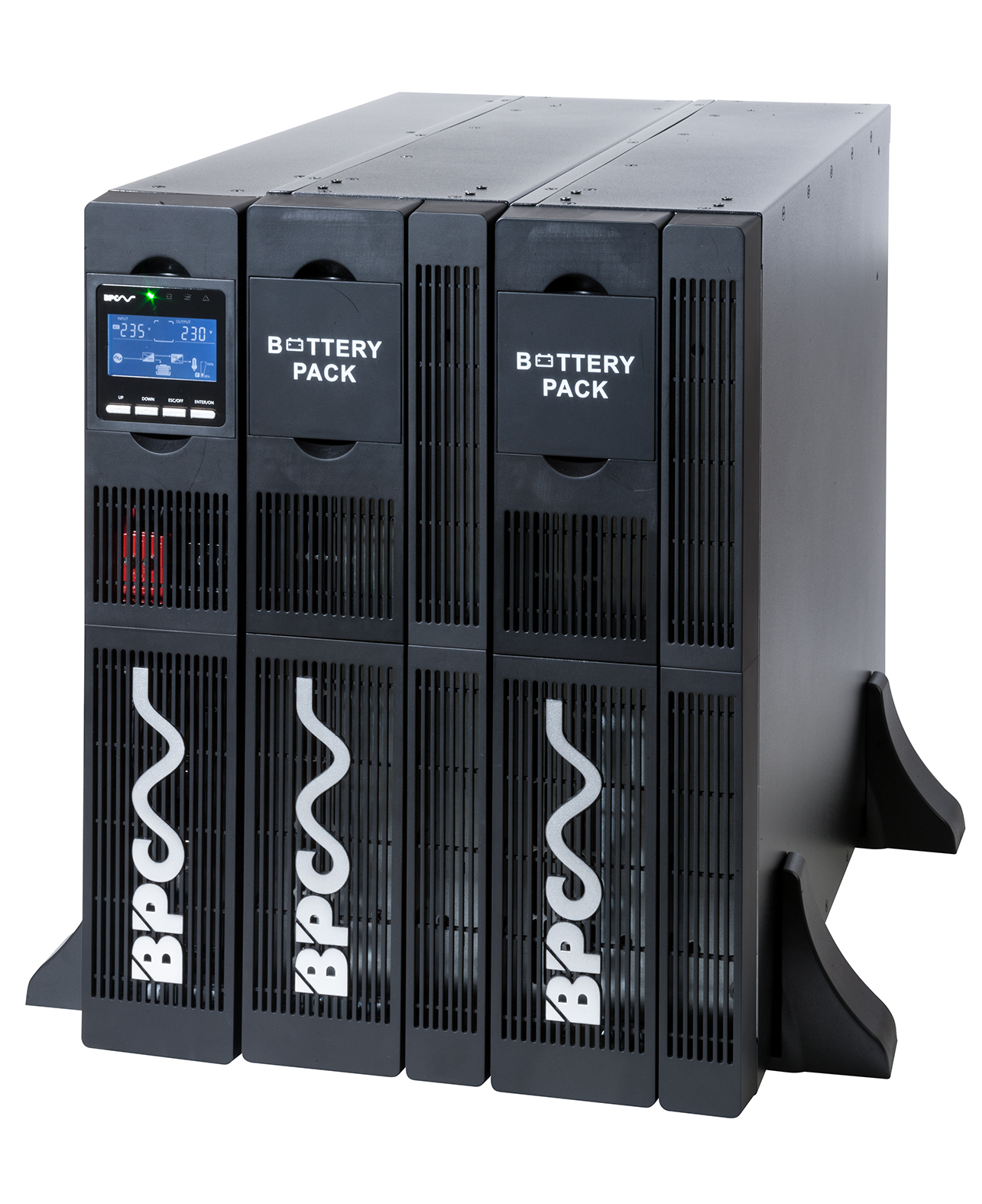

PowerGem Plus RT Matching Battery Cabinet Solution

UPS Battery Cabinet Solutions

The BPC BCRT matching battery cabinets are suitable for the PowerGem Plus RT is a unique range of UPS Systems that can be installed with the UPS system, whether on the floor, in tower form or in rackmount cabinet configurations powering a wide range of applications.

For mission critical applications requiring longer runtime of higher specification batteries, matching battery cabinets can be added to the PowerGem Plus RT UPS Ranges. These have been designed both technically and aesthetically to complement the UPS, forming a combined unit which can be easily located without need to special site considerations.

  • Rack/ Tower Convertible
  • Compact Design
  • Simple Connectivity
Download brochure

Features

  • Rack / Tower Convertible
  • Compact Design
  • Simple Connectivity
RANGE BCRT06N BCRT08N BCRT12N BCRT20N
Power Rating VA / Watts 1000VA / 1000W 2000VA / 2000W 3000VA / 3000W 6kVA / 6kW
Input
Nominal Voltage 200 / 208 / 220 / 230 / 240 VAC 220 / 230 / 240 VAC
Voltage Range 110 - 300 Vac (Load dependent) 120 - 276 Vac (Load dependent)
Frequency Range 40 - 70Hz 42 - 55Hz at 50Hz / 54 - 66Hz at 60Hz (auto sensing)
Power Factor >0.99 @ 100% load
Output
Nominal Voltage 200 / 208 / 220 / 230 / 240 Vac 220 / 230 / 240 Vac

AC Voltage Regulation

(Battery Mode)

+ 1%

Frequency Range

(Synchronised Range)

47 - 53Hz  or 57 - 63Hz 45 - 65Hz (auto select)

Frequency Range (Battery Mode)

50/60Hz + 0.1%Hz 50 / 60Hz + 0.1Hz
Crest Factor 3:1

Harmonic Distortion

(Linear Mode)

<3% THD
Transfer Time Zero
Wavefrom Pure Sinweave
Efficiency
AC Mode >88% >92% >92% >92.5%
ECO Mode >95% >97% >97% >97.3%
Battery Mode >86% >88% >90% >89%
Battery
Battery Type VRLA AGM Sealed Lead Acid Maintenance Free Batteries
Battery DC Voltage 24 or 36 Volts 48 Volts 72 Volts External matching battery cabinet - 192 / 216 / 240 Volts
Typical Recharge Time 4 hours recover to 90% capacity

Charging Current (max.)

Standard Models

1A 10A adjustable by LCD display

Charging Current (max.)

Long Runtime Models

12A adjusted by LCD display -
General
Operating Humidity 20 - 90% RH @ 0-40  (non-condensing)
Accoustic Noise Level <50 db="" at="" 1="" metre="" --50--=""> <55 db="" at="" 1metre="" --55--="">
Management Software Included

Standard Model Dimensions (mm)

W x D x H

438 x 325 x 88 (24vdc) / 438 x 460 x 88 (36vdc option) 438 x 460 x 88 438 x 600 x 88

438 x 725 x 88

BCRT20N009 Battery Cabinet = 438 x 585 x 133

Standard Model Net Weight

(kgs)

11.3 19.1 26.2

15

BCRT20N009 = 64

Long Runtime Model Dimensions (mm)

W x D x H

438 x 305 x 88 438 x 435 x 88 -

Long Runtime Model Net weight

(Kgs)

5.6 8.3 8.6 -

Related Products:

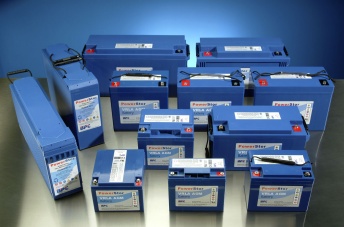

PowerStor Battery Range
