Medical IPS

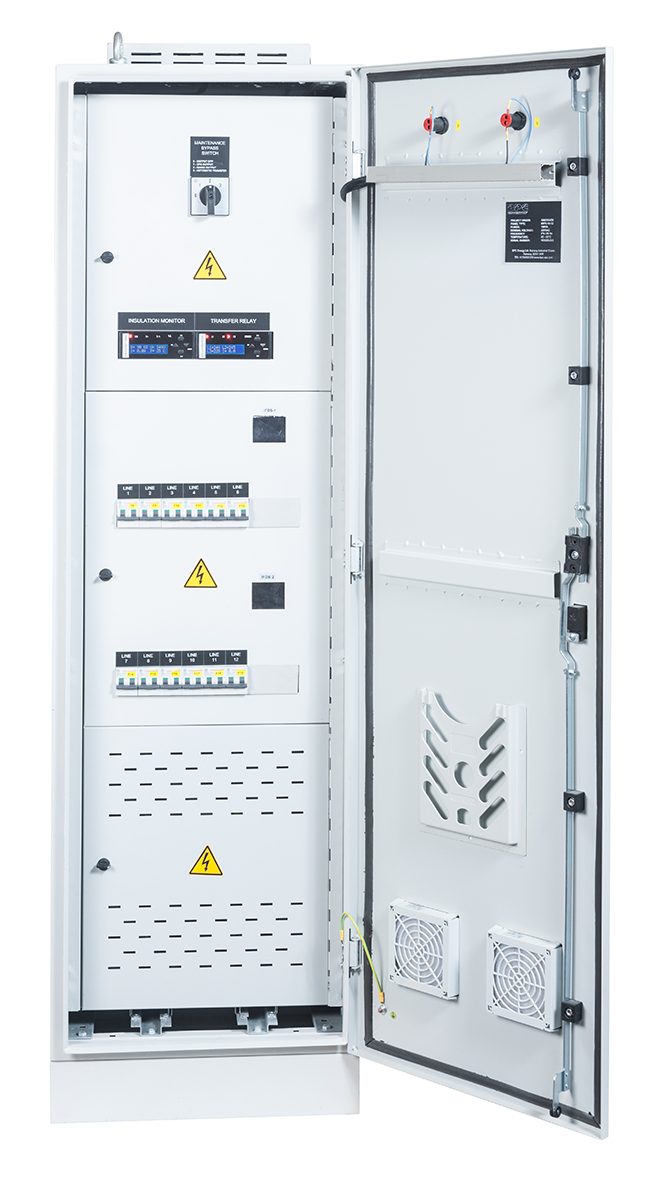

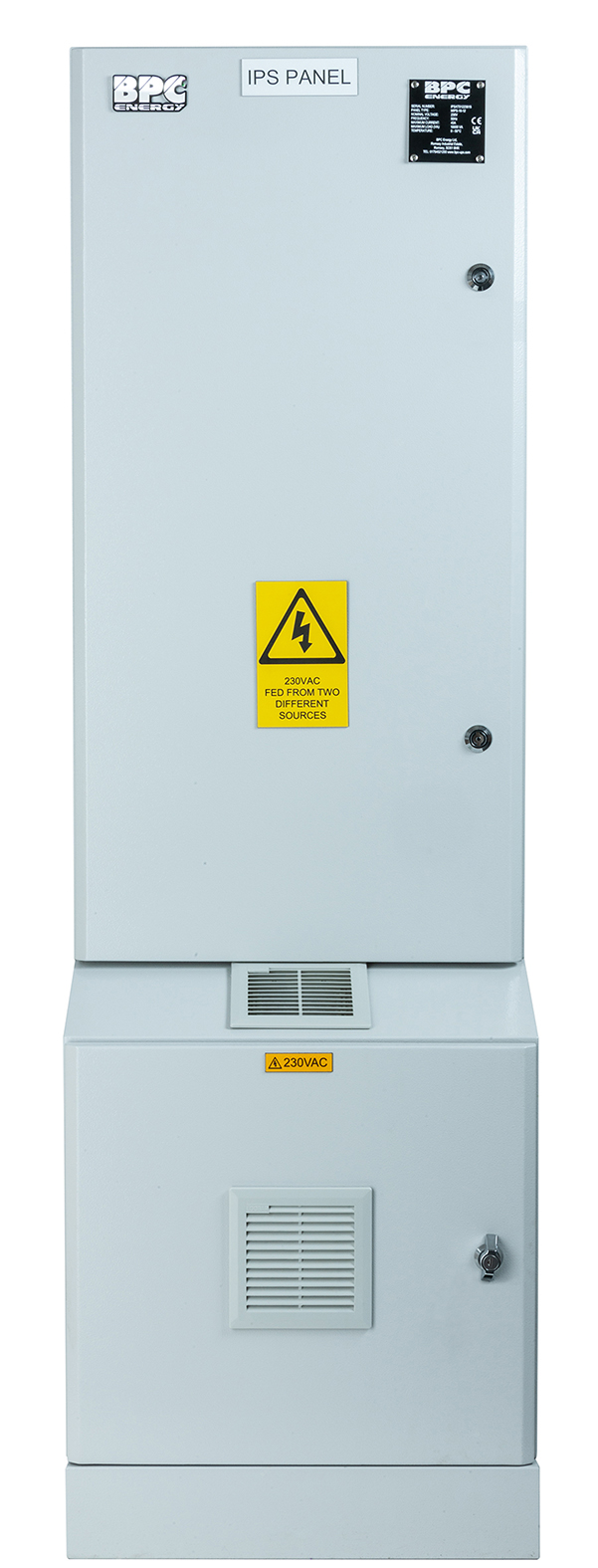

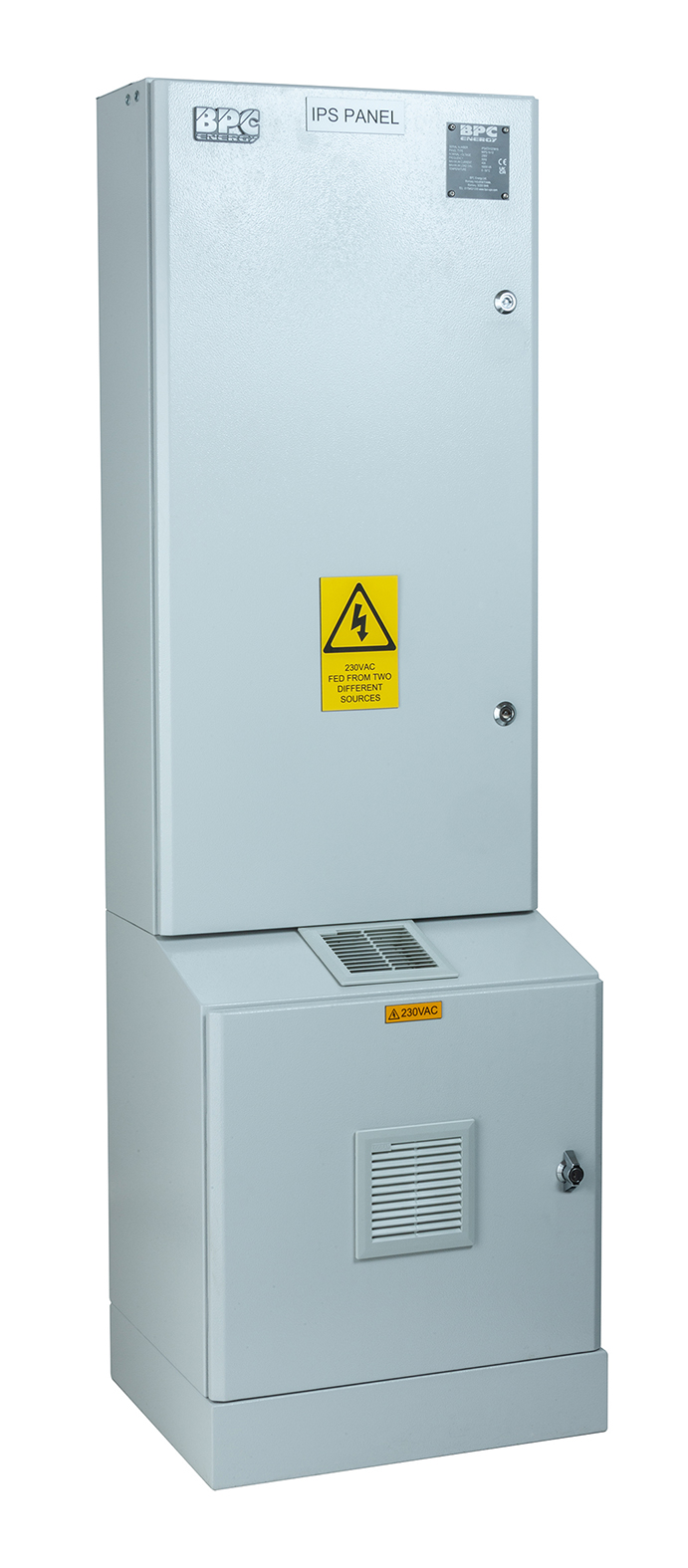

Electrical Medical IT Systems - 10kVA

BPC Energy MIPS products are suitable for medical locations like - Operating Rooms, Intensive Care Rooms, MRI Rooms, Recovery Rooms and Therapy Rooms.

BPC Energy range of Medical Isolated Power Supply (MIPS) products are electrical Medical IT systems which are isolated from earth and enable insulation maintenance faults to be monitored. These MIPS systems are used in Medical Group 2 locations, according to HTM06-01-2017, to minimise risk of failure so that, in the event of a first fault to earth, supply continuity is maintained.


The purpose of MIPS products are:

  • Providing PATIENT safety
  • Reducing electrical shock hazard
  • Reducing tripping of breakers during earth fault
  • Providing monitoring and alarms for normal and abnormal conditions
Download brochure

Features

  • Patient Safety
  • Absolute Reliability
  • Power Availability

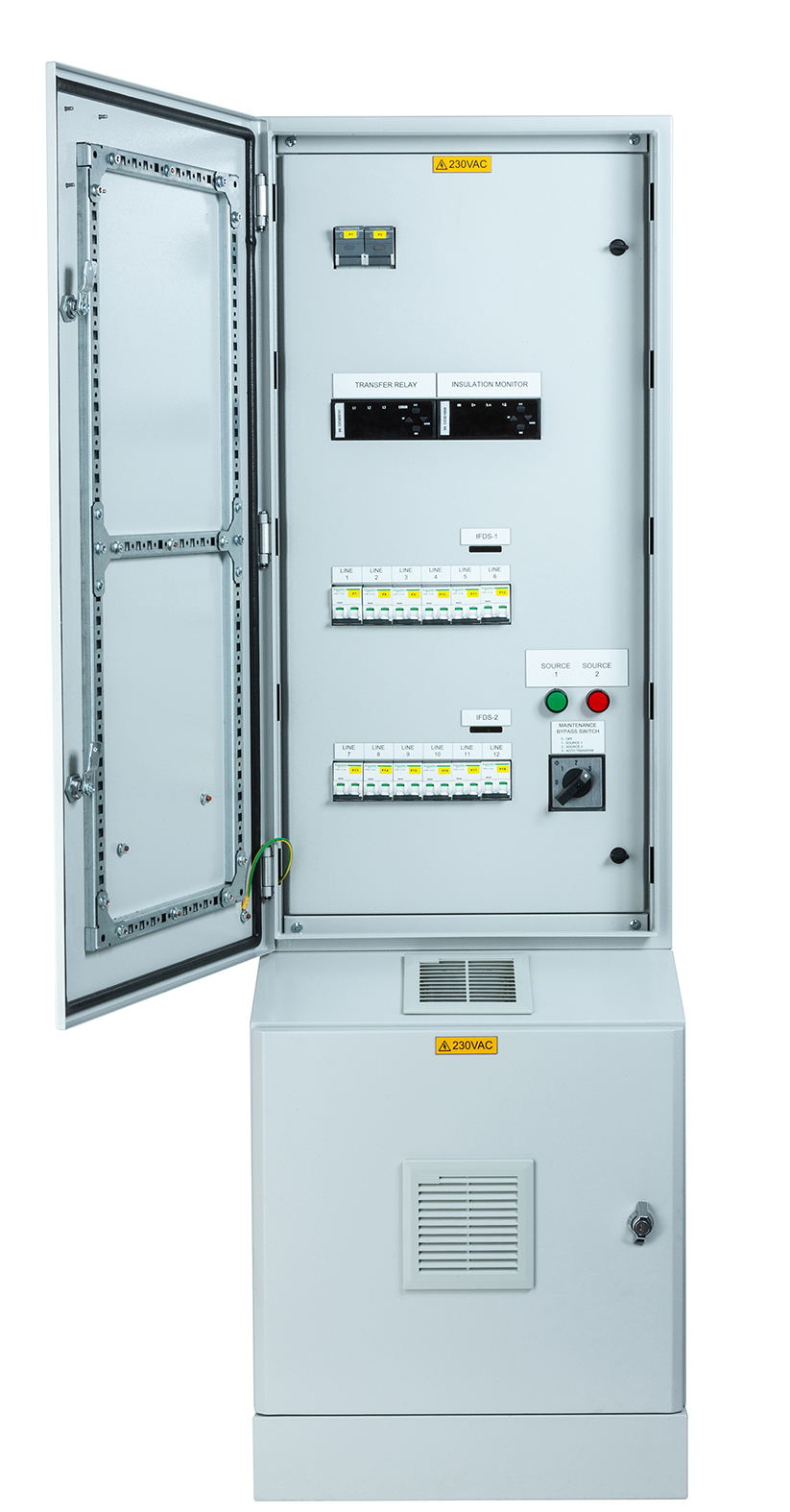

MAINTENANCE BYPASS SWITCH
The MIPS system is provided with a rotary break before make Maintenance Bypass Switch (MBS). The MBS allows the output to be connected to the ATS, or directly to the primary supply or the secondary supply, the switch also allows the output to be isolated OFF.

INSULATION MONITOR
The MIPS system is fitted with an insulation monitor and earth fault detection system.

TRANSFER RELAY
The MIPS system can by supplied by two different source supplies. The transfer system provides a fast changeover between supplies.

OUTPUT BREAKERS
The output distribution can be ordered as 6, 12, 18 or 24 way double pole MCB’s.

IP41 CONSTRUCTION
The MIPS cabinet is provided with IP41 dust filtration system at the bottom of the door with easily maintained filters.

AIR CIRCULATION
Dual fan top assembly improves the overall efficiency of the system and advances independent component heat dissipation.

EASY INSTALLATION
Top entry cable glands provide easy access to the terminals for all power, load and monitoring cable infrastructure.

FAULT DETECTION SYSTEM (FDS)
Insulation fault detection device with integrated current transformers is used for detecting insulation faults in IT systems. Insulation faulty detection system consists of test device, control and indicator device, fault evaluator and current transformer.

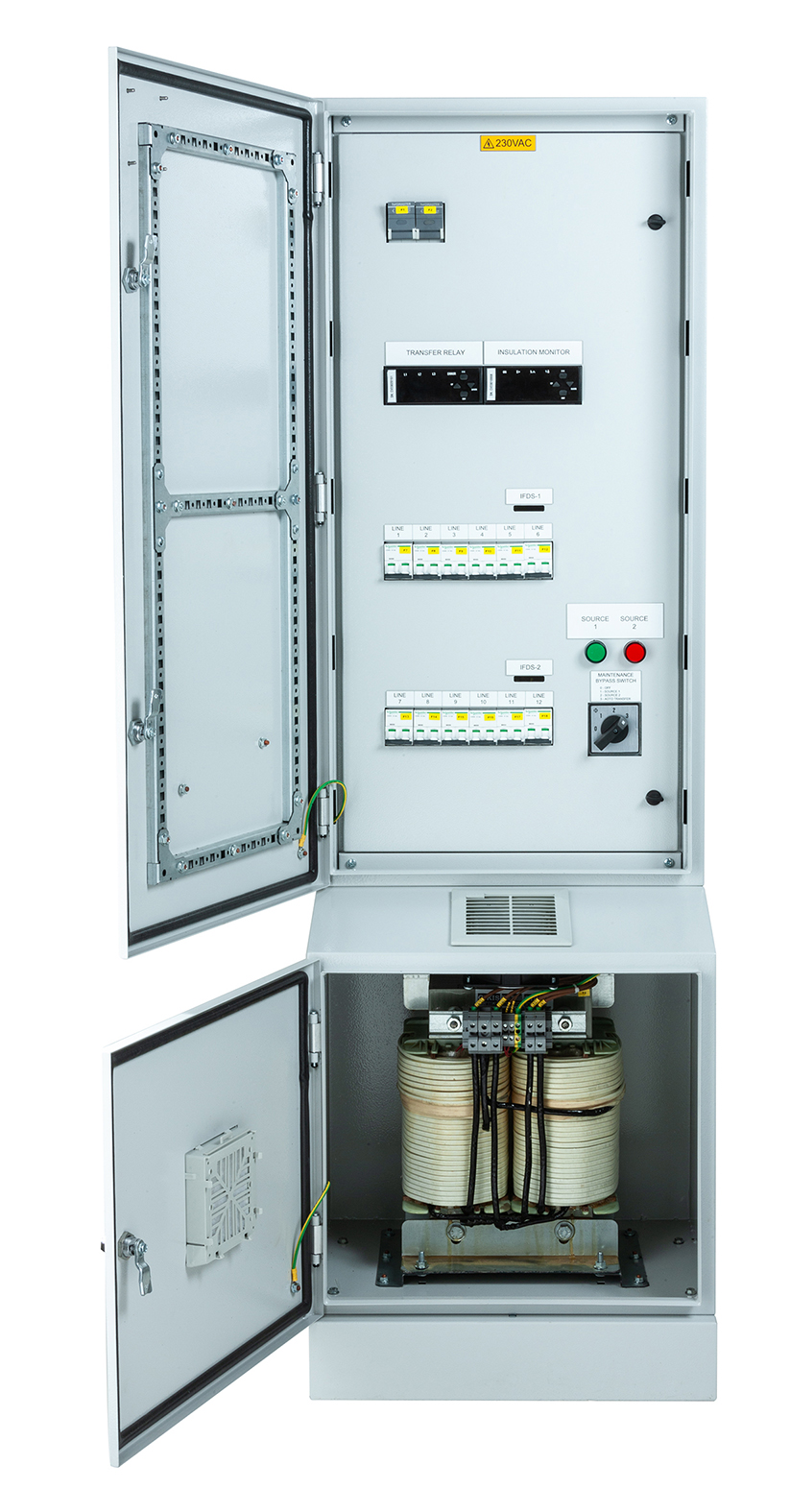

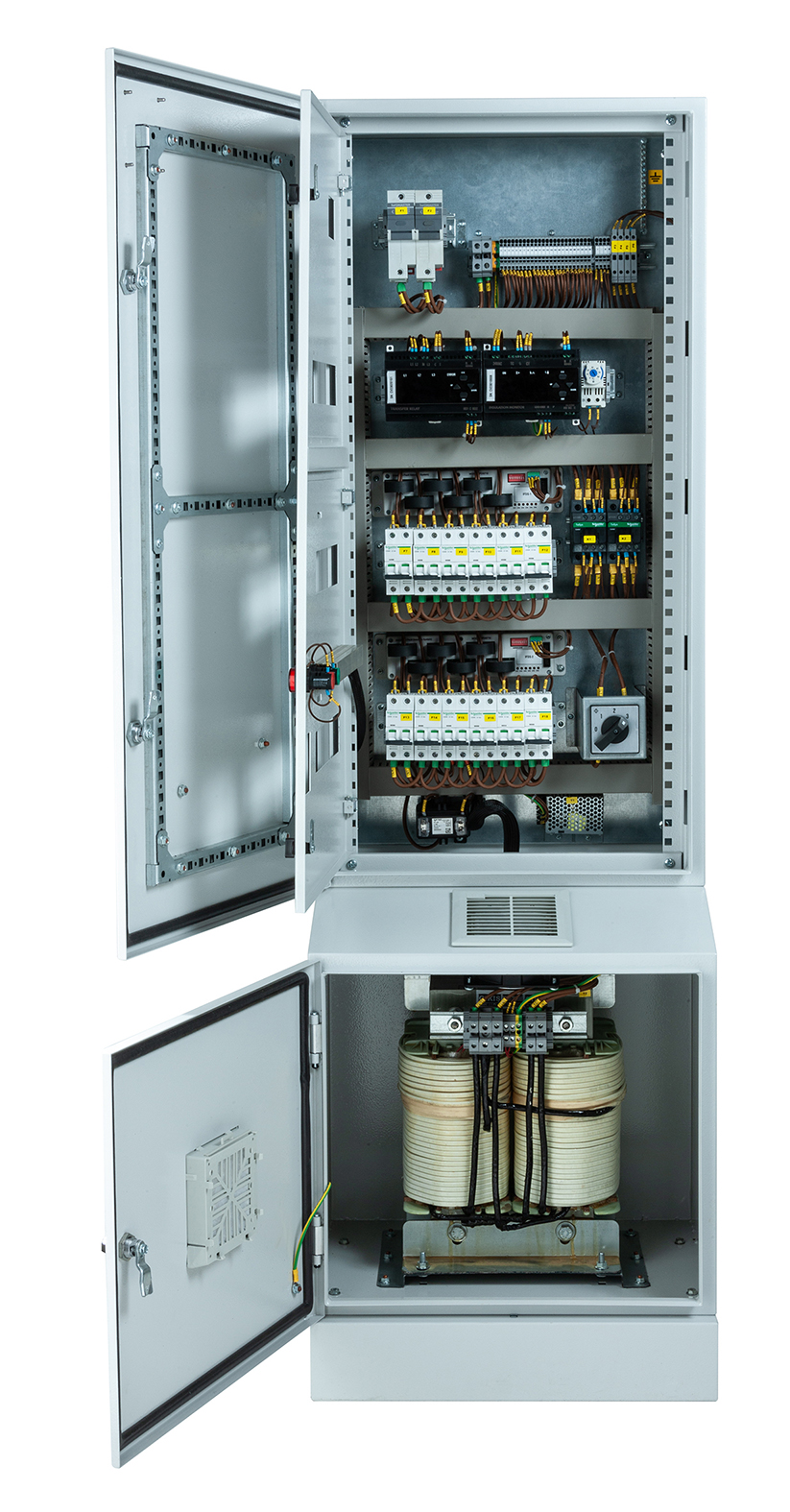

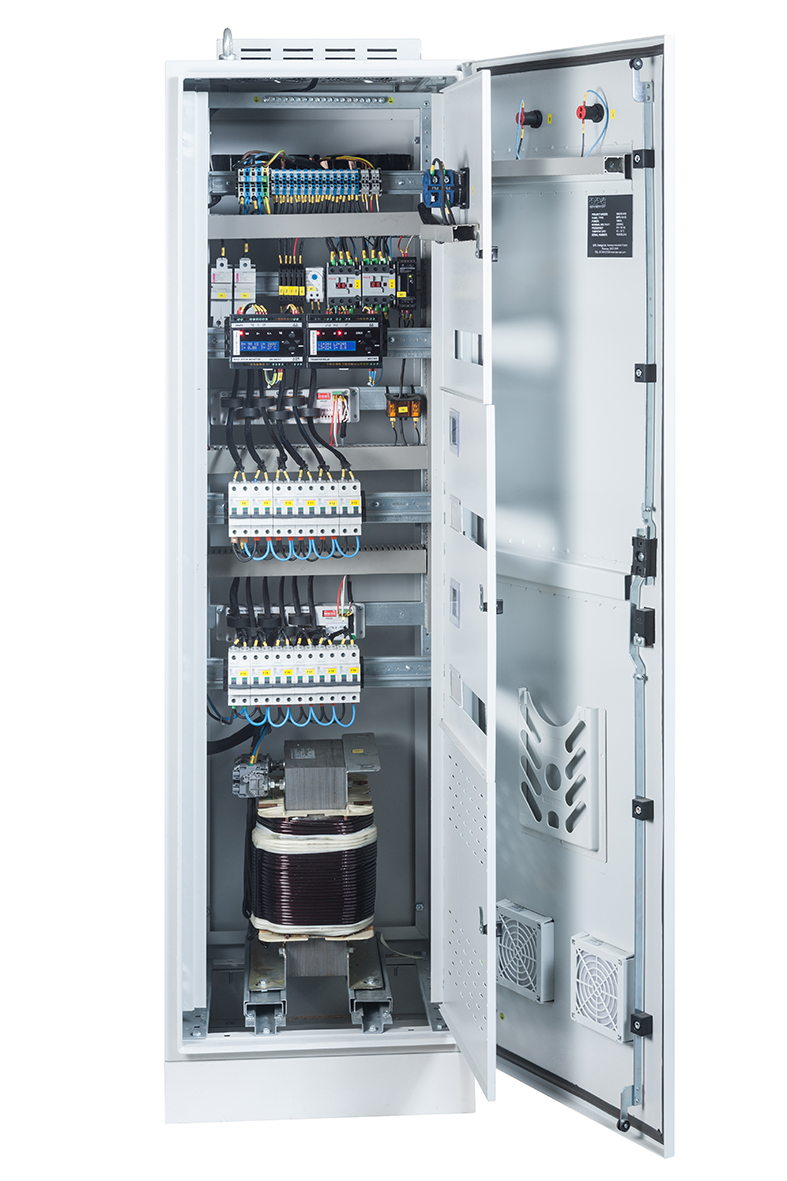

TRANSFORMER
BPC Medical Isolating Transformer is produced to comply with EN 61558-2-15 Standards for supplying critical loads. With a static screen placed between the primary and secondary windings is isolated from the fixed angle transformer core.

EXTENDED WARRANTY - PEACE OF MIND
All BPC MIPS systems come with a standard five year warranty subject to there being planned, preventative maintenance measures in place.

EQUIPOTENTIAL BONDING BUSBAR (EBB)
In Medical Locations of Group 1 and Group 2, additional earthing requirements are set out in section 710 of BS7671. These include supplementary equipotential bonding and supplementary equipotential bonding connection points along with an associated (EBB).

LOCAL ALARM PANEL (LAP)
For each MIPS system, an audible and visual alarm can be provided by the LAP system which can be installed in various medical locations ensuring power availability can be monitored by medical staff. Effective green or yellow indicators show normal and abnormal conditions. Providing the MIPS insulation, voltage, temperature and UPS alarms.

CENTRAL ALARM PANEL (CAP)
Central Alarm Panel provides the centralised monitoring of all MIPS and UPS equipment within the healthcare facility. Central Alarm Panel includes a web browser that can be accessed anywhere on the network.

OPERATING ROOM PANEL (ORP)
Touch Screen operating room control panel offers comfort for medical personnel enabling full control of the environmental
conditions and medical devices. Surgical teams can communicate with other medical professionals using a built-in hands-free phone with high voice
quality.

MODEL MIPS - 10-6 MIPS - 10-12 MIPS - 10-18 MIPS - 10-24
Power Rating kVA 10 10 10 10
INPUT
Output Voltage 230VAC
Frequency Range 50 Hz / 60 Hz
Isolation Level 3KV / 1MIN
OUTPUT
Output Protection MCB
Output Distribution 6 way 12 way 18 way 24 way
Alarm Output Insulation Fault / Overload / Over Temperature
Functional Test Advanced Insulation Fault
Enclosed Leakage Current ‹0.5Ma
Isolation Fault Detection Period ‹1sec
GENERAL
Cabinet Protection IP41
Operating Temperature 0°C / 50°C
Storage Temperature -15°C / 70°C
Ventilation Dual Fan
Management Software Isolation resistance by LCD screen
Colour RAL9003 / RAL7035
Transfer System ATS via Contactor
Transfer Time ‹50ms
Response Rate 50 - 500 kΩ
Overall Heat Dissipation ‹500W
Dimensions (mm) WxDxH 500 x 500 x 1750
Net Weight (kgs) 134 135
