PowerPro ELMOD

Single and Three Phase Input and Single Phase Output Static Inverter

4kVA - 24kVA

The PowerPro EL ranges are Static Inverter Systems designed specifically for emergency lighting applications according to European BS EN50171, EN50272-2 and ICEL 1009 specification.

The PowerPro ELMOD is a high performance single and three phase input and single phase output modular Static Inverter ranging from 4kVA to 24kVA using hot-swap power modules.

Download brochure

Features

  • Single/Three Phase Input & Single Phase Output
  • 4kVA - 24kVA
  • Hot-Swap Power Modules

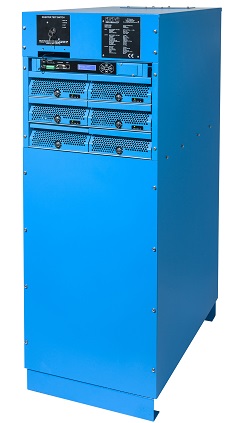

The Power Pro EL Modular Series is an emergency lighting Inverter that can be configured between 4 – 24kVA with incremental steps of 4kVA power.
Designed with high fault clearance capability and operation with high inrush light fittings.

The adaptability of the ELMOD system provides three modes of operation as standard and the ability to convert from single phase input to three phase input without modification.

Low MTTR (Mean Time To Repair) is achieved with all electronic components in modular format and complete front access.

  • 24kVA power cabinet, built up of 4kVA power modules
  • 1/1 and 3/1 configuration display

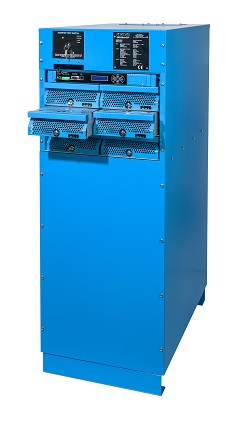

  • Hot-Swap power modules
  • True sinewave output
  • Output configurable to 3 modes of operation (Changeover / Inverter / Non-Maintained)
  • Deep discharge protection
  • Reverse battery polarity protection

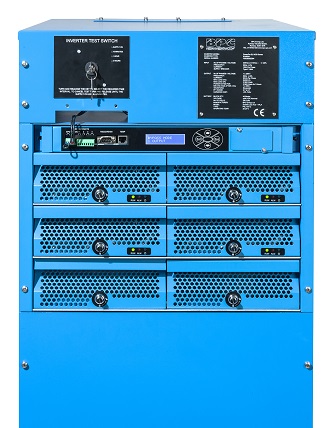

  • Front access for maintenance and repair
  • Battery short circuit protection
  • Multiple communication options RS232, RS485, 8 dry port contacts, TCP/IP Adapter for local and remote communication
MODEL EL MOD/4 EL MOD/8 EL MOD/12 EL MOD/16 EL MOD/20 EL MOD/24
Power Rating kVA/kW 4 / 3.6 8 / 7.2 12 / 10.8 16 / 14.4 20 / 18 24 / 16
INPUT
Nominal Voltage 220/230/240 Vac (1Ph+N+PE) 220/230/240 Vac (1Ph+N+PE) or (3Ph+N+PE) 220/230/240 Vac (1Ph+N+PE) 220/230/240 Vac (1Ph+N+PE) or (3Ph+N+PE)
Voltage Range +25%
Frequency Range 50Hz +10%, 60Hz +10%
OUTPUT
Nominal Voltage 220/230/240 Vac
AC Voltage Regulation +1%
Frequency Range +4% (+0.2% battery supply)
Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion (Linear Load) <1%
Transfer Time <0ms
Waveform Sinewave
Load Circuits 1
Overload 120% continuous, 150% for 10 mins, 175% for 1 min
Mode Operation Changeover, Inverter and Non-Maintained selectable
Maintained / Non-Maintained Maintained and Non-Maintained (standard)
BATTERY
Battery Type VRLA AGM Maintenance Free Sealed Lead Batteries, Nickel Cadmium or Plante
Internal / External 1 or 3 hour external
End of Life to EN50171 Included
Charge Battery to 80% within 12 hours Included
Deep Discharge Protection Included
DC Earth Leakage Optional
LIGHTING CONTROL INTERFACE
External Mains Fail Test Connection Included
Non-Maintained Mode Connection** Optional
FAR Connection** Optional
External Phase Fail Connection** Optional
24Vdc Supply for External Contactor Optional
KNX / DALI / NODE Interface Optional
Mains Fail Test Button Key switch with 10min / 1hr / 3hr time delay included
Volt Free Contacts 3
GENERAL
Operating Temperature -5°C to 40°C / <1000m above="" sea="" leve="" --1000m--="">
Operating Humidity <93% non-condensing
Acoustic Noise <55db at="" 1="" metre="" --55db--="">
Protection Degree IP21
Dimensions (mm) WxDxH 510 x 850 x 1340
Weight (kgs) Excluding Batteries 107 114 121 128 135 142

** Only applicable if Non-Maintained Contactor Option fitted
