The BPC PowerGem Plus RT is a unique range of high-density UPS systems that can be installed whether on the floor in tower form or in rackmount cabinet configurations powering a wide range of applications.
The PowerGem is an ultra-efficient system resulting in improved operational performance up to 97% in ECO mode, 92% in inverter mode and over 90% in battery mode, providing a much greener product with smaller battery and longer autonomy backup times.
The range is equipped with the latest digital signal processor (DSP) technology with versatile features demanded by IT managers enabling integration into all types of networking environments.
Rack/Tower Configuration

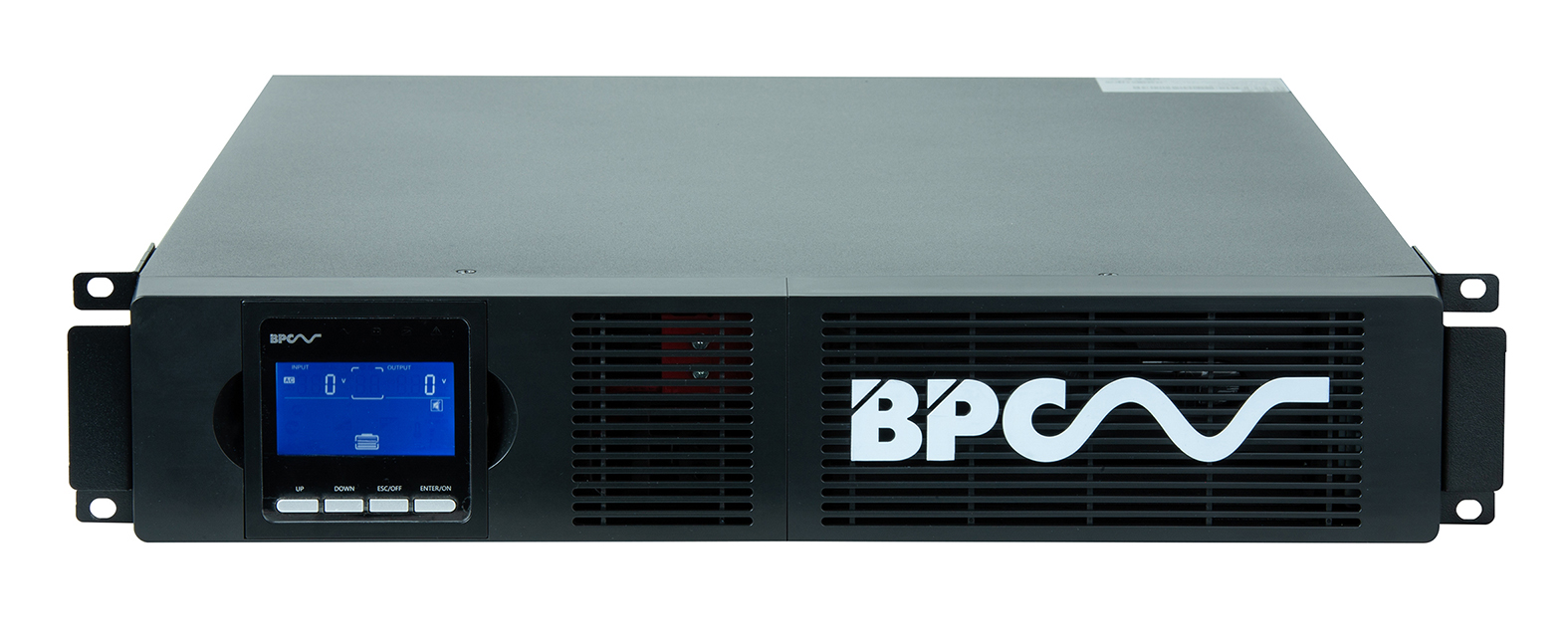

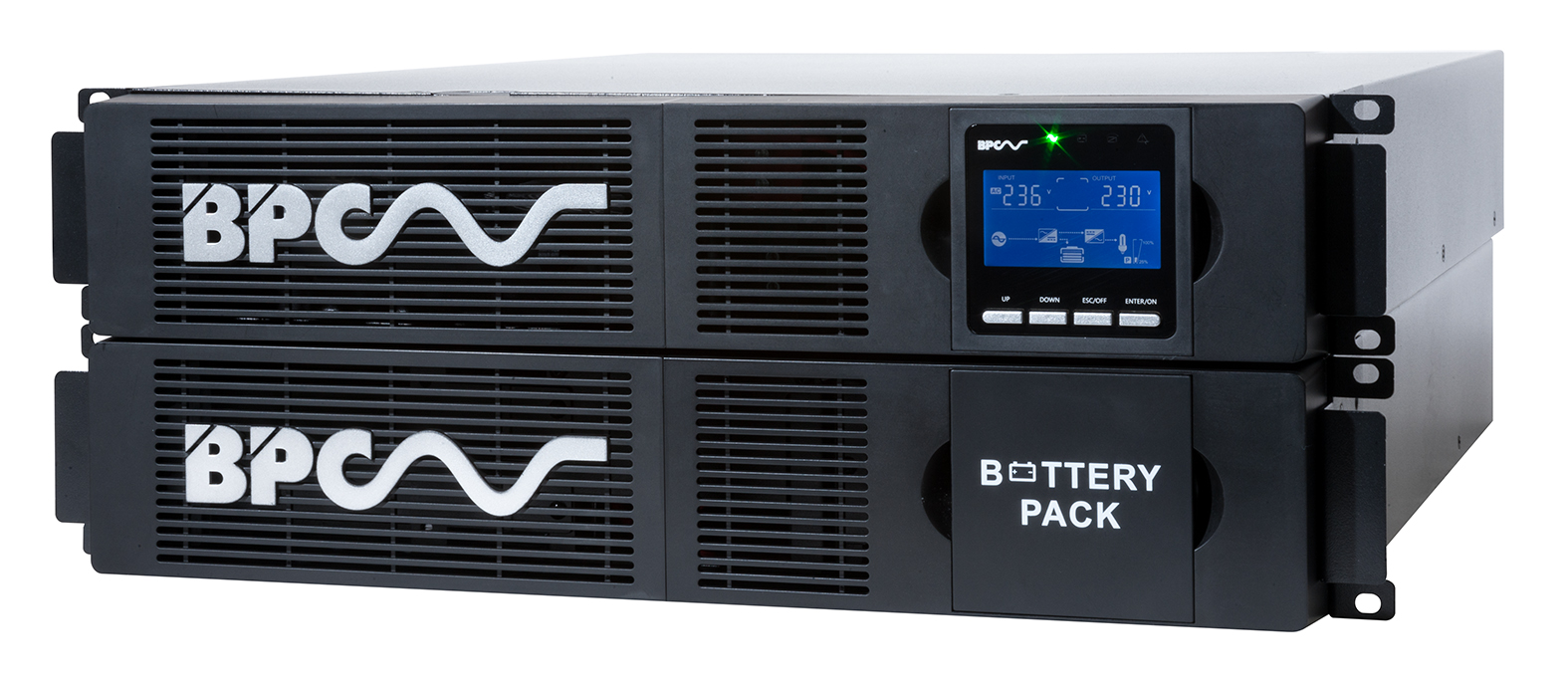

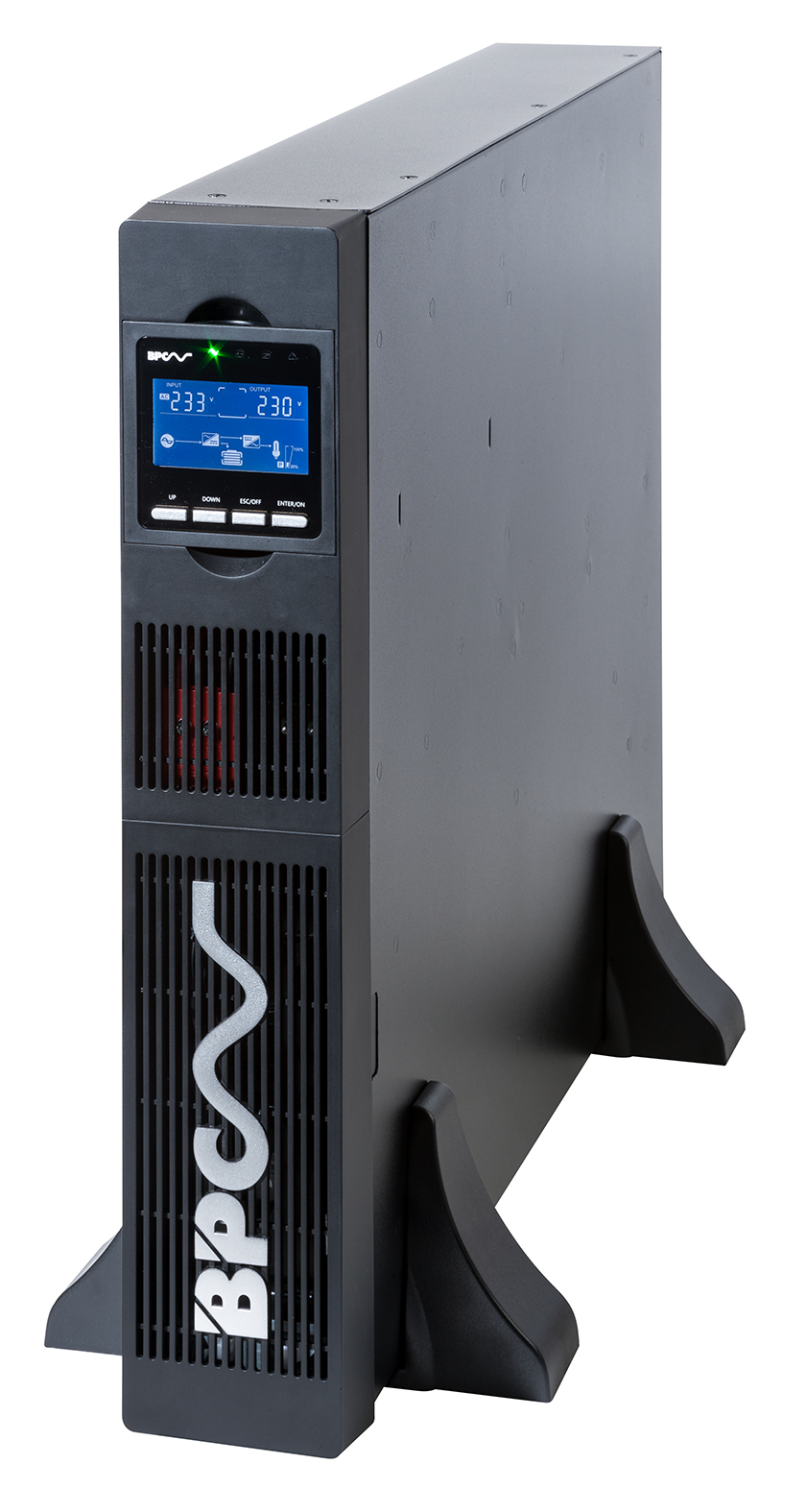

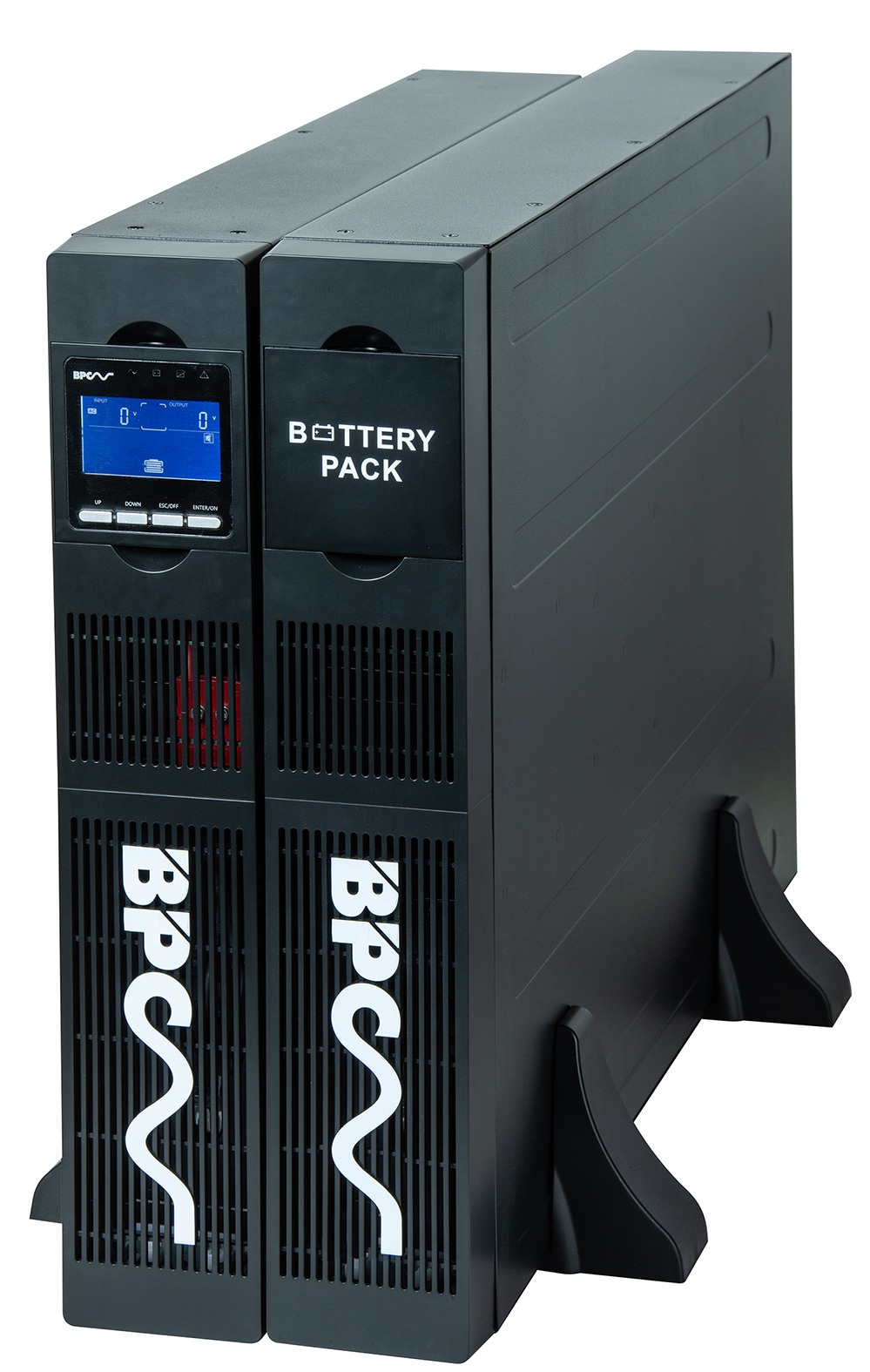

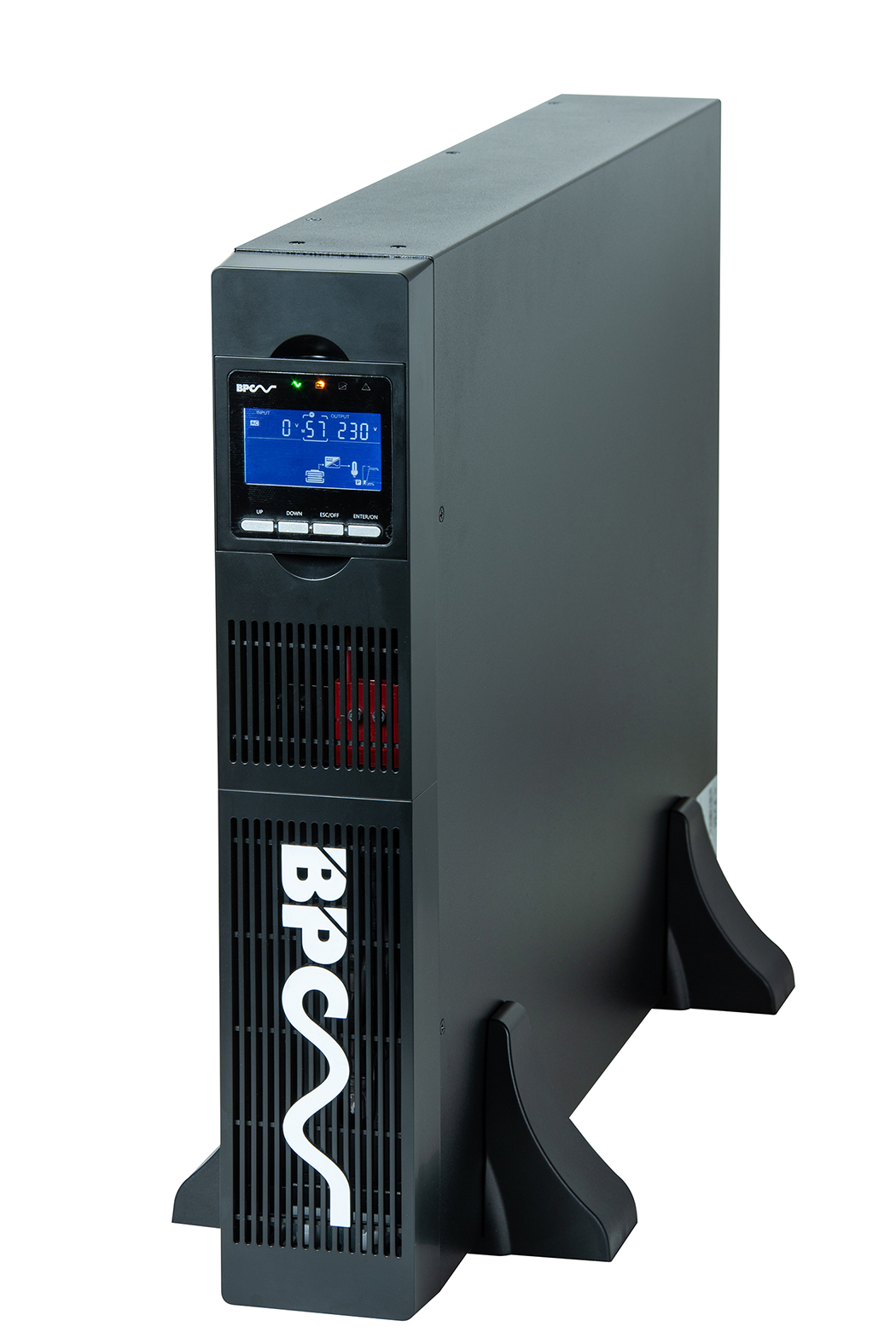

The PowerGem Plus RT Single Phase Uninterruptible Power Supply range is extremely versatile and designed to have the flexibility to be used as a floor-standing tower type UPS or to be integrated into the client's 19" rack cabinet.

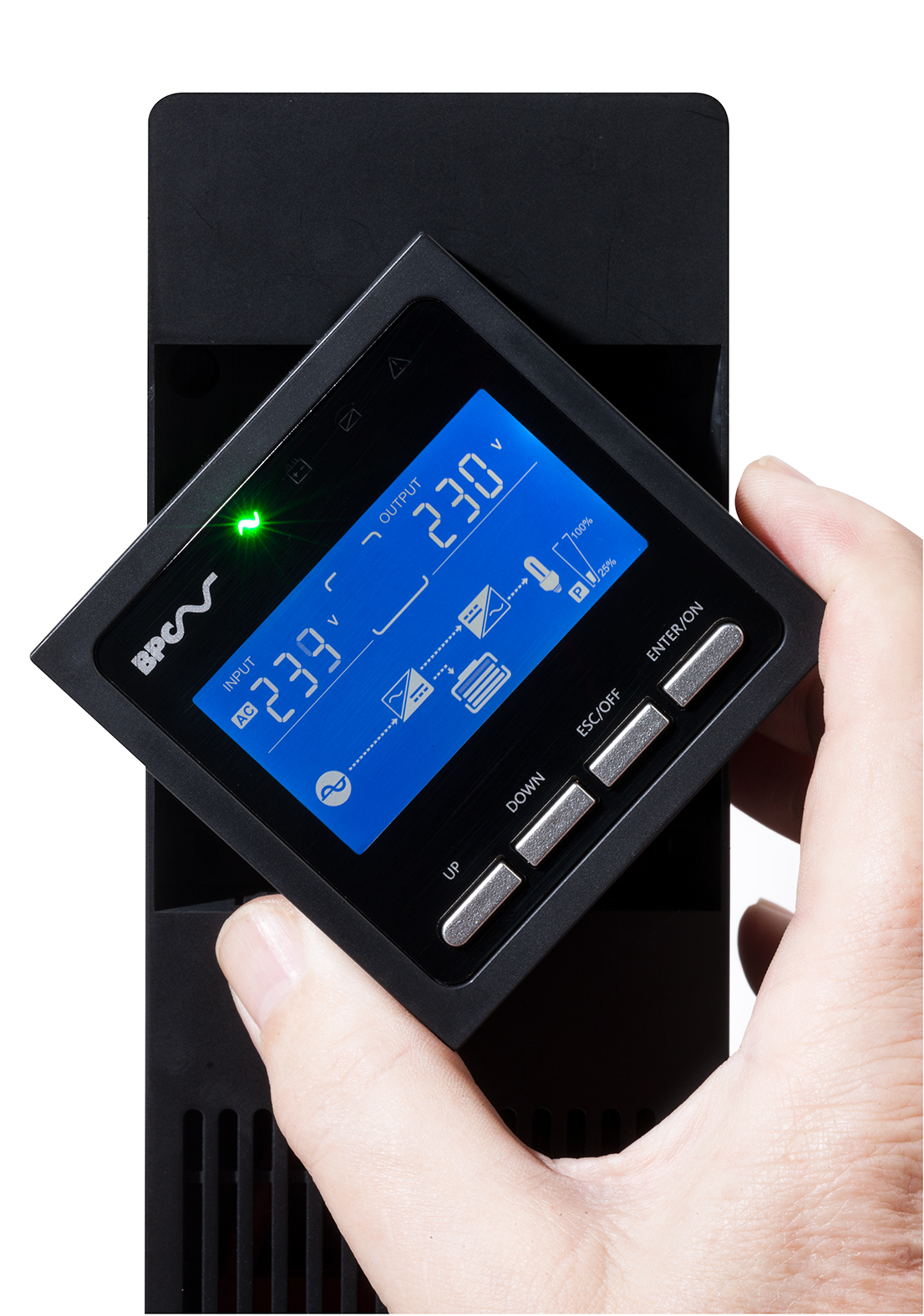

The enhanced programmable LCD display can be manually positioned to suit both modes of operation by simply removing and rotating the display panel.
Unity Power Factor
The PowerGem Plus RT range adopts DSP and highly efficient electronic IGBT inverter technology providing one of the highest power density ratios in the UPS industry. Advanced inverter circuitry delivers a unity power factor maximising power output.
Programmable Frequency Converter
The PowerGem Plus RT range may be used as a frequency converter. Simple programming through the front LCD panel will allow you to lock the output frequency at 50Hz or 60Hz to suit frequency-sensitive equipment.
Parallel Ready N=X Redundancy
The PowerGem Plus RT 6-10KVA models are able to be connected directly to the user's distribution system. Models can be used in simple parallel operation with up to 4 units, allowing scalability for increased power capacity and improved reliability due to the redundancy operation. The parallel system can be connected to a common battery if required.
Environmentally Friendly Energy Saving
The intelligent microprocessor-based control system allows for the very low power consumption offered by the interactive ECO mode which provides efficiencies as high as 97%. PowerGem Plus RT switches instantaneously to online double conversion operation automatically when the mains become unstable and fluctuate outside the normal frequency and voltage parameters.
| Model | PGPRT 1000 (L) | PGPRT 2000 (L) | PGPRT 3000 (L) | PGPRT 6000 | PGPRT 10K |
| Power Rating VA / Watts | 1000VA / 1000W | 2000VA / 2000W | 3000VA / 3000W | 6kVA / 6kW | 10kVA / 10kW |
| Input | |||||
| Nominal Voltage | 200 / 208 / 220 / 230 / 240 VAC | 220 / 230 / 240 VAC | |||
| Voltage Range | 110 - 300 Vac (Load dependent) | 120 - 276 Vac (Load dependent) | |||
| Frequency Range | 40 - 70Hz | 42 - 55Hz at 50Hz / 54 - 66Hz at 60Hz (auto sensing) | |||
| Power Factor | >0.99 @ 100% load | ||||
| Output | |||||
| Nominal Voltage | 200 / 208 / 220 / 230 / 240 Vac | 220 / 230 / 240 Vac | |||
|
AC Voltage Regulation (Battery Mode) |
+ 1% | ||||
|
Frequency Range (Synchronised Range) |
47 - 53Hz or 57 - 63Hz | 45 - 65Hz (auto select) | |||
|
Frequency Range (Battery Mode) |
50/60Hz + 0.1%Hz | 50 / 60Hz + 0.1Hz | |||
| Crest Factor | 3:1 | ||||
|
Harmonic Distortion (Linear Mode) |
<3% THD | ||||
| Transfer Time | Zero | ||||
| Wavefrom | Pure Sinweave | ||||
| Efficiency | |||||
| AC Mode | >88% | >92% | >92% | >92.5% | |
| ECO Mode | >95% | >97% | >97% | >97.3% | |
| Battery Mode | >86% | >88% | >90% | >89% | >88% |
| Battery | |||||
| Battery Type | VRLA AGM Sealed Lead Acid Maintenance Free Batteries | ||||
| Battery DC Voltage | 24 or 36 Volts | 48 Volts | 72 Volts | External matching battery cabinet - 192 / 216 / 240 Volts | |
| Typical Recharge Time | 4 hours recover to 90% capacity | ||||
|
Charging Current (max.) Standard Models |
1A | 10A adjustable by LCD display | |||
|
Charging Current (max.) Long Runtime Models |
12A adjusted by LCD display | - | - | ||
| General | |||||
| Operating Humidity | 20 - 90% RH @ 0-40 (non-condensing) | ||||
| Accoustic Noise Level | <50 db="" at="" 1="" metre="" --50--=""> | <55 db="" at="" 1metre="" --55--=""> | |||
| Management Software | Included | ||||
|
Standard Model Dimensions (mm) W x D x H |
438 x 325 x 88 (24vdc) / 438 x 460 x 88 (36vdc option) | 438 x 460 x 88 | 438 x 600 x 88 |
438 x 725 x 88 BCRT20N009 Battery Cabinet = 438 x 585 x 133 |
|
|
Standard Model Net Weight (kgs) |
11.3 | 19.1 | 26.2 |
15 BCRT20N009 = 64 |
16 BCRT20N009 = 64 |
|
Long Runtime Model Dimensions (mm) W x D x H |
438 x 305 x 88 | 438 x 435 x 88 | - | - | |
|
Long Runtime Model Net weight (Kgs) |
5.6 | 8.3 | 8.6 | - | - |
