PowerSolar Inverters

Pure Sinewave Systems

The BPC PowerSolar Inverter combines functions of an inverter, solar charger and battery charger to offer uninterruptible power.

Download brochure

Features

  • Solar
  • Green
  • Compact

The BPC PowerSolar Inverter combines functions of an inverter, solar charger and battery charger to offer uninterruptible power. The LCD display offers comprehensive user-configurable information such as battery charging current, AC/Solar charger priority, and acceptable input voltage depending on the application.

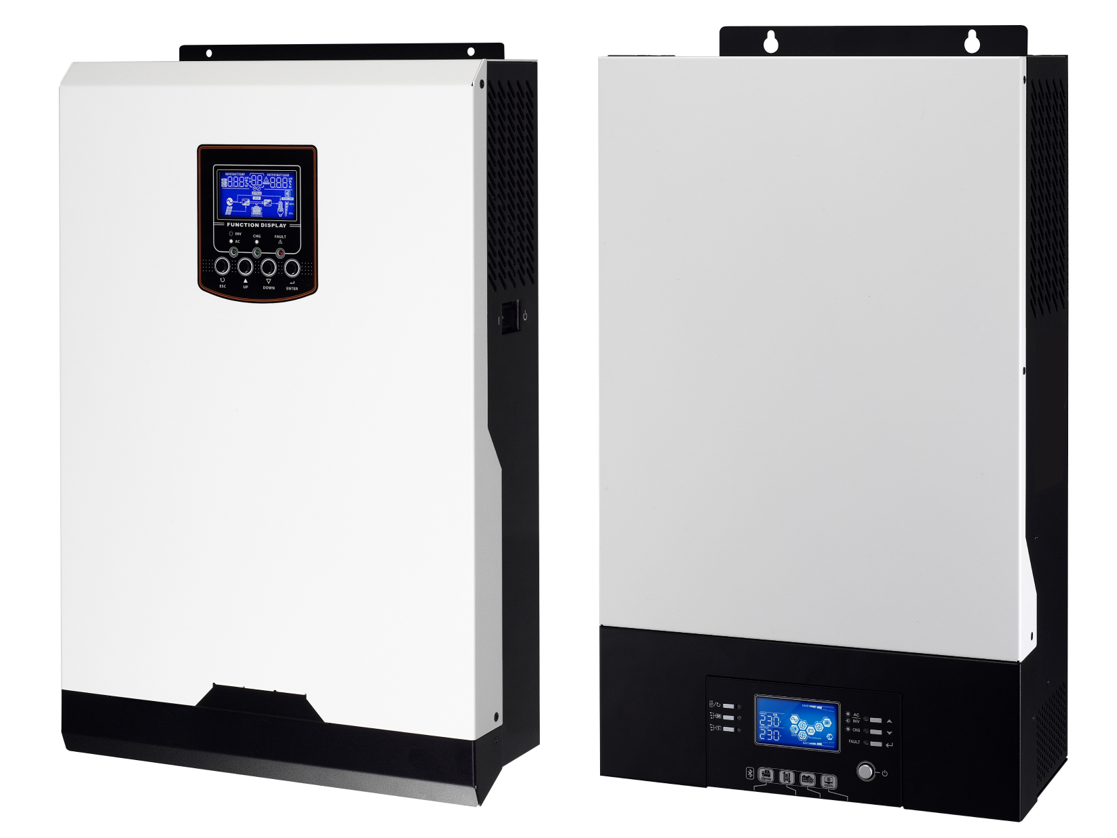

The BPC PowerSolar Inverter series includes the following options:

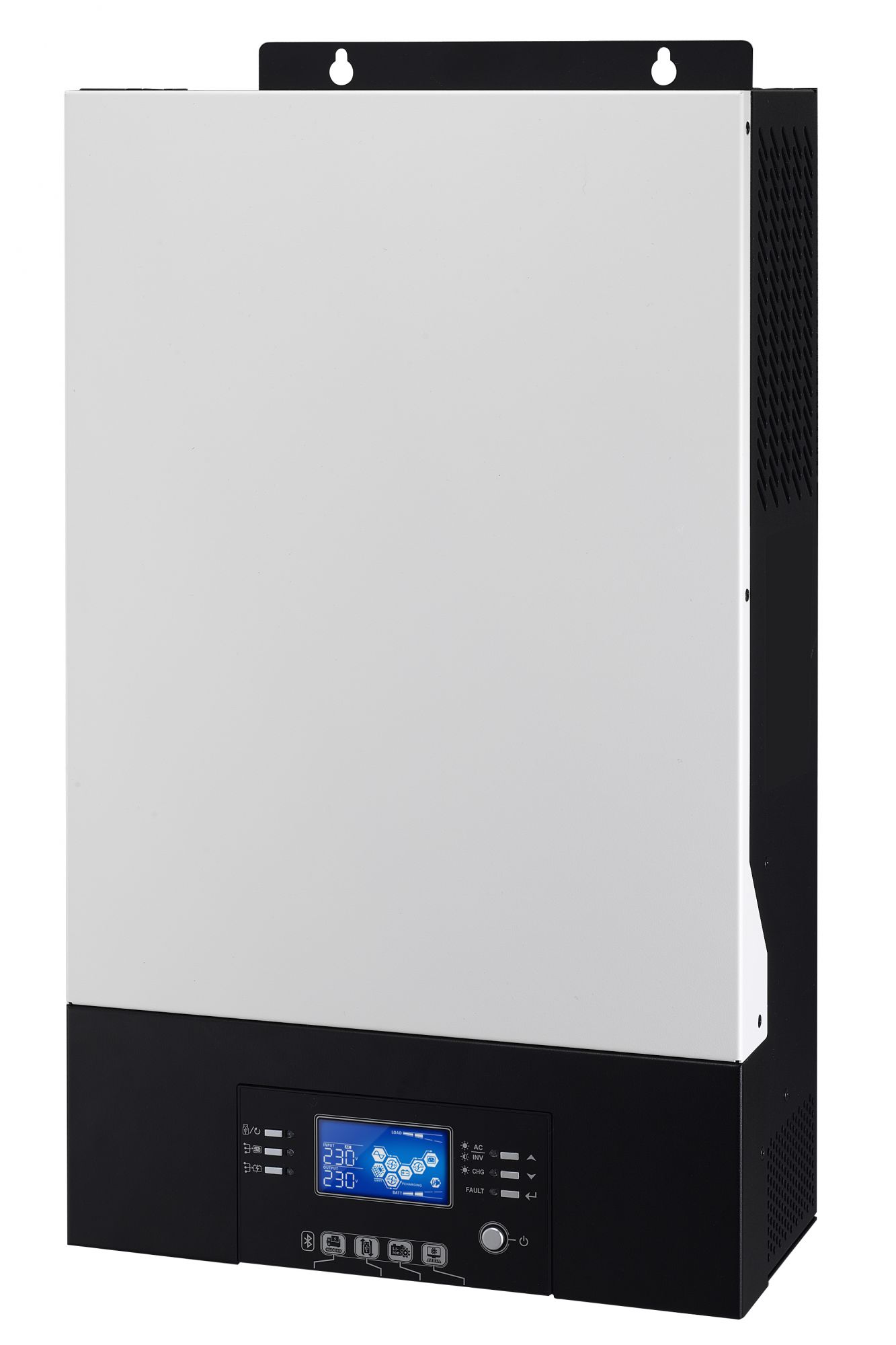

MPPT – Maximum Power Point Tracker system
Its function is to maximize the energy available from the connected solar module arrays at any time during its operation.

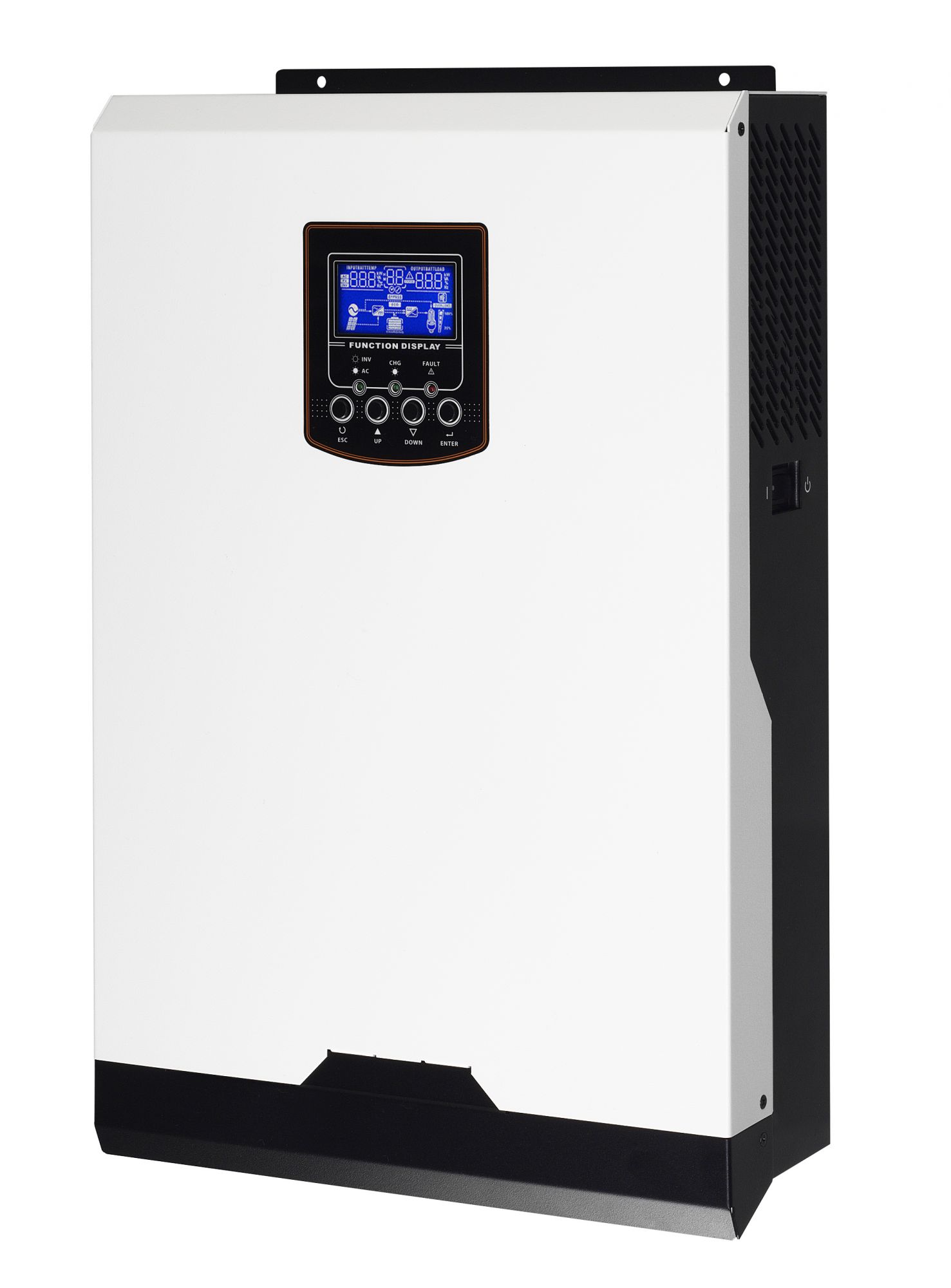

PWM – Pulse Width Modulation
Used in inverters to give a steady output voltage irrespective of the load. PWM Inverters have additional circuits for protection and voltage control.

MODEL PSOLAR - P3 PSOLAR - P5
Power Rating VA / W 3000 / 3000 5000 / 5000
INPUT
Voltage 230 VAC
Selectable Voltage Range 170 - 280 VAC (for personal computers); 90 - 280 VAC (for home appliances)
Frequency Range 50 Hz / 60 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode) 230 VAC ±5%
Surge Power 6000VA 10000VA
Efficiency (Peak) 90% - 93%
Transfer Time 10 ms (for personal computers); 20 ms (for home appliances)
Waveform Pure Sinewave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 80 VDC 105 VDC
Maximum PV Array Power 1200W 2400W
MPP Range @ Operating Voltage N/A N/A
Maximum Solar Charge Current 50 A 50 A
Maximum AC Charge Current 25 A 60 A
Maximum Charge Current 70 A 110 A
ENVIRONMENT
Humidity 5% to 95% relative humidity (non-condensing)
Operating Temperature -10˚C to 50˚C
Storage Temperature -15˚C to 60˚C
PHYSICAL
Dimensions (mm) W x D x H 285 x 100 x 334 300 x 100 x 440
Net Weight (kgs) 6.3 8.5
Communication Interface USB / RS232
MODEL PSOLAR - M3 PSOLAR - M5
Power Rating VA / W 3000 / 3000 5000 / 5000
Parallel Capability Up to 9 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 110 - 280 vac
Frequency Range 50 Hz / 60 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode) 230 VAC ±5%
Output THDv ≤3% for Linear Load, ≤8% for non-linear load
Surge Power 6000VA for 5 sec 10000VA for 5 sec
Efficiency (Peak) 93% at Line Mode, 90% at Battery Mode
Transfer Time 0 ms
Waveform Pure Sinewave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 34 VDC 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 145 VDC
Maximum PV Array Power 1500W 4000W
MPP Range @ Operating Voltage 30 - 115 VDC 60 - 115 VDC
Maximum Solar Charge Current 60 A 80 A
Maximum AC Charge Current 60 A
Maximum Charge Current 120 A 140 A
ENVIRONMENT
Humidity 5% to 95% relative humidity (non-condensing)
Operating Temperature 0˚C to 55˚C
Storage Temperature -15˚C to 60˚C
PHYSICAL
Dimensions (mm) W x D x H 303 x 140 x 525
Net Weight (kgs) 13 13.5
Communication Interface USB / RS232 / RS485 / Bluetooth / Dry Contact
